Compartment Sill Plate Replacement - Rear

Compartment Sill Plate Replacement - Rear

Removal Procedure




1. Open the lift gate.
2. Gently pull up on the trim plate to remove the trim plate.

Installation Procedure

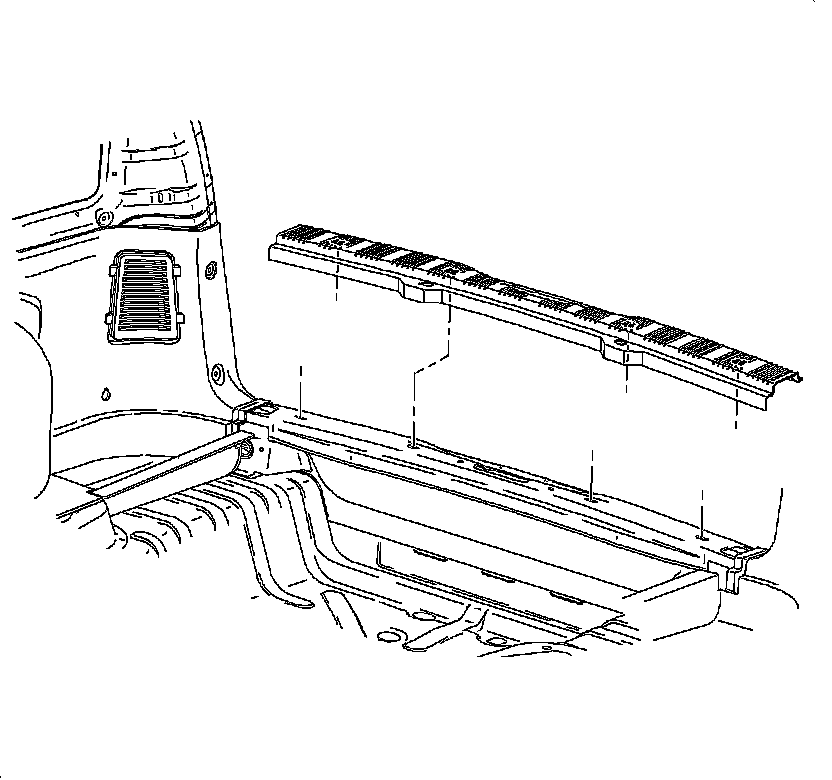

1. Position the trim plate onto the lift gate sill and push at the attaching clip locations to install the trim plate.
2. Reposition the weatherstrip over the trim plate.
3. Close the lift gate.
