Chart 21
Chart 21

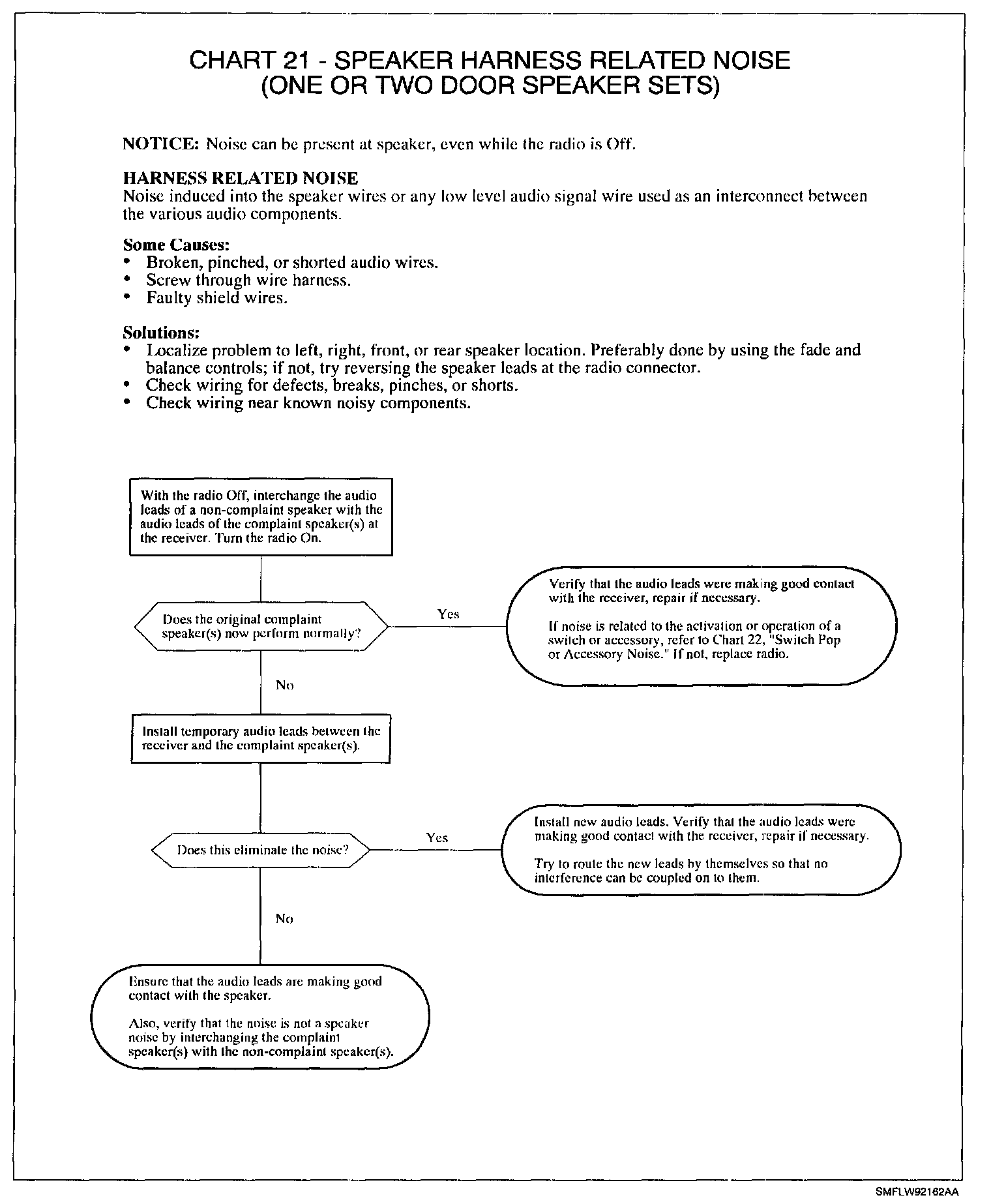

Diagnostic Chart 21:
CHART 21 - SPEAKER HARNESS RELATED NOISE (ONE OR TWO DOOR SPEAKER SETS)
