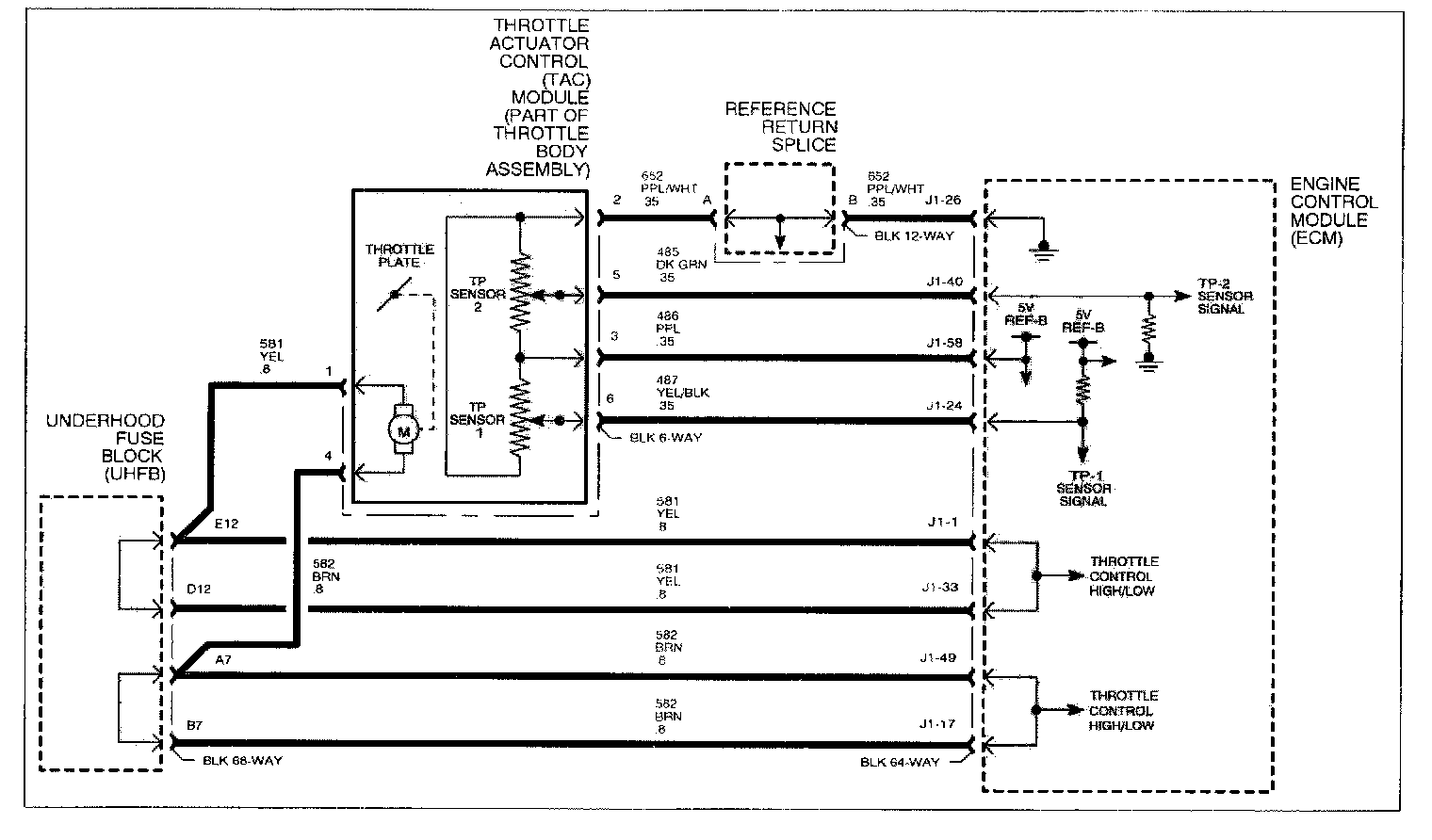

Wiring Diagram:

P2119- THROTTLE CLOSED POSITION PERFORMANCE
The throttle actuator control (TAC) module contains a direct current actuator motor controlled by the ECM used to move the throttle plate (in either direction) and two throttle position sensors to determine throttle plate position. The throttle plate is held at a 7% rest position to a mechanical stop by a constant force return spring. This spring will hold the throttle plate to the stop when there is no current flowing to the actuator motor. There is another return spring, which creates constant force on the throttle plate only when the throttle plate is moved towards the full closed position. The ECM will monitor both the actuator motor and TP sensors for circuit faults, as well as check to make sure both springs can return the throttle to the 7% position no matter where the throttle plate remains.

The ECM will go through a throttle relearn procedure 29 seconds after the ignition is turned On with the engine Off as long as certain conditions have been met. During this learn procedure, the ECM will move the throttle from the rest to full closed position, then to around 14%. During this period, the TP sensors lower limits, rest position of the TP sensors, the actuator motor force to overcome both spring pressures as well as the return rates of both springs are learned. If any of these parameters are out of range, a DTC will be set DTC P2119 will set if the throttle plate does not return within a certain amount of time to the 7% idle air position during a throttle relearn procedure or during the keyup closed throttle test indicating the throttle plate is sticking or the throttle plate return springs have weakened.

DTC PARAMETERS
DTC P2119 will set if the throttle plate is 3% above the throttle rest position for longer than 0.56 seconds when:
^ Throttle plate rest position has been commanded
^ Currently in throttle learn mode OR during a once per key~up closed throttle test
^ Engine speed is less than 250 rpm
^ Vehicle speed = 0 mph
^ ECT is between 5° and 100°C (41°and212°F)
^ IAT is greater than 5°C (41°F)
^ Accelerator pedal angle is less than 15%
^ Battery voltage is greater than 10 volts

DTC P2119 diagnostic runs during a throttle relearn procedure or key up closed throttle test when the above conditions have been met.

P2119 is a type A DTC

NOTE: The MIL will illuminate after 5 seconds.

DIAGNOSTIC AIDS

IMPORTANT: If a TP sensor 1 or 2 DTC is set, diagnose that DTC first.

If DTC P2119 is set, the ECM will default to one of the two limp home modes (random injector disable with engine speed limited to 1800 rpm). The REDUCED POWER telltale will be illuminated and the ECM will remain in this condition for the entire ignition cycle even if the fault is corrected.

Possible causes of DTC P2119:
^ Weak throttle body return springs
^ Throttle plate sticking due to carbon build-up
