A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Diagnostic Trouble Code Description
>>
HVAC Systems
HVAC Systems
Diagnostic Trouble Code (DTC) List:

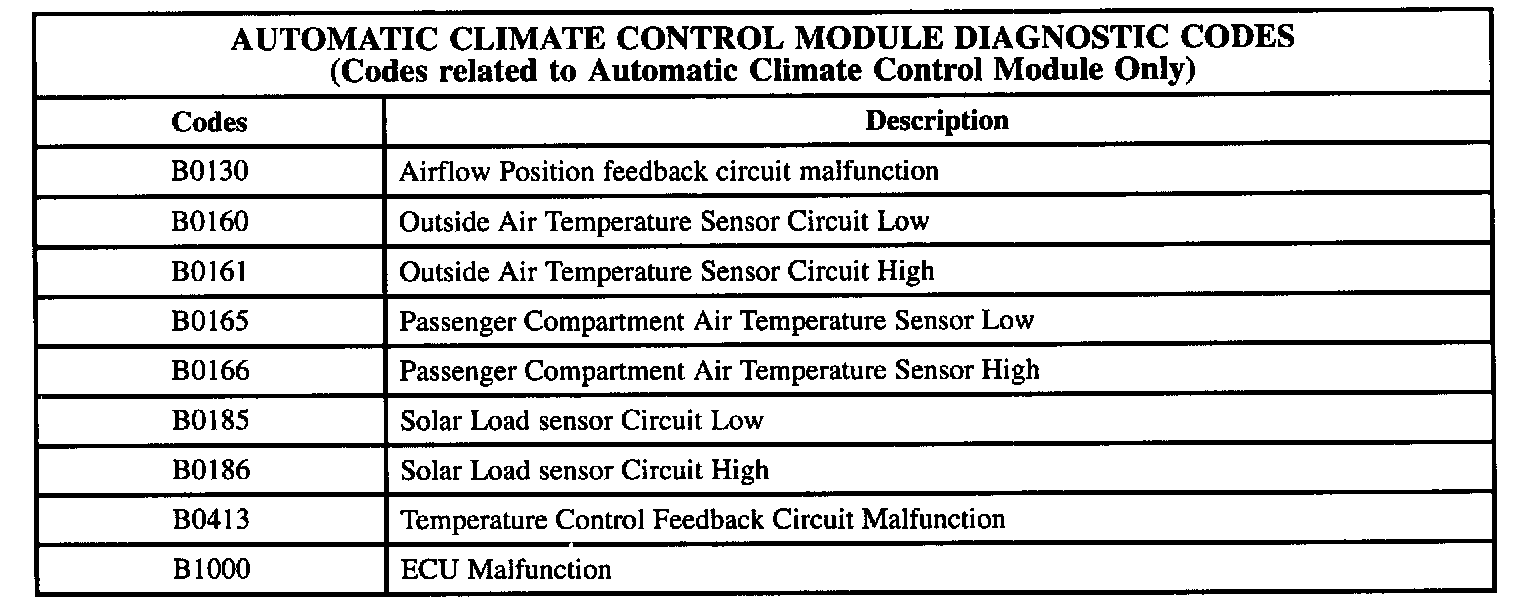

The table lists HVAC Control Module Diagnosis Codes related to the Automatic Climate Control.
