B2577

B2577 - Headlamp Control Circuit Low

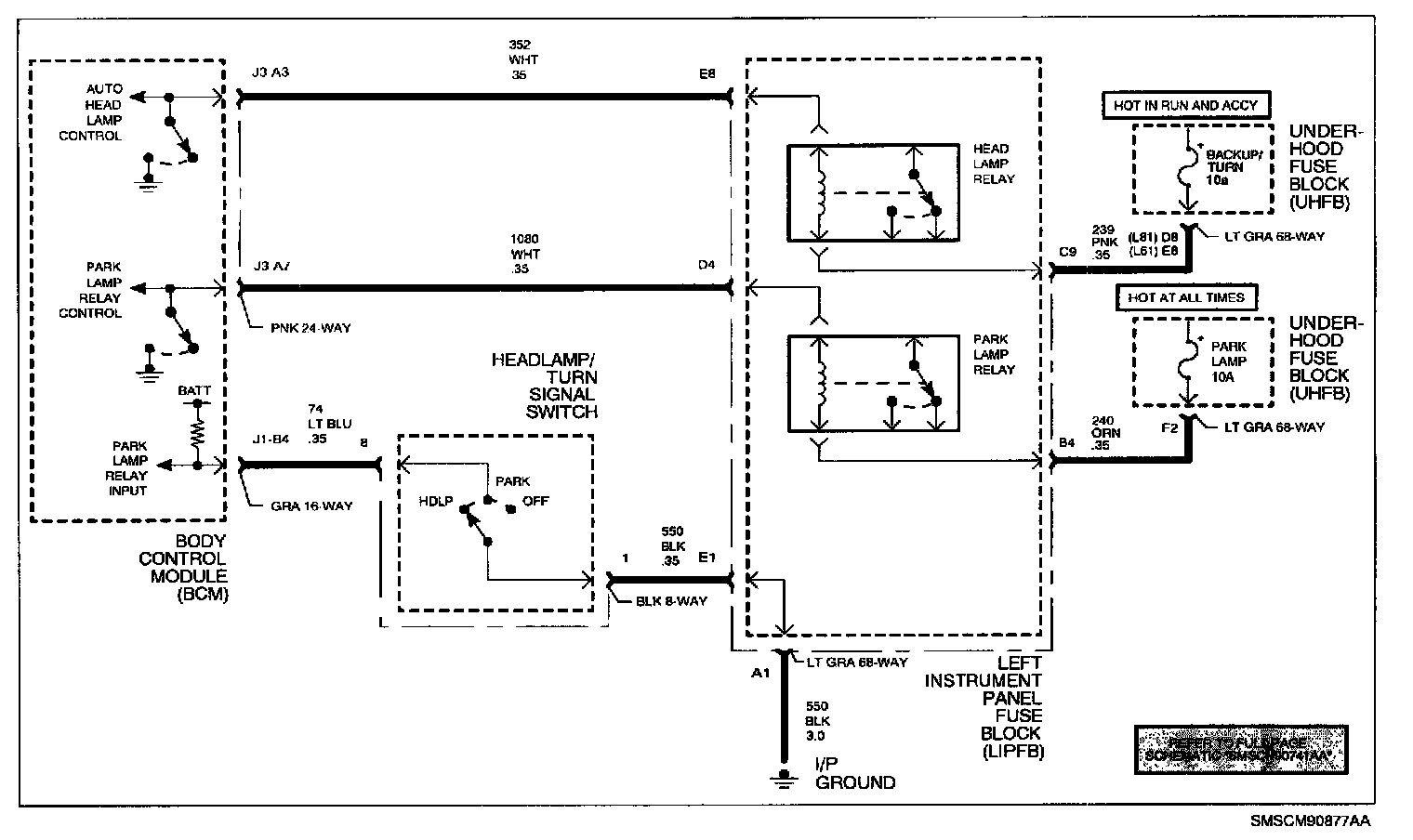

Schematic:

CIRCUIT DESCRIPTION
The body control module (BCM) activates the headlamp relay when the light sensor senses a dark condition. Battery voltage is supplied to the headlamp relay through the BACKUP/TURN fuse UHFB. The BCM provides ground to circuit 352 to activate the headlamp relay. If the headlamp relay control circuit is shorted to ground or open for five seconds. DTC B2577 will fail.

DTC PARAMETERS
^ Headlamp relay is commanded Off.
^ Short to ground or open.
^ Ignition in RUN.
^ Condition present for 5 seconds.
^ No telltale will illuminate.

DIAGNOSTIC AIDS
^ Check for poor connection at the BCM. Inspect harness connectors for backed-out terminals, improper terminal mating, broken connector locks, improperly formed or damaged terminals and poor terminal-to-wire connection (terminal crimped over wire insulation and not conductors).
^ Inspect wiring harness for damage. Check for broken or chaffed insulation.
^ If fault is suspected to be intermittent, wiggling harness wiring may help in locating fault.

TEST

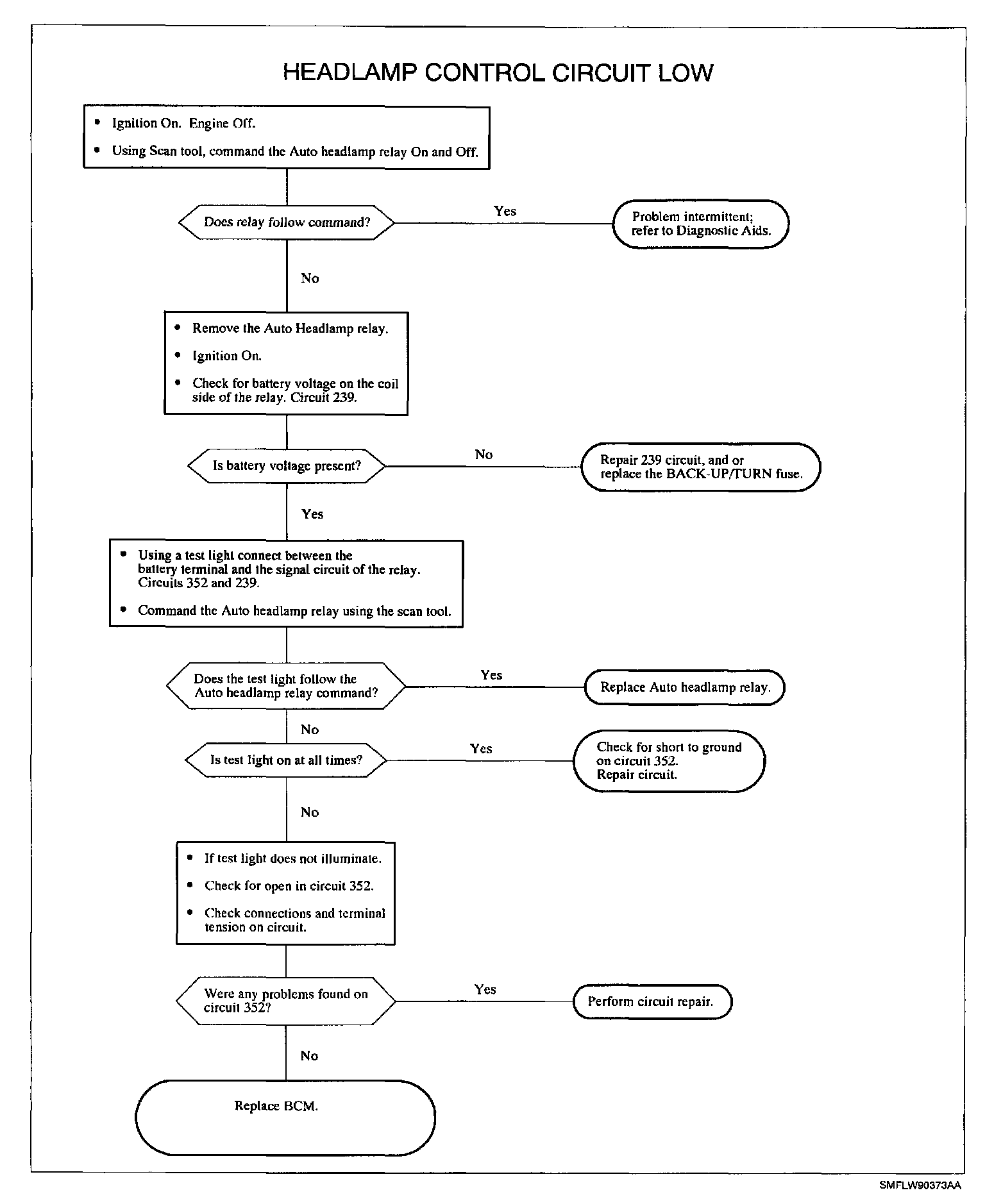

Diagnostic Chart:
