Body Control System Diagnosis

CIRCUIT DESCRIPTION
The vehicle option content information must be entered as part of the body control module (BCM) programming procedure. If the vehicle option content information is not included and programming procedure is completed the DTC will set.

DTC PARAMETERS
^ Programming of the BCM was completed without completing vehicle option content information
^ Last four digits of the SDM part number
^ If the SDM was replaced without programming BCM

DIAGNOSTIC AIDS
^ Refer to Saturn Service Stall System (SSS) users guide for programming BCM. Include the proper options for the vehicle.
^ Check for proper SDM part number.

TEST

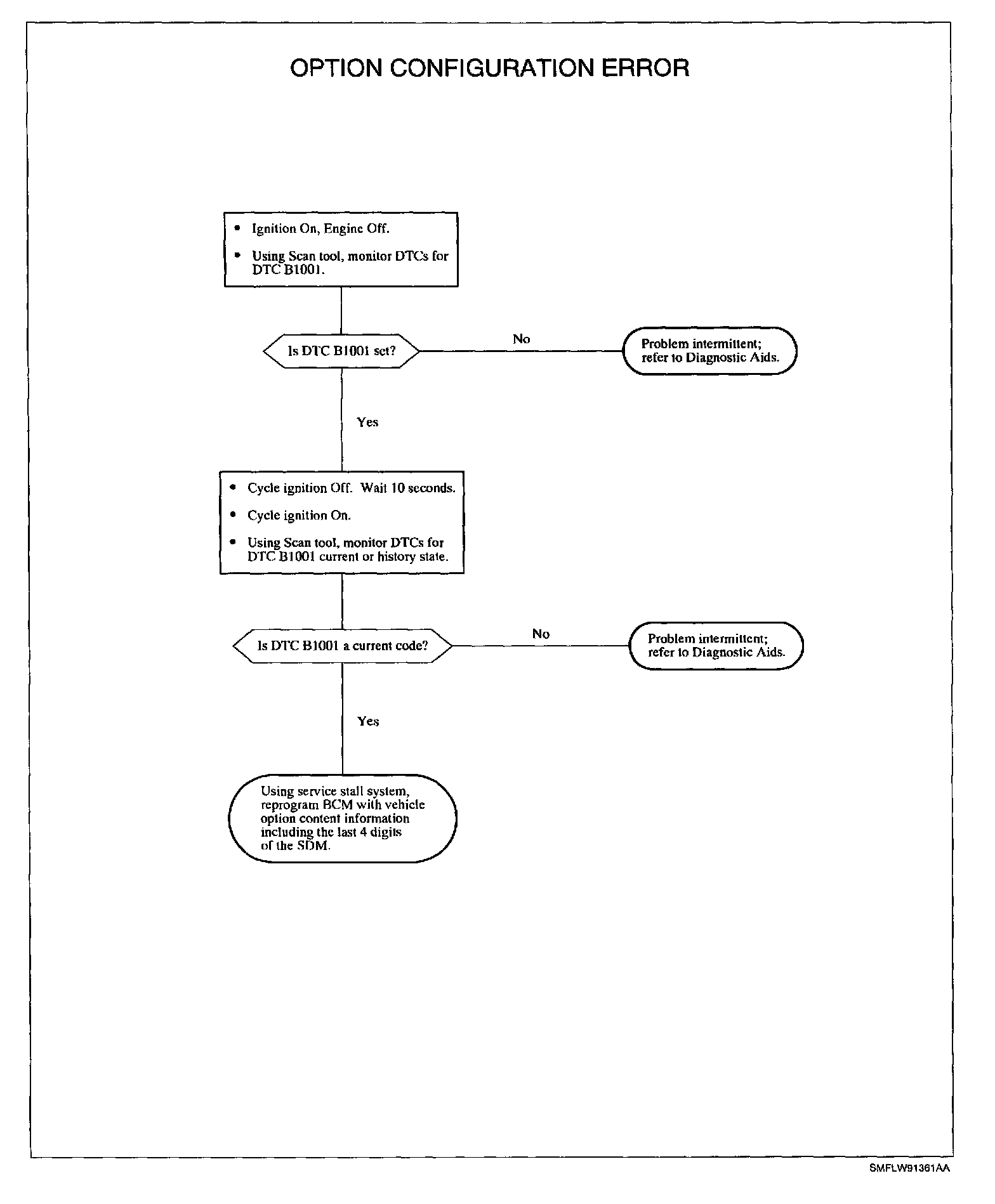

Diagnostic Chart:
