B0185

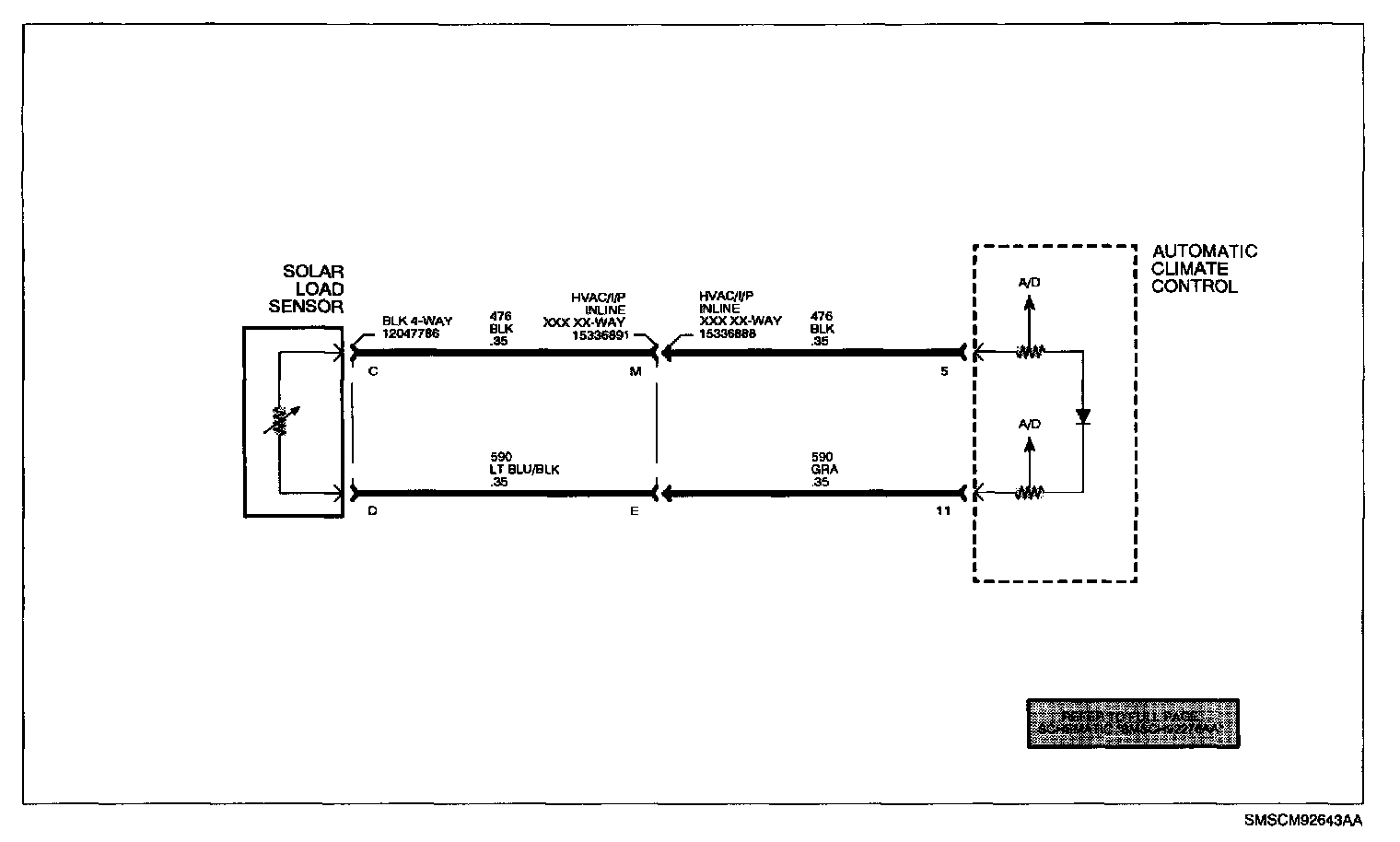

Schematic:

CIRCUIT DESCRIPTION
The HVAC control module monitors the ambient light on the vehicle via light sensitive photodiode, which is called a solar load sensor. The HVAC control module uses this information in order to compensate for the effect of the sun on the inside air temperature of the vehicle. When the sensor is in direct sunlight, the ambient light counts are low. When the sensor is shaded, the ambient light counts are high. The HVAC control module requests engagement of the A/C compressor clutch, and controls the door position of the air temperature actuator in order to maintain the selected air temperature on the HVAC control module.

DTC PARAMETERS

NOTE: Vehicle must be outside for the photodiode to receive proper lighting. Fluorescent lighting will not work.

^ Ignition in RUN position
^ LT BLU/BLK 590 is shorted to ground or near zero
^ Condition is present for 60 seconds
^ Counts are less than 6

DIAGNOSTIC AIDS
If DTC in history or an intermittent condition, perform the test shown by wiggling wiring and connectors. This will cause malfunction to appear.

Visually inspect sensor connector and harness for damage, corrosion or water intrusion.

Check connector halves for poor mating or terminal not fully seated in the connector body (backed out).

Check for adequate terminal tension, mis-routed harness, rubbed-through wire insulation and broken wire inside the insulation.

Check for improperly formed or damaged terminals. All connector terminals in the related circuit should be carefully reformed or replaced to ensure proper contact tension.

TEST

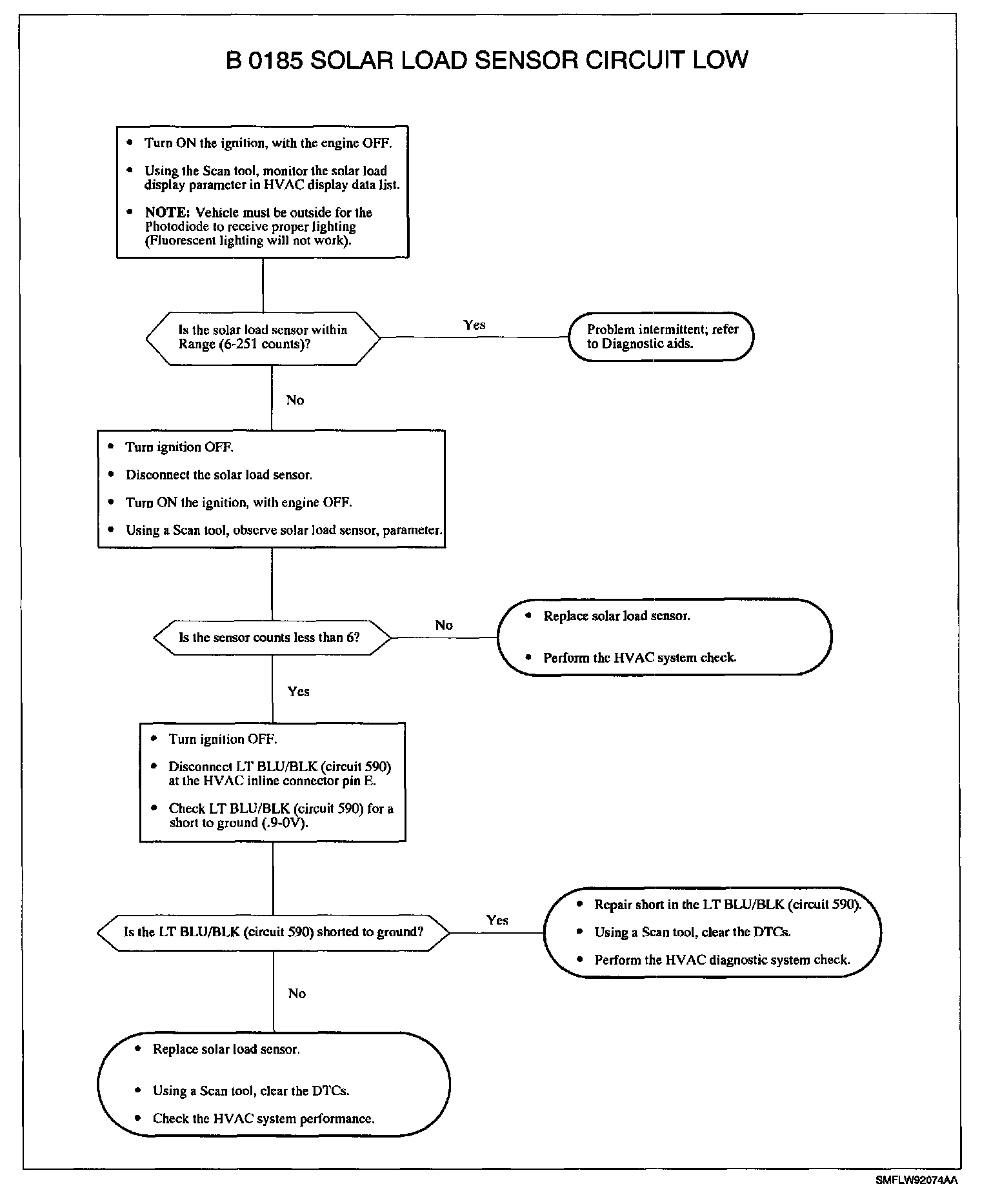

Diagnostic Chart:
