Window Run Channel Weatherstrip - Front Door

REMOVAL
1. Remove door trim panel.




2. Remove water deflector.
3. Remove inside door weatherstrip.

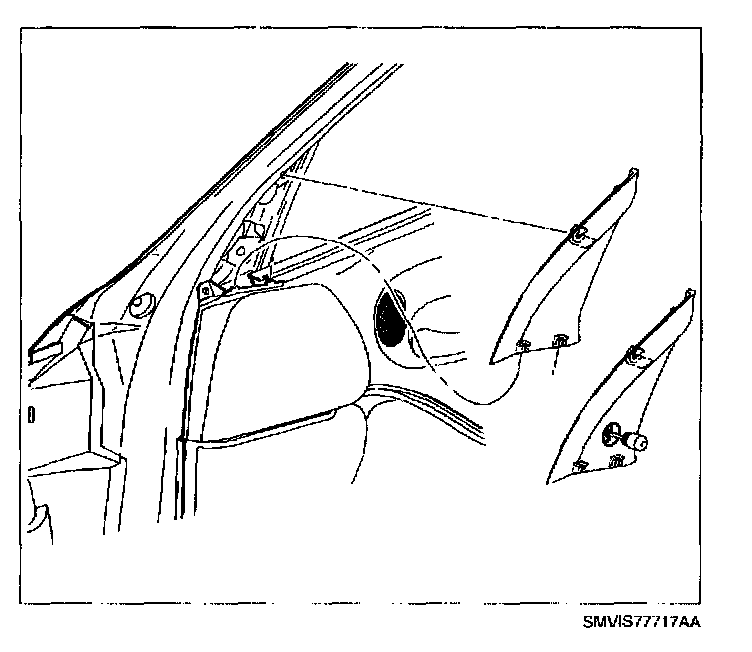

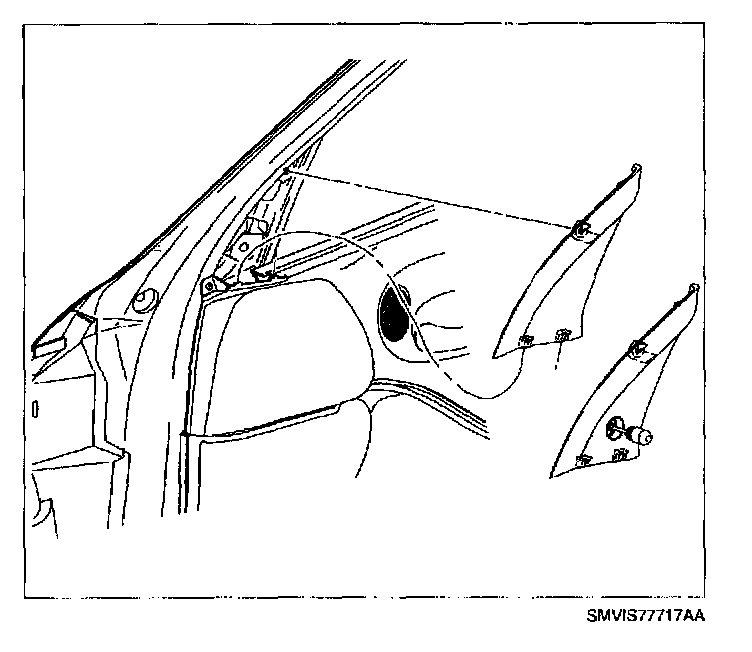

4. Remove mirror trim cover.

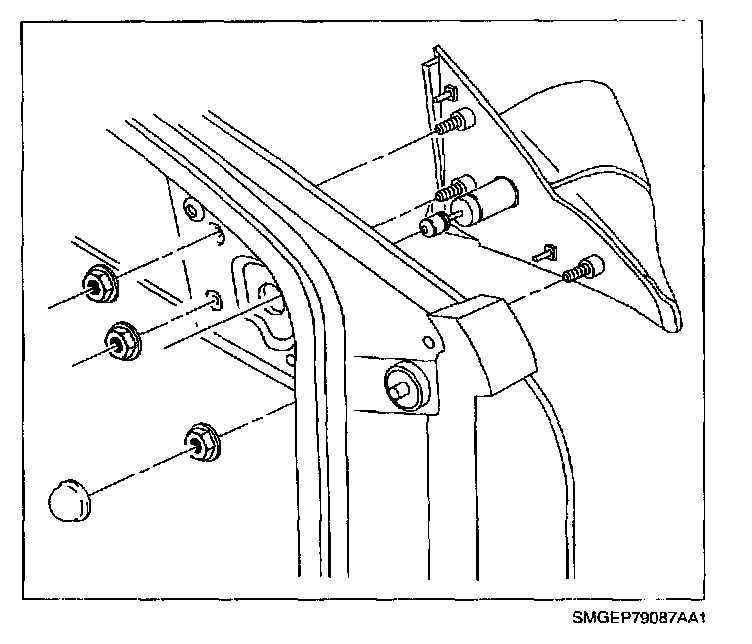

5. Remove outside rear view mirror.

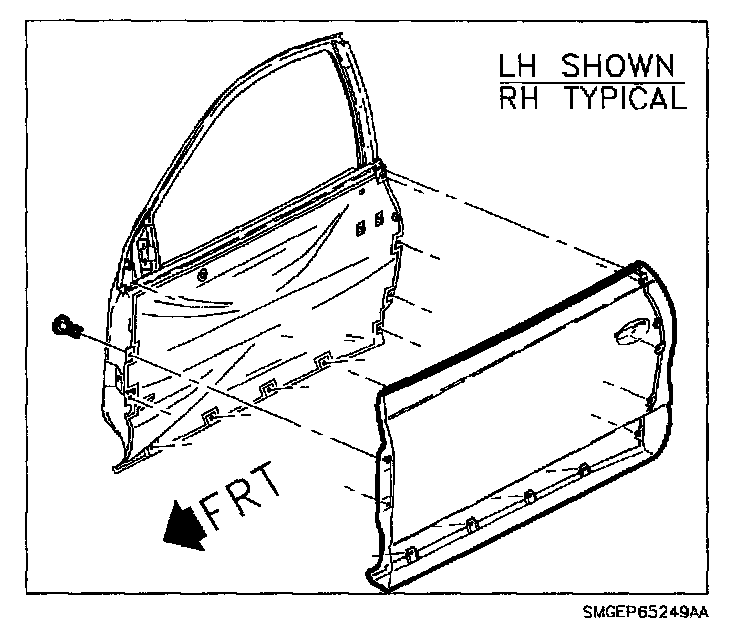

6. Remove outer door panel.

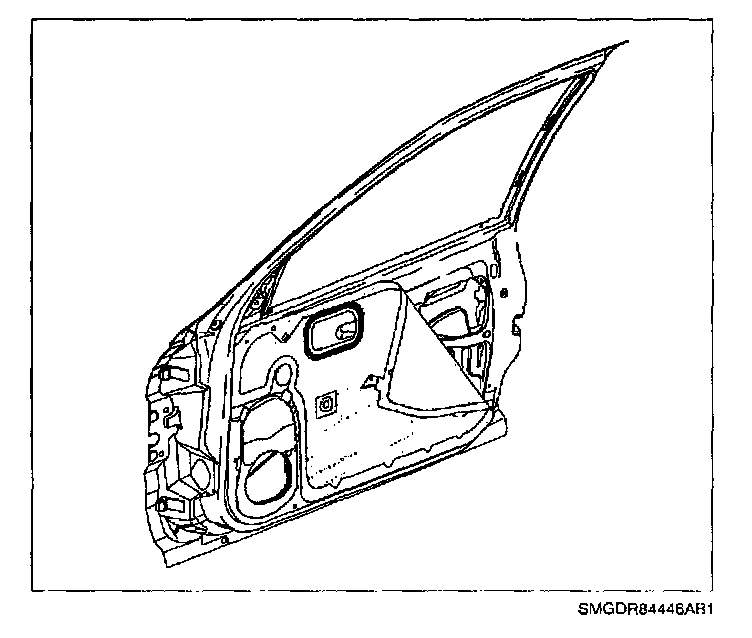

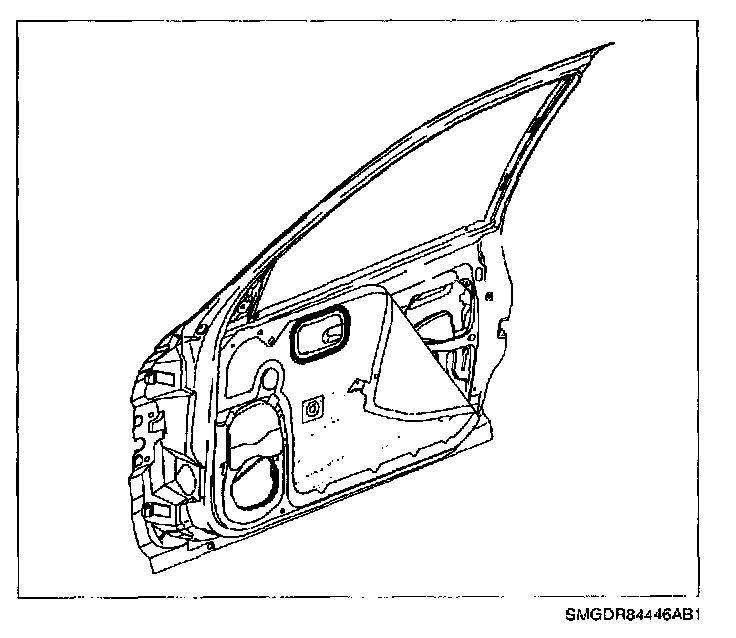

7. Remove water barrier/insulator pad.

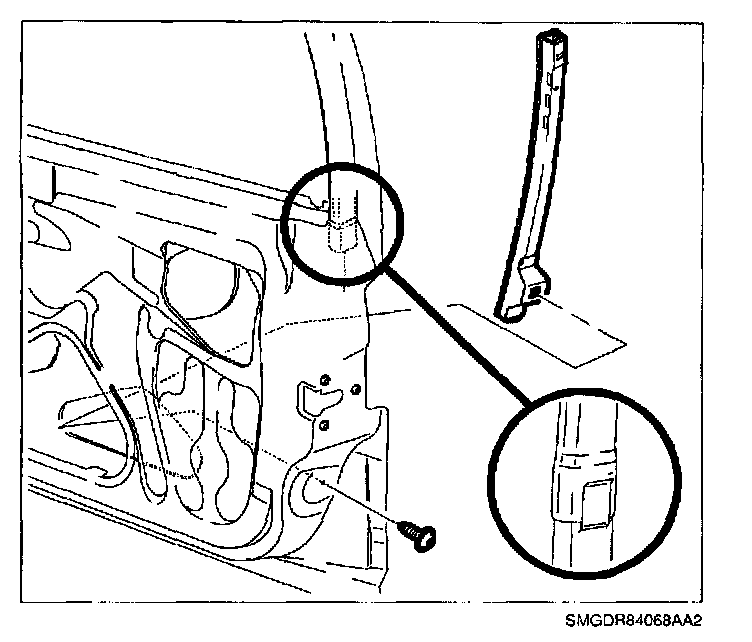

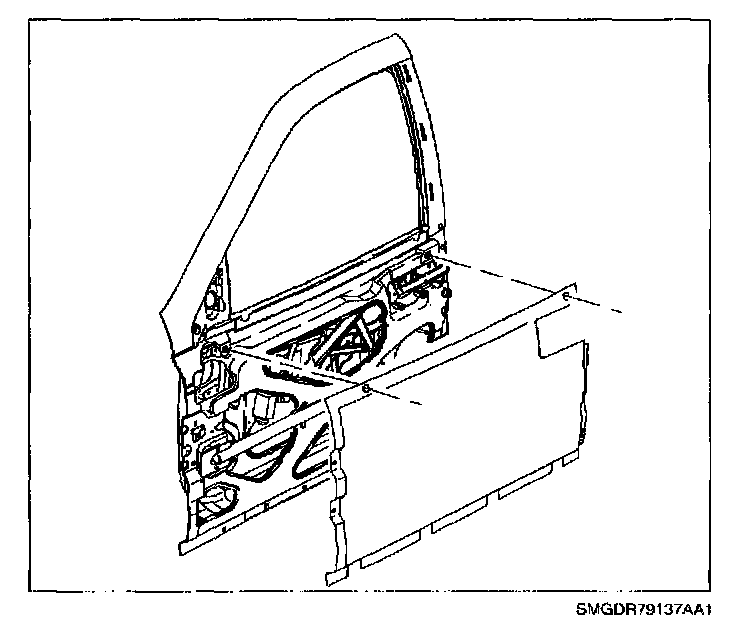

8. Remove rear glass run channel.

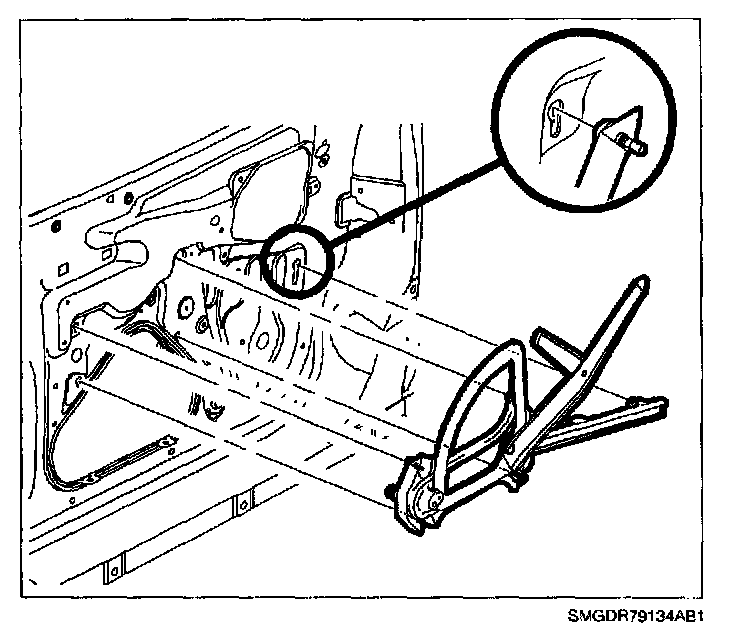

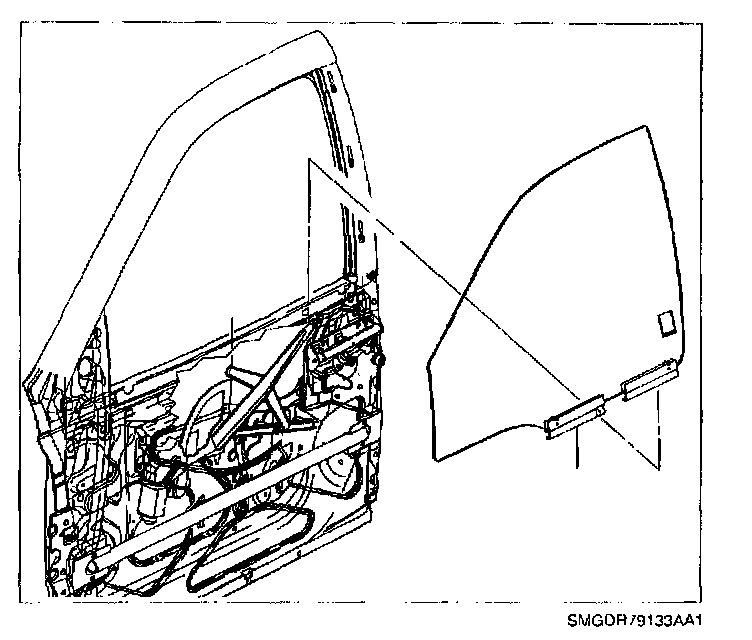

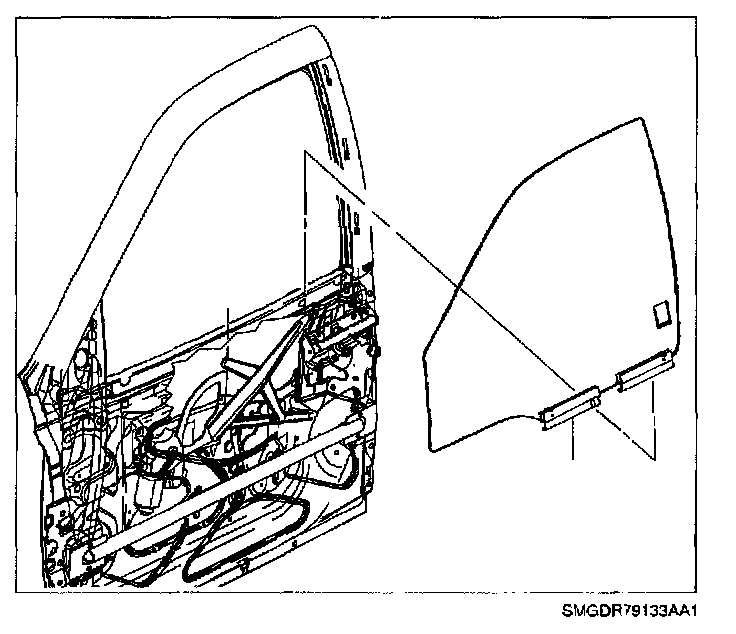

9. Remove door glass.




10. Remove front door rear applique.

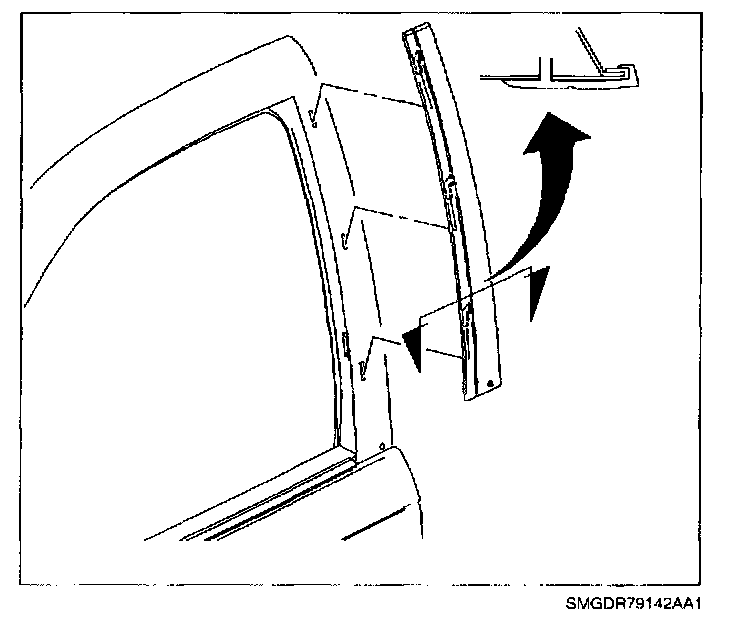

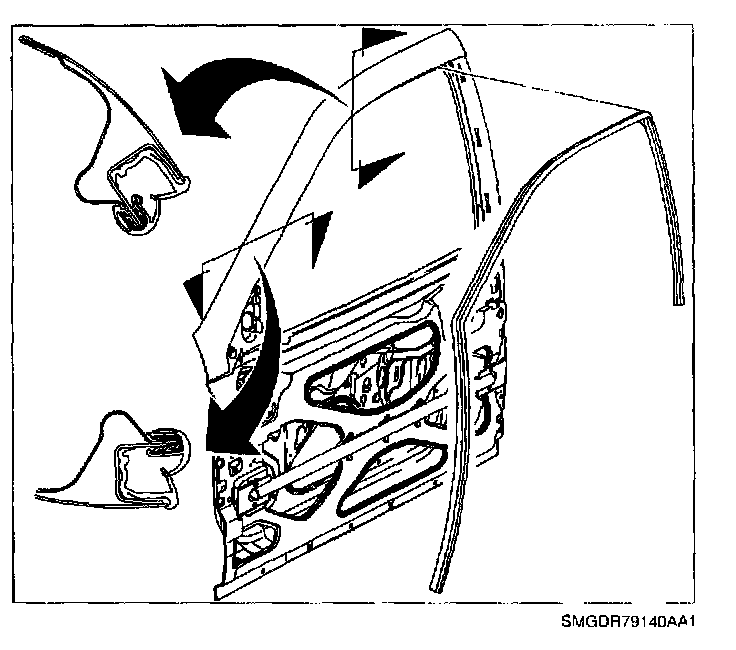

11. Remove outside front window run channel weatherstrip.

INSTALLATION

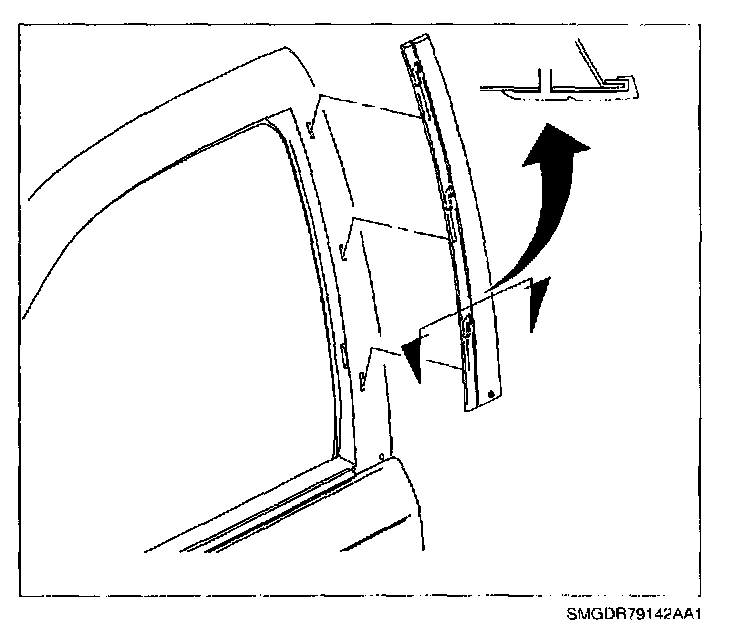

1. Install outside front window run channel weatherstrip.




2. Install front door rear applique.




3. Install door glass.

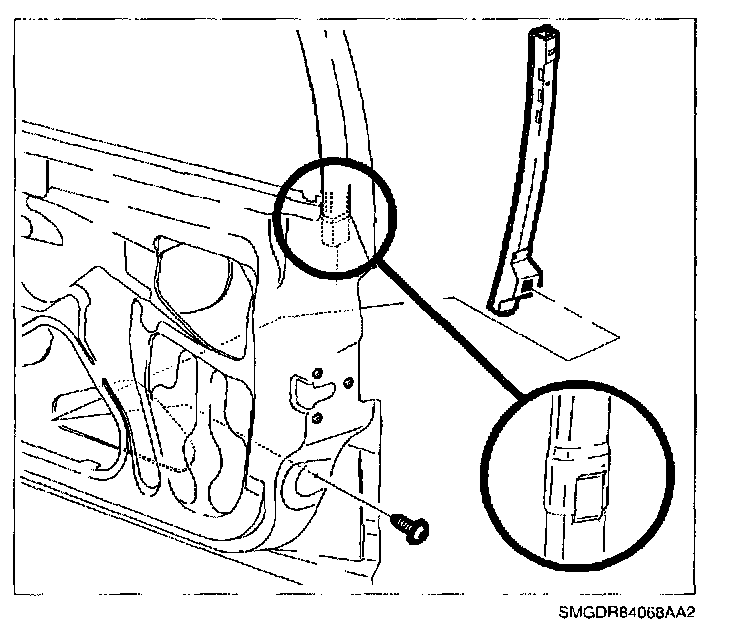

4. Install rear glass run channel.




5. Install inside door weatherstrip.




6. Adjust door glass as necessary and check window operation.

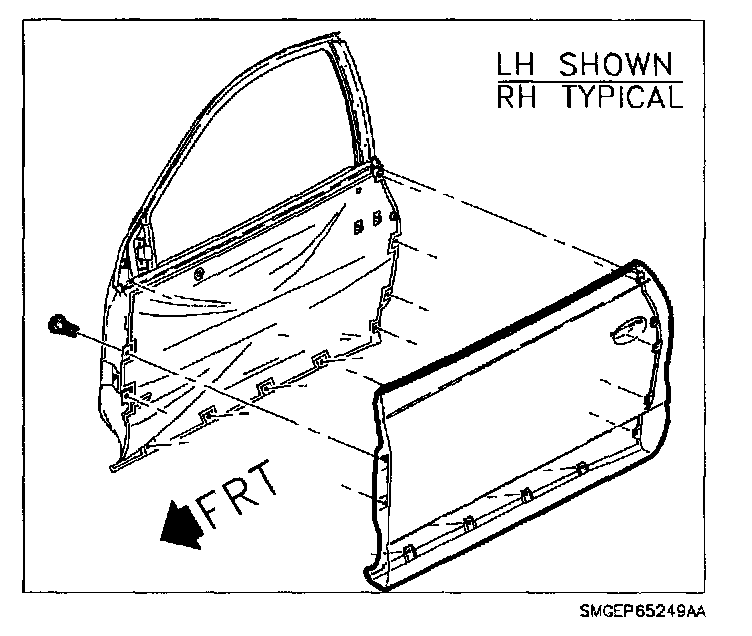

7. Install outer door panel.




8. Install water deflector.

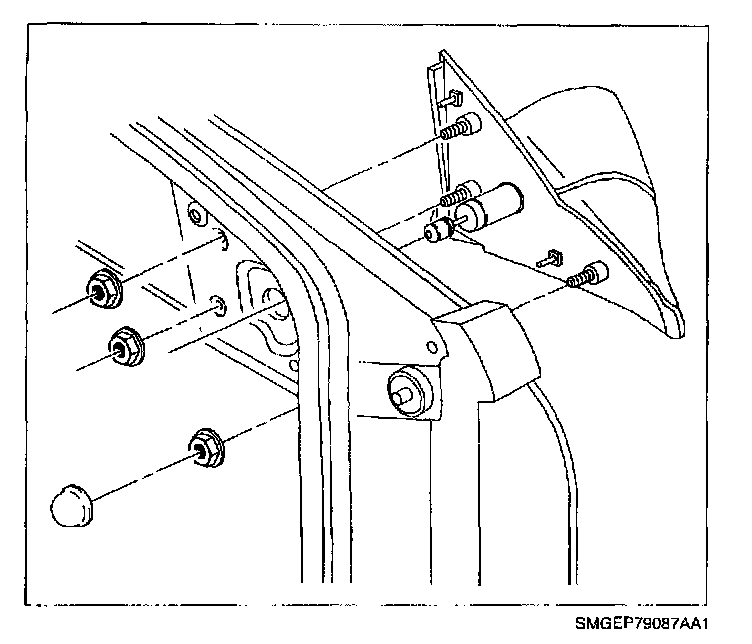

9. Install outside rear view mirror.




10. Install mirror trim cover.
11. Install door trim panel.
