Manual Transaxle Diagnostic Chart

Diagnostics

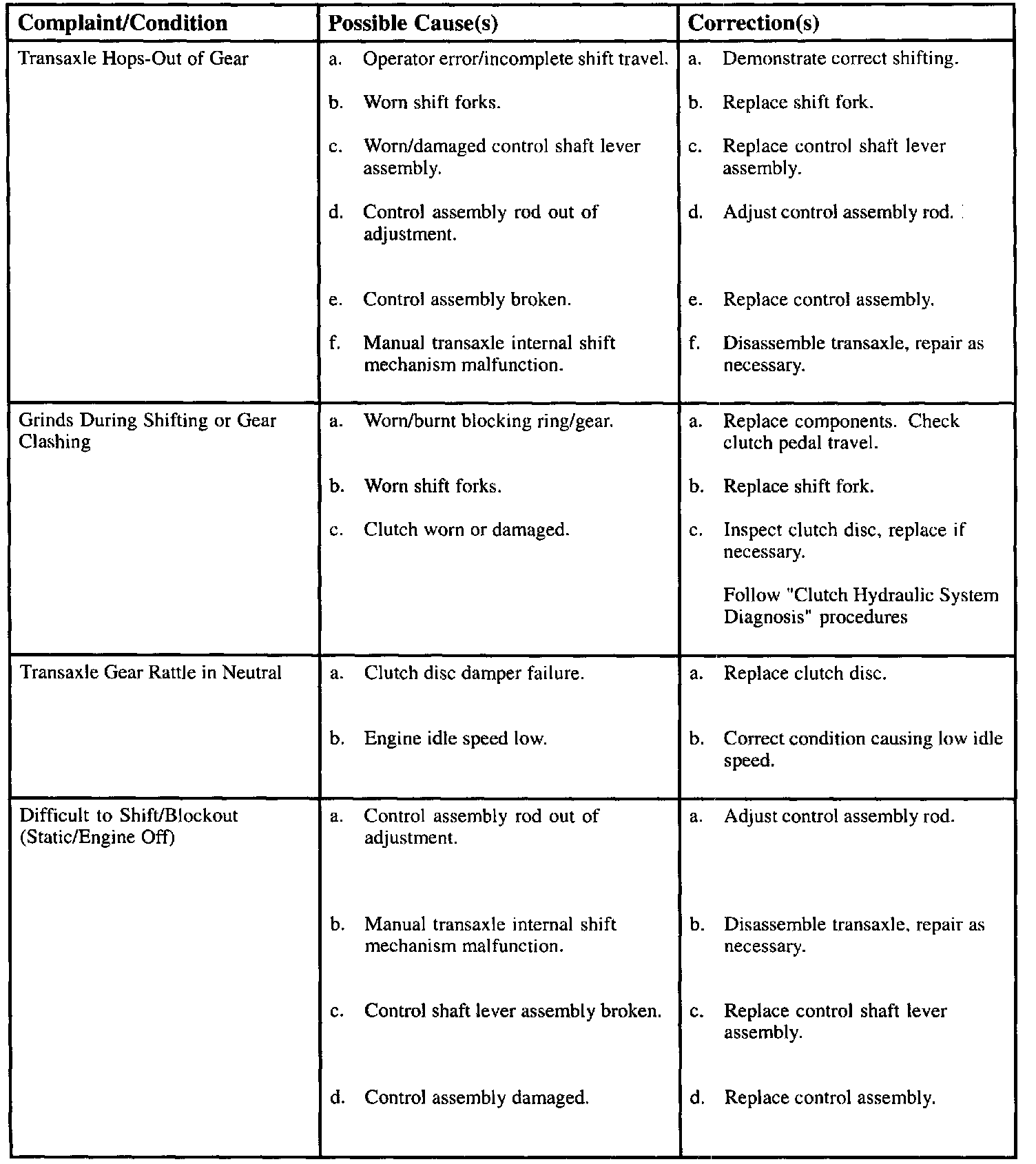

Part 1 of 5

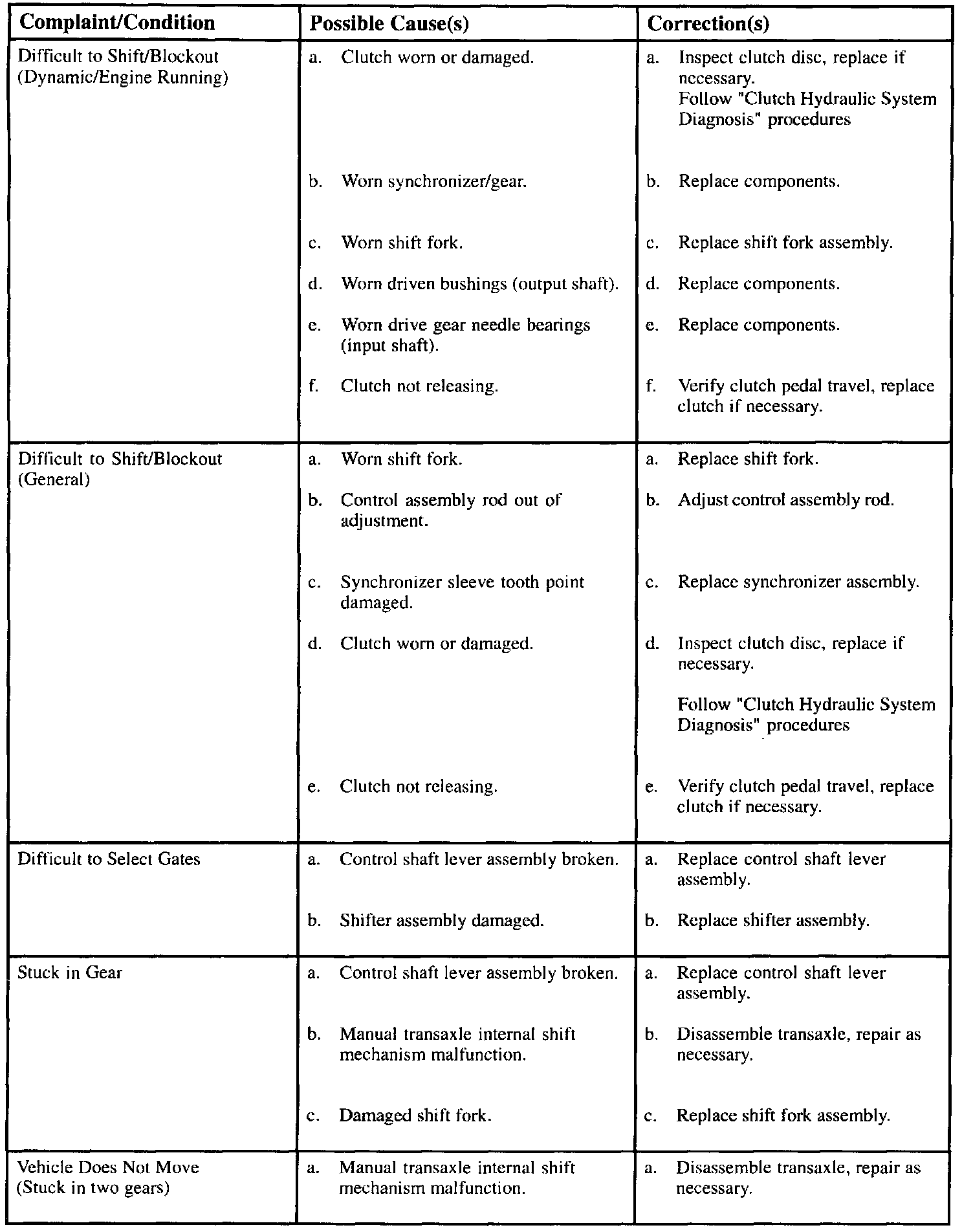

Part 2 of 5

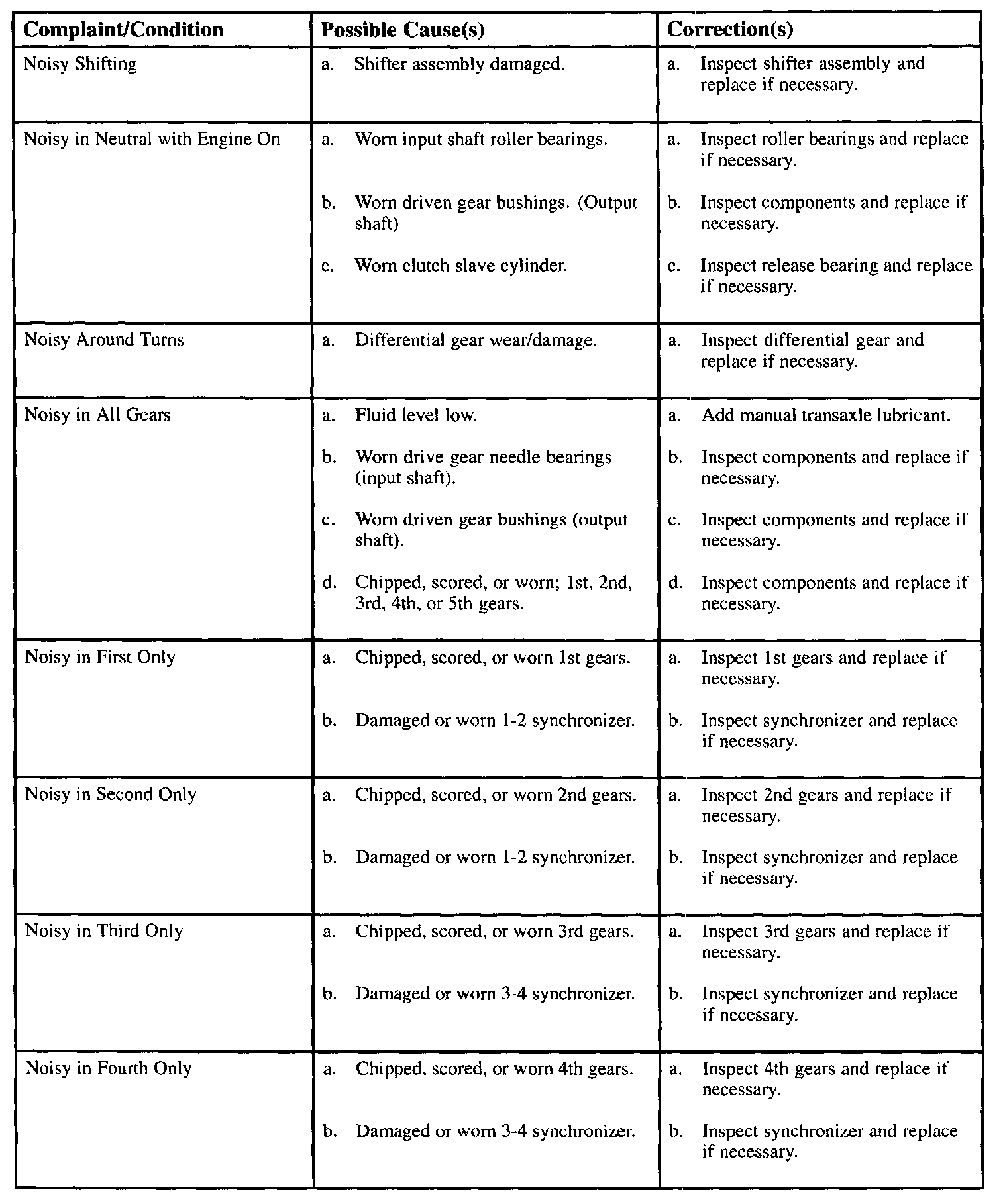

Part 3 of 5

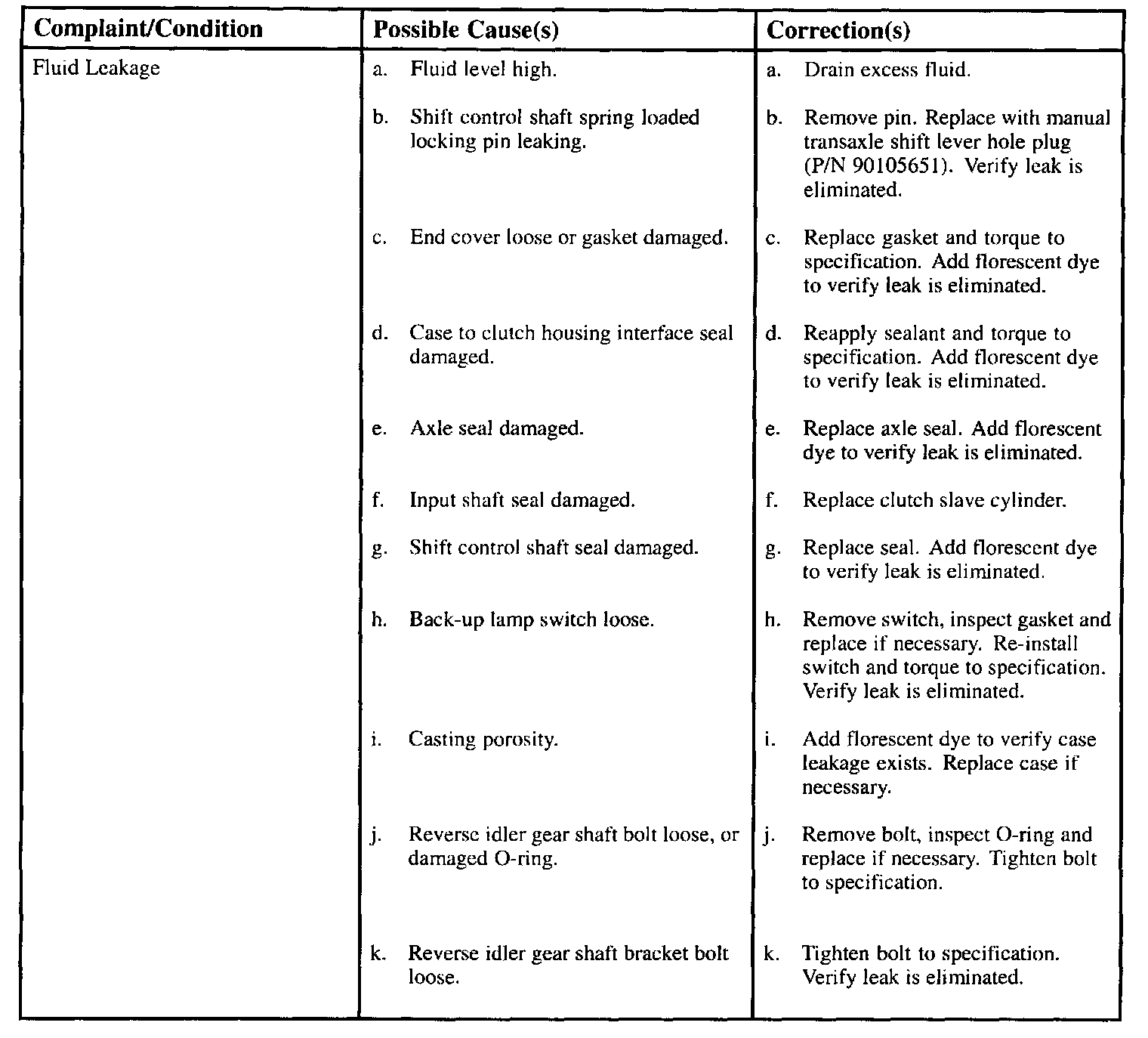

Part 4 of 5

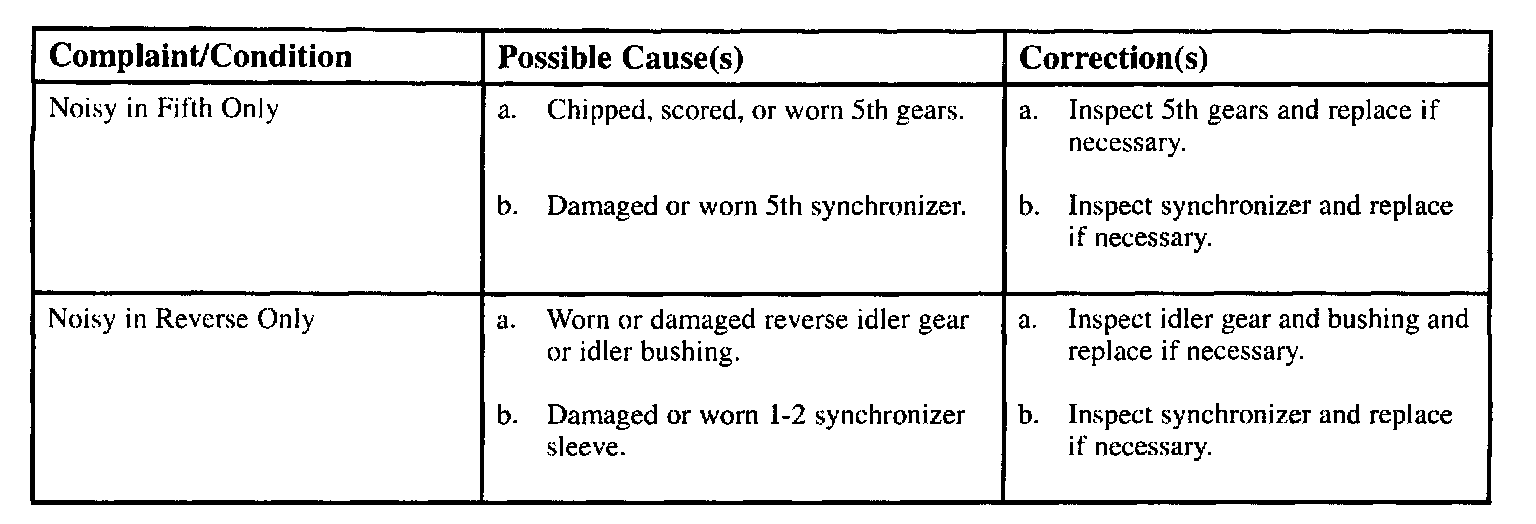

Part 5 of 5

MANUAL TRANSAXLE DIAGNOSTIC CHART
