31. Forward Clutch and Low/Reverse Band Removal

FORWARD CLUTCH AND LOW/REVERSE BAND REMOVAL

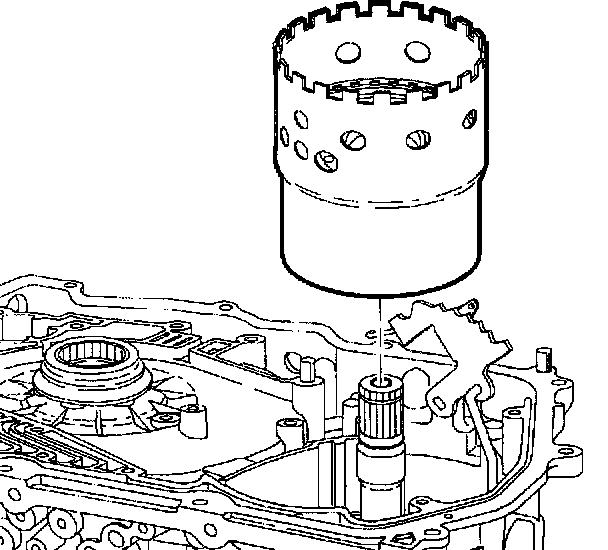

1. Remove forward clutch assembly.

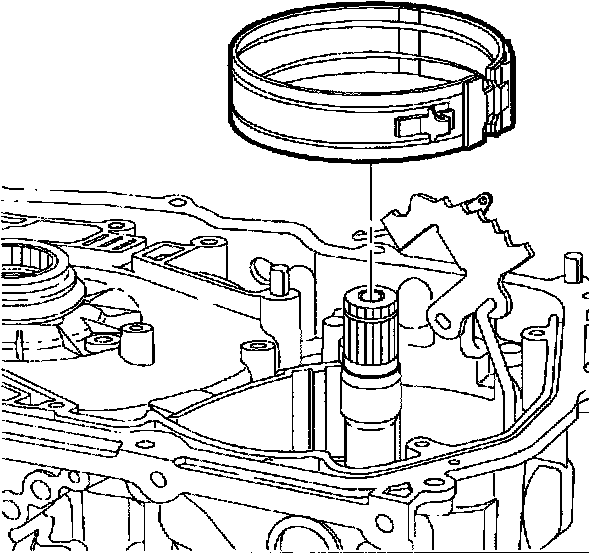

2. Remove low/reverse band.
