3. Transaxle Holding Fixture Assemble

TRANSAXLE HOLDING FIXTURE ASSEMBLE

CAUTION: TO REDUCE THE POSSIBILITY OF PERSONAL INJURY OR TRANSAXLE DAMAGE, MAKE SURE, WHEN DOING THE NEXT STEP, THAT ALL OF THE BOLTS FOR THE SUPPORT FIXTURE ARE INSTALLED, AND THAT BOLTS ARE TIGHTENED TO 11 NM (8 FT. LBS.).

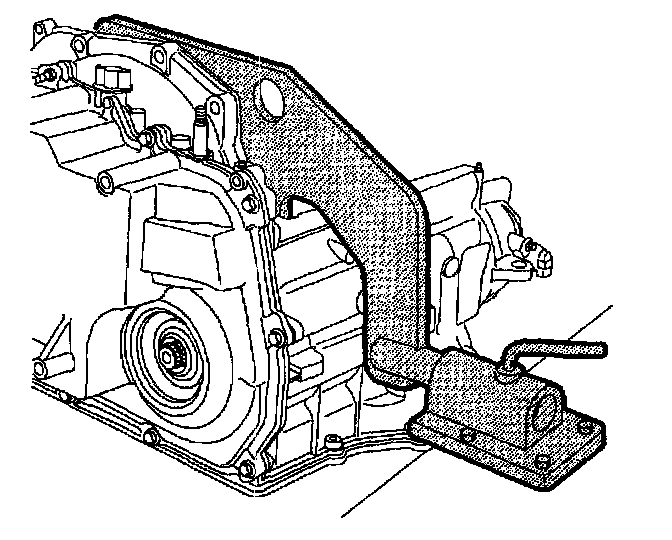

1. Install Transaxle Support Fixture J43707 onto transaxle.





2. Torque support fixture bolts.
Torque:
Transaxle Support Fixture (J43707) Bolts: 11 Nm (8 ft. lbs.)
3. Install transaxle and support fixture into either Engine Stand Fixture Adapter J43964 (not shown), or Support Fixture Base J3289-20 (shown).
4. Position transaxle with side cover facing down.
5. Insert pin into the J3289-20 fixture base in order to lock unit into place.
