18. Manual Valve Clip Removal

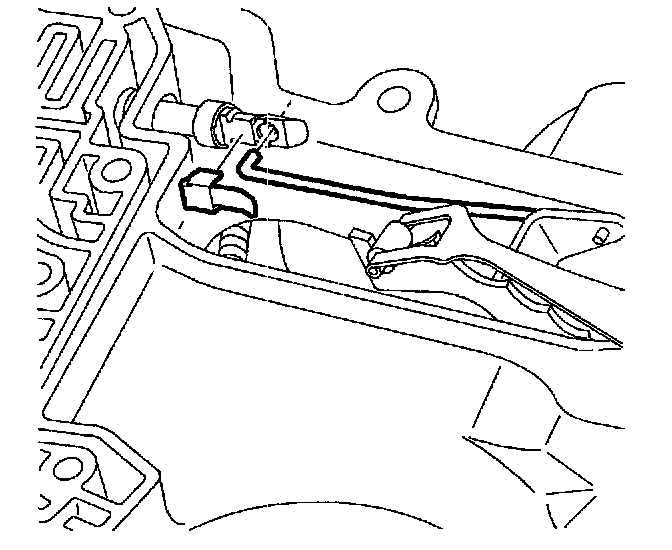

MANUAL VALVE CLIP REMOVAL

NOTICE: Do not attempt to remove the manual valve at this point. Damage to the valve may occur.





1. Disconnect manual valve clip from manual valve.
2. Disconnect manual valve link from the manual valve.
