10. Low and Reverse Servo Removal

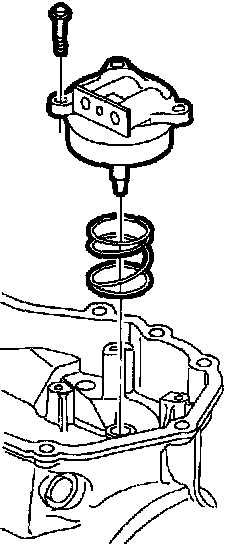

LOW AND REVERSE SERVO REMOVAL

NOTICE: Remove servo cover bolts evenly to prevent damage to servo cover.





1. Remove servo cover bolts.
2. Remove servo cover assembly (Lo and Reverse).
3. Remove servo return spring.
