60. Oil Level Control Valve Installation

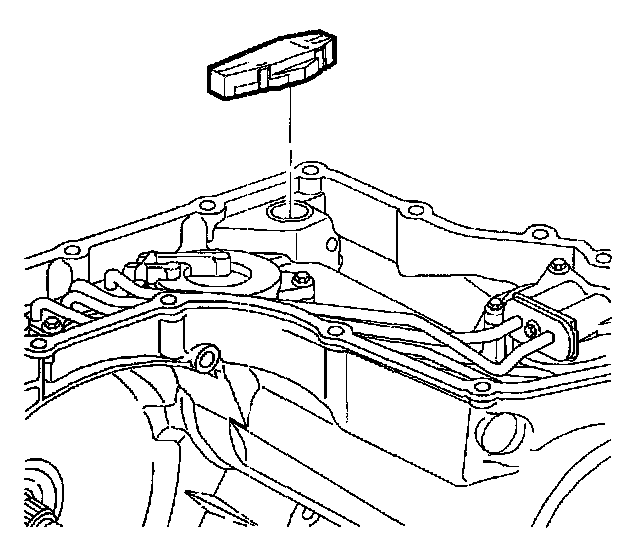

OIL LEVEL CONTROL VALVE INSTALLATION

NOTICE: Push straight down on center of oil level control valve in order to prevent damage to case bore.





Install oil level control valve into transaxle case.
