53. Output Speed Sensor Installation

OUTPUT SPEED SENSOR INSTALLATION

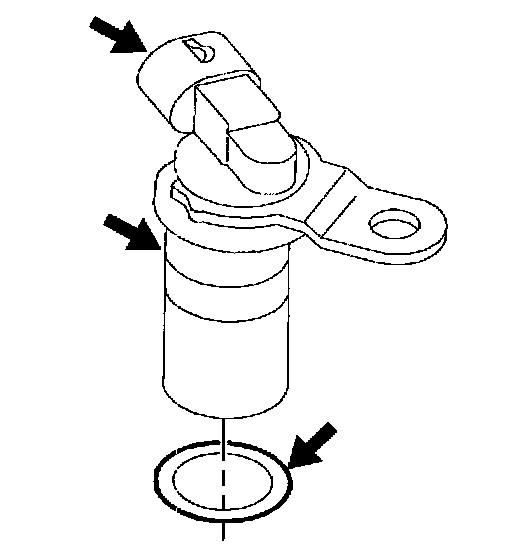

1. Inspect output speed sensor for damage to sensor, electrical connector, or O-ring.

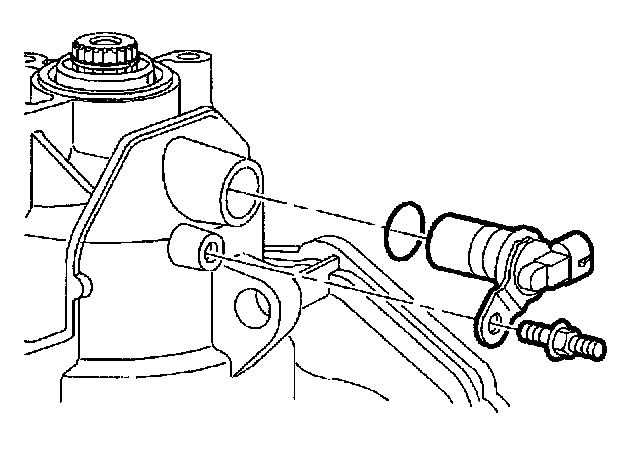

2. Clean and dry output speed sensor.





3. Install O-ring onto speed sensor.
4. Install speed sensor into transaxle case.
5. Install and tighten speed sensor stud.
Torque:
Speed Sensor Stud: 12 Nm (9 ft. lbs.)
