Underhood Fuse Block - Forward Lamp

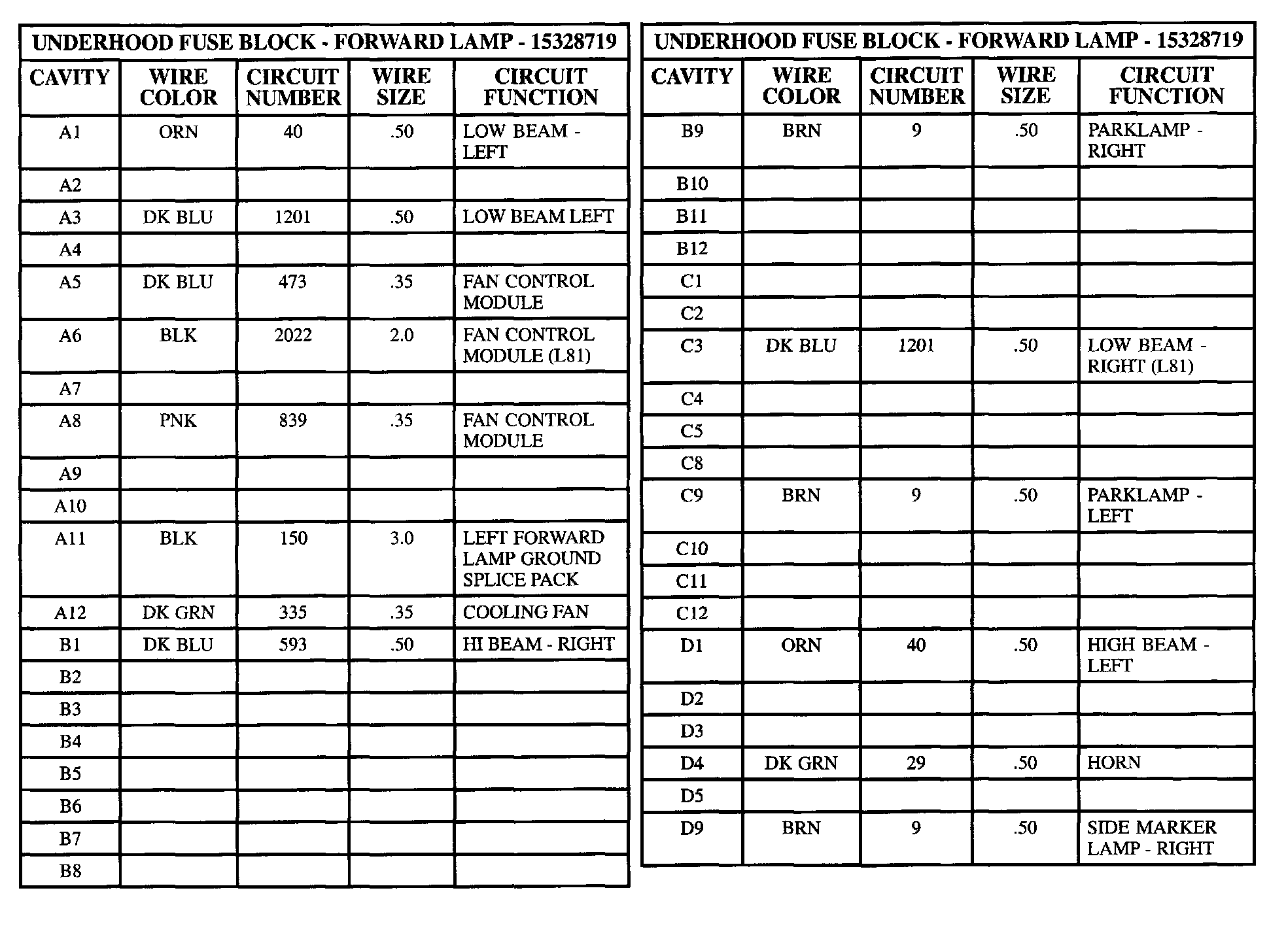

Underhood Fuse Block - Forward Lamp Part 1:

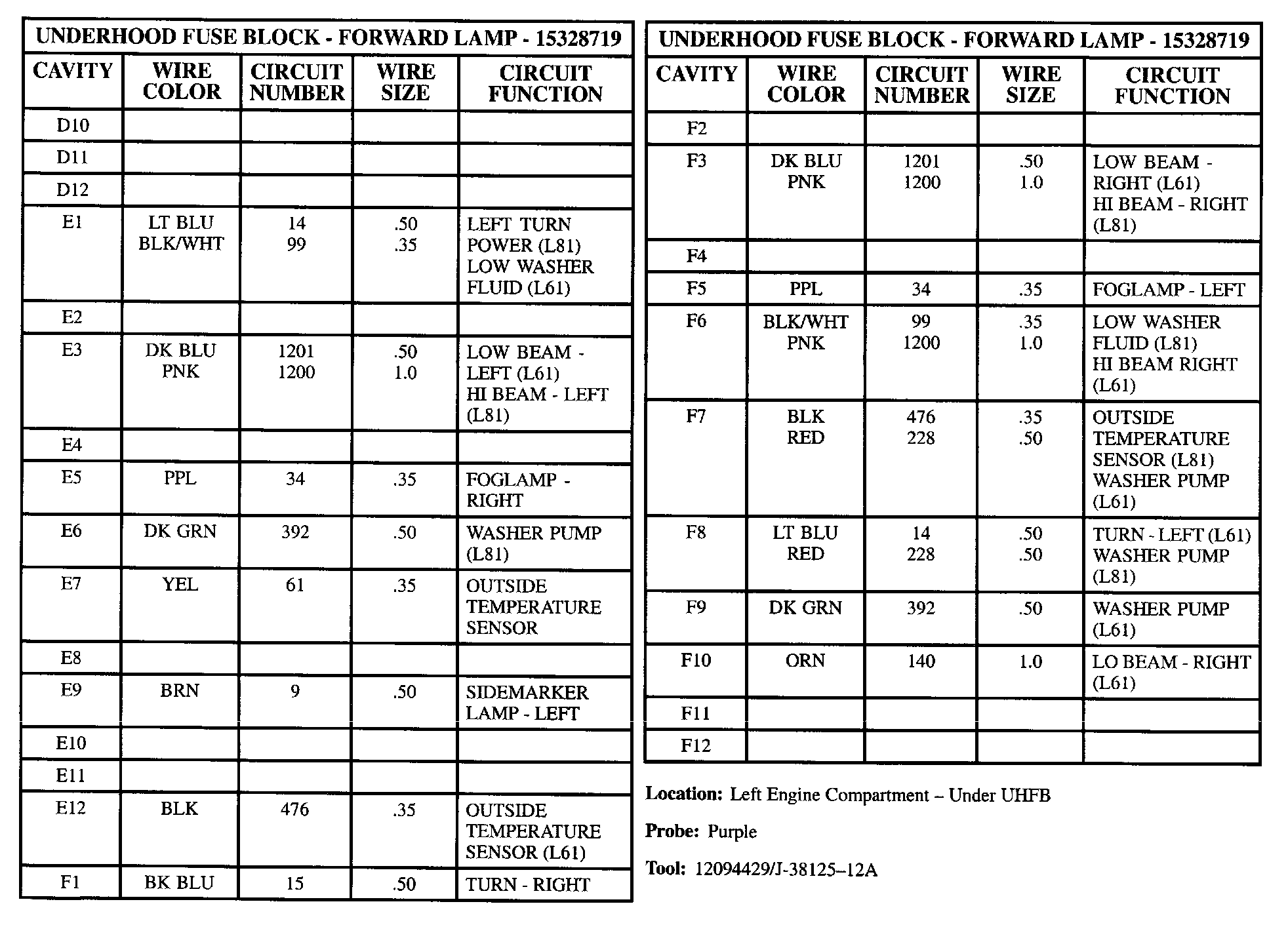

Underhood Fuse Block - Forward Lamp Part 2:

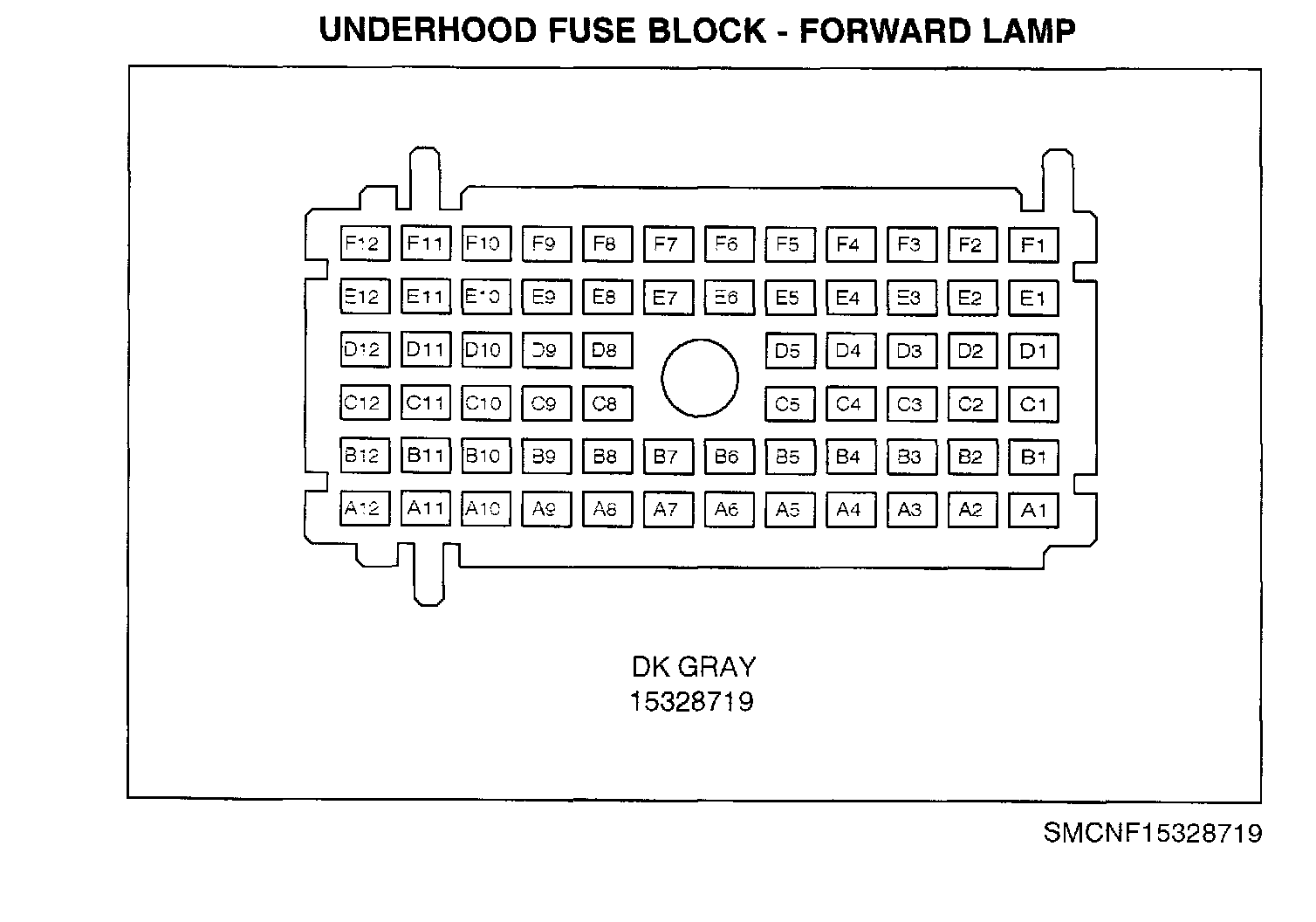

Underhood Fuse Block - Forward Lamp Part 3:
