Right Relay/Module Circuit Feeds
Right Relay/Module Circuit Feeds:

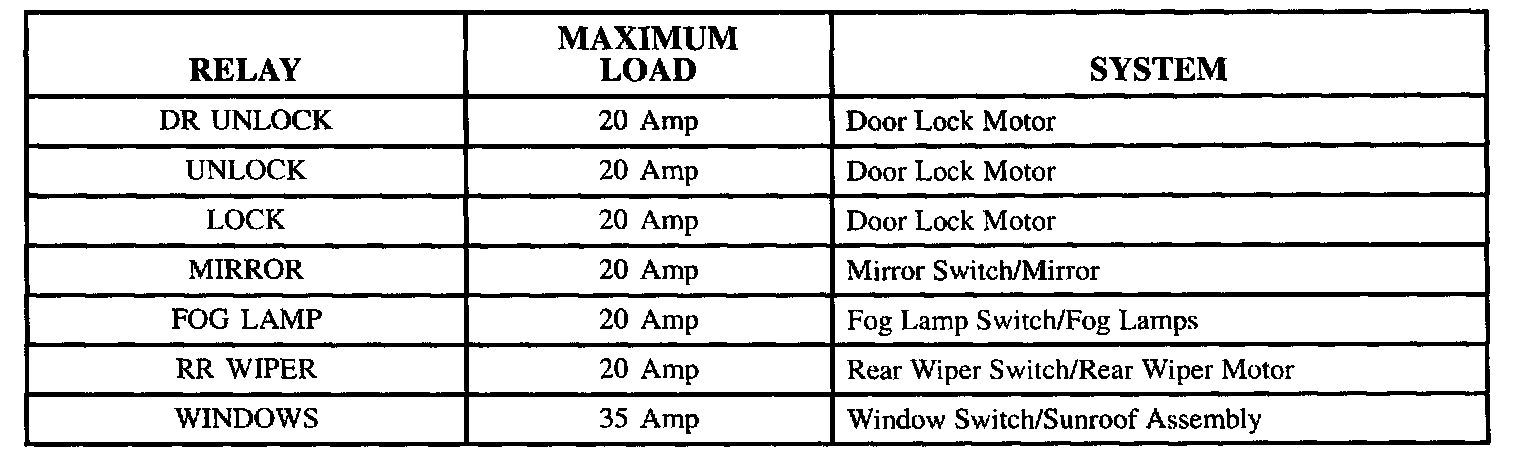

The chart lists the devices located in the right
fuse block
, and the Systems they control.
