Sunroof / Moonroof Switch: Service and Repair

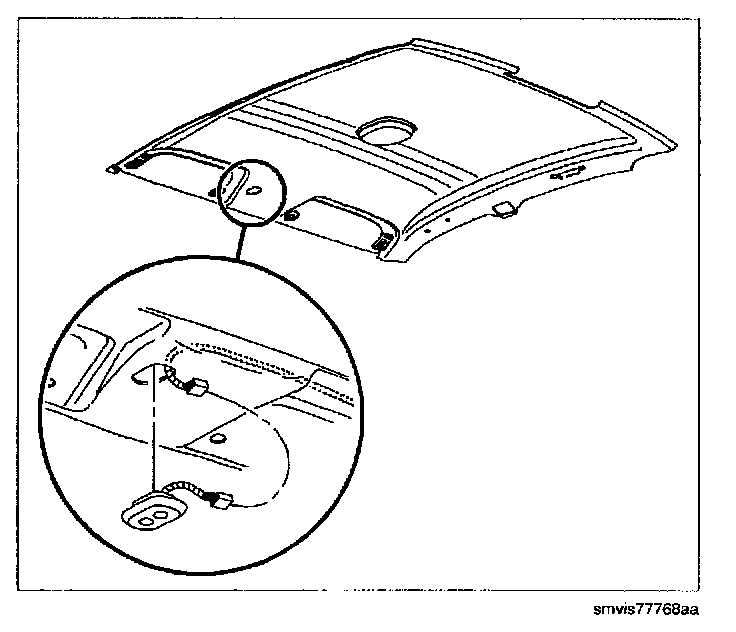

SUNROOF SWITCH

REMOVAL




1. Gently pry at rear of sunroof switch to unsnap clips.
2. Remove switch from opening.
3. Slightly rotate switch while removing to allow room for electrical connector.
4. Disconnect electrical connection and remove switch.

INSTALLATION




1. Connect electrical connection.
2. Rotate switch into opening and snap into place making sure clips are secured.
3. Function switch to ensure proper sunroof operation.
