Symptoms - HVAC System - Manual
Symptoms - HVAC System - Manual

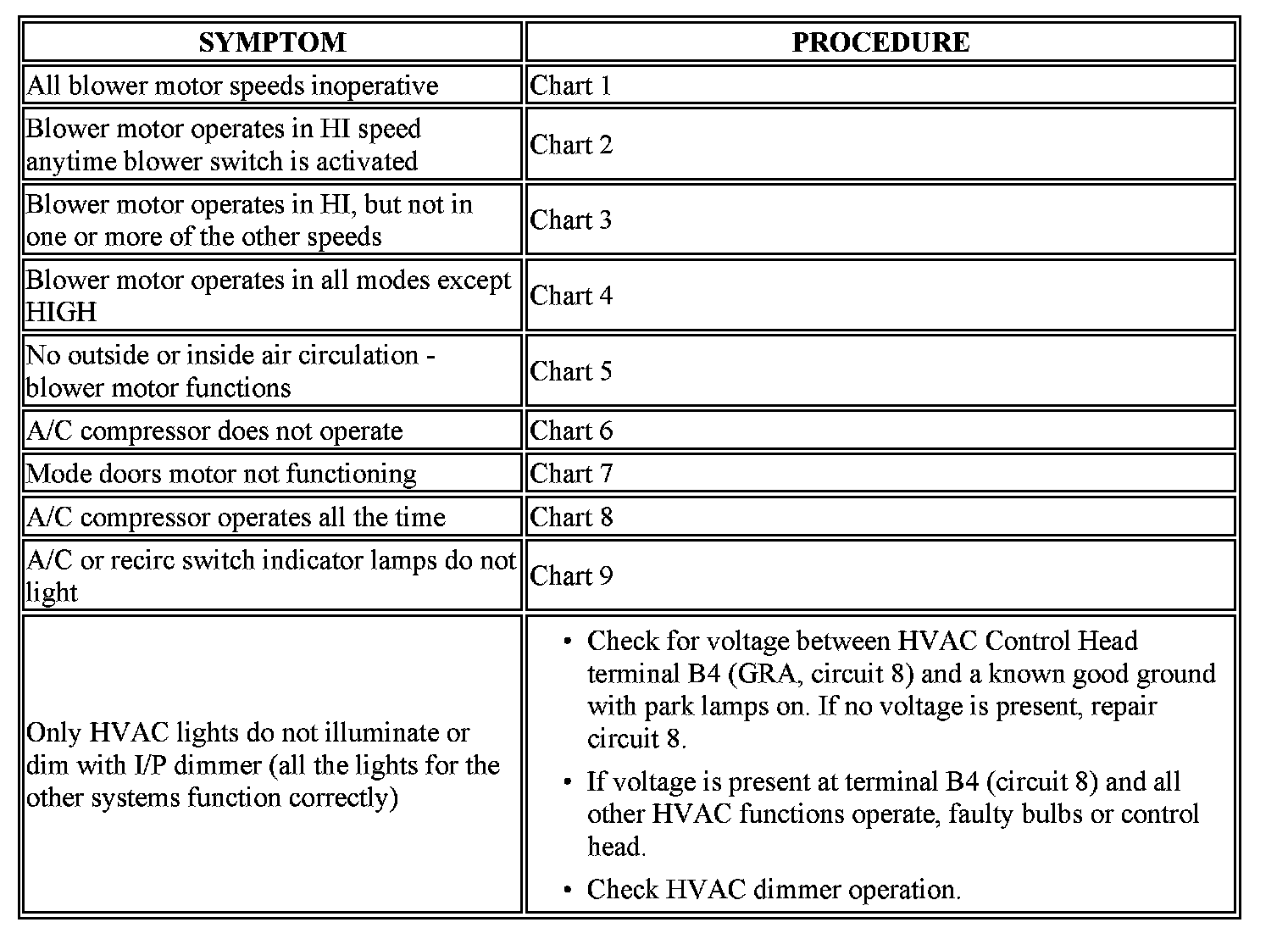

HVAC Diagnosis
Important:
Using a Scan tool check DTCs P0532, P0533 and P0530. If present, diagnose these DTCs first.
