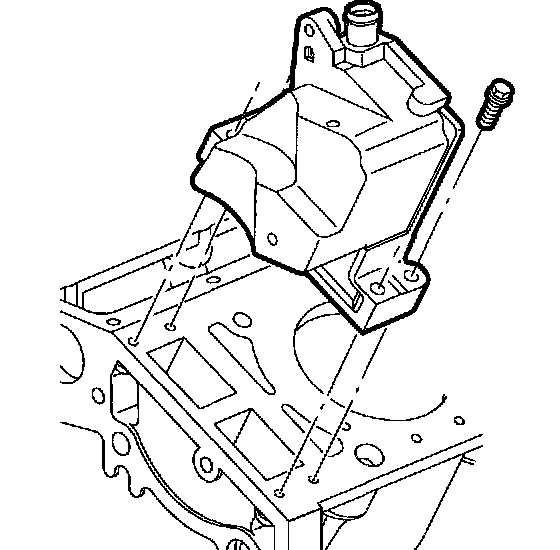

60. Crankcase Vent Housing Installation

CRANKCASE VENTILATION HOUSING (UNIT REPAIR)

INSTALLATION





1. Apply sealing compound Loctite- 518 or equivalent to sealing surfaces.
2. Install chamber to engine block.
3. Install chamber bolts
Torque:
Ventilation Housing Bolts: 8 Nm (71 inch lbs.)
4. Install hoses to chamber.
