Intake Runner - Rear Removal

INTAKE RUNNER - REAR (UNIT REPAIR)

TOOLS REQUIRED
- J43914 Universal Clamp Pliers

REMOVAL

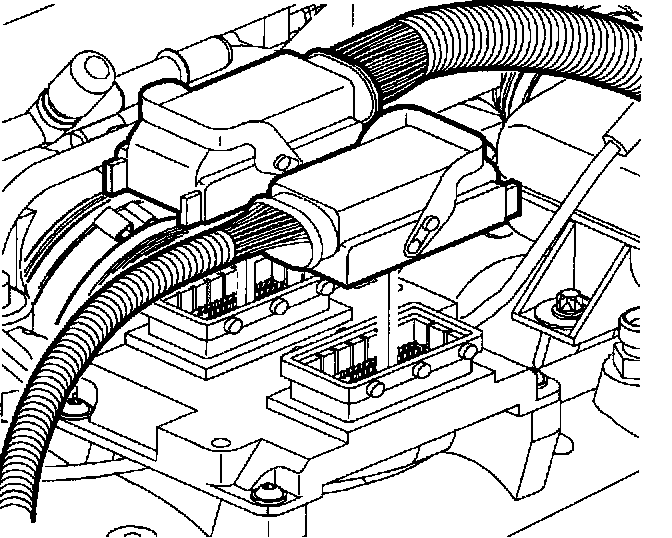

1. Remove ECM bolts and ECM.





2. Remove four rubber boot hose clamps using Universal Clamp Pliers J43914

Note: Clamps are reusable if not damaged. Do not discard.





3. Remove intake runner mounting bolts.
4. Disconnect intake runner from rubber boots and remove intake runner.
