Radio (Audio) Advanced Audio System Schematic

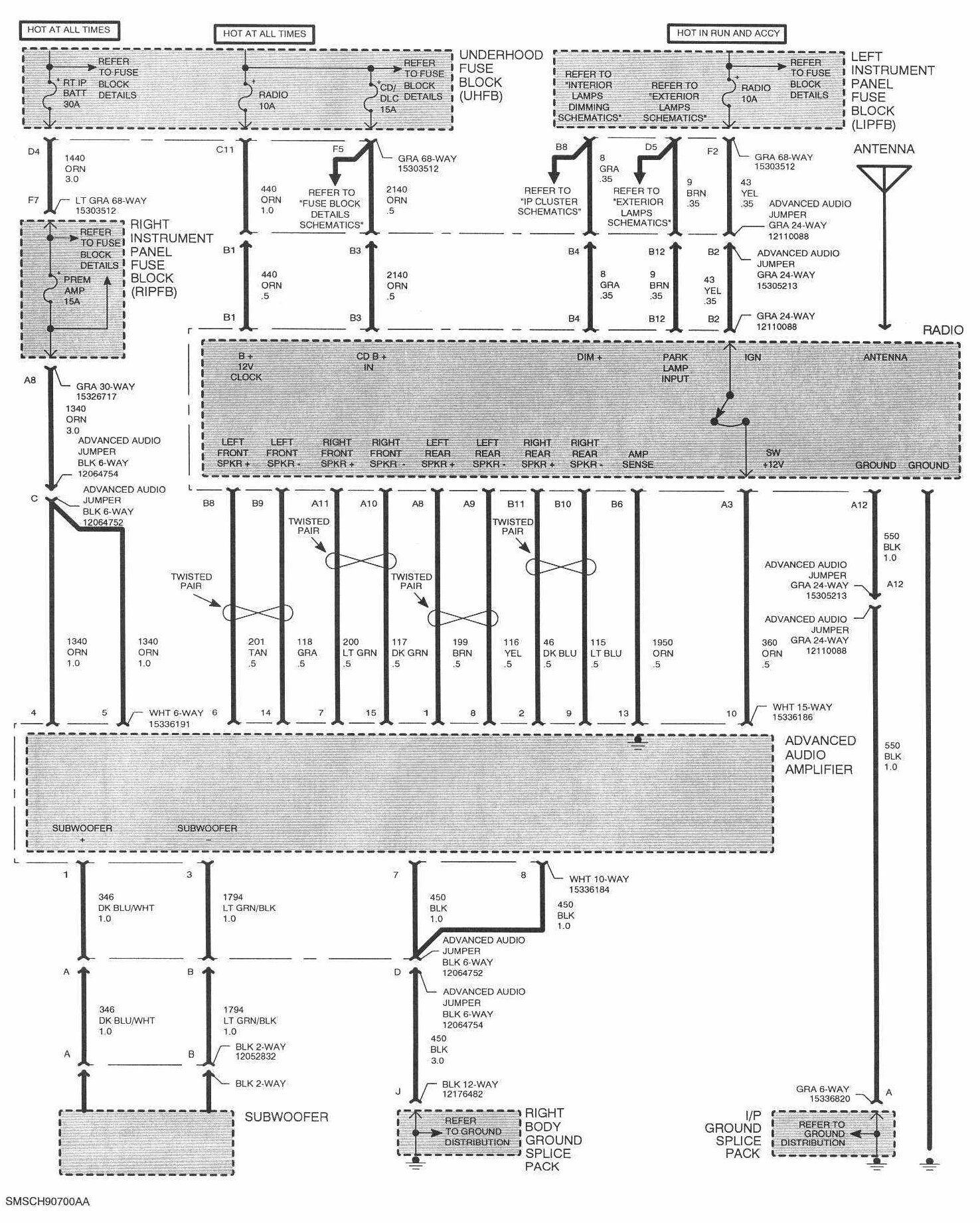

Radio (Audio) Advanced Audio System Schematic Part 1:

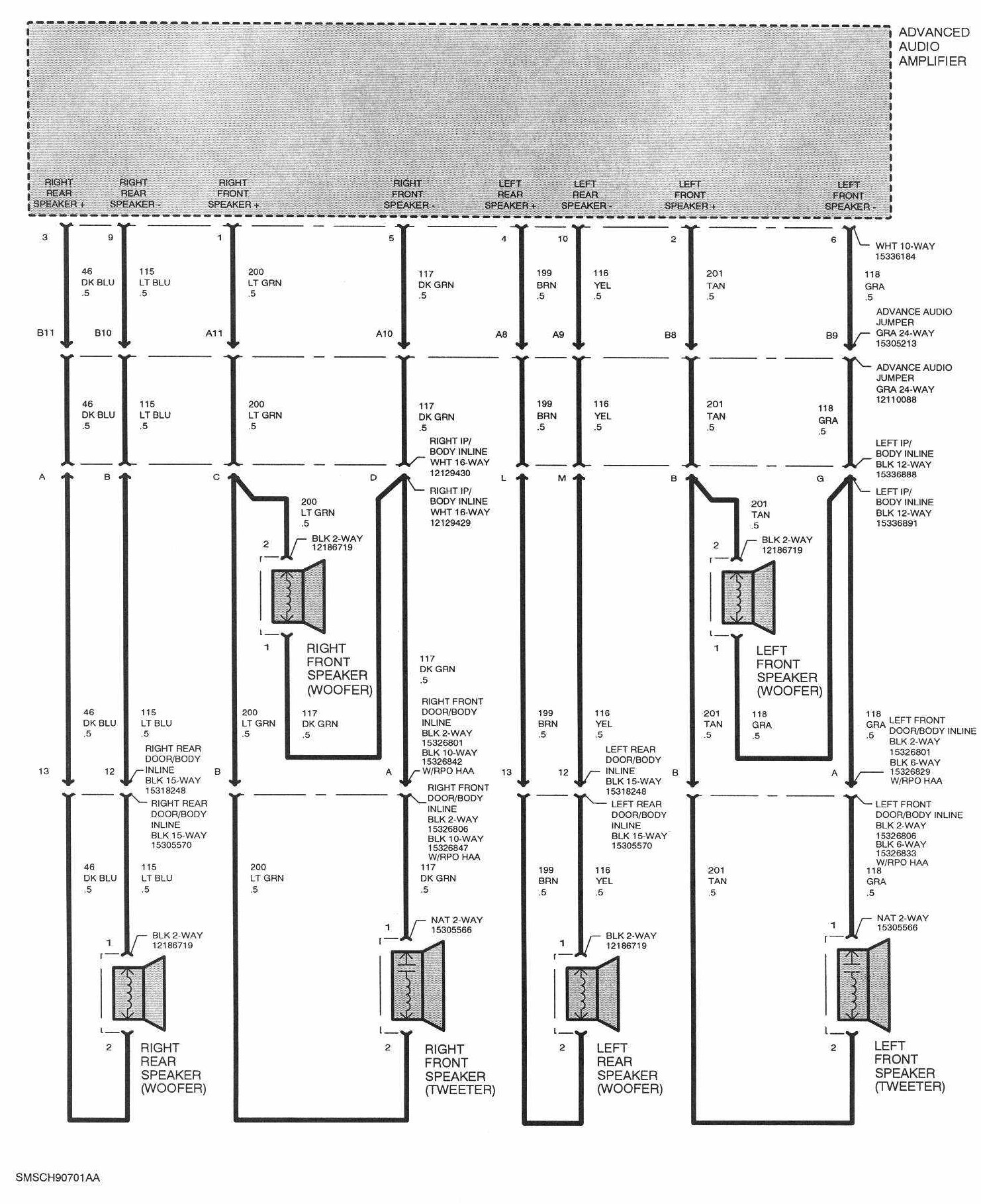

Radio (Audio) Advanced Audio System Schematic Part 2:
