Home >> Saturn >> 2002 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Fuel Controls >> Fuel Injectors

Fuel Injectors

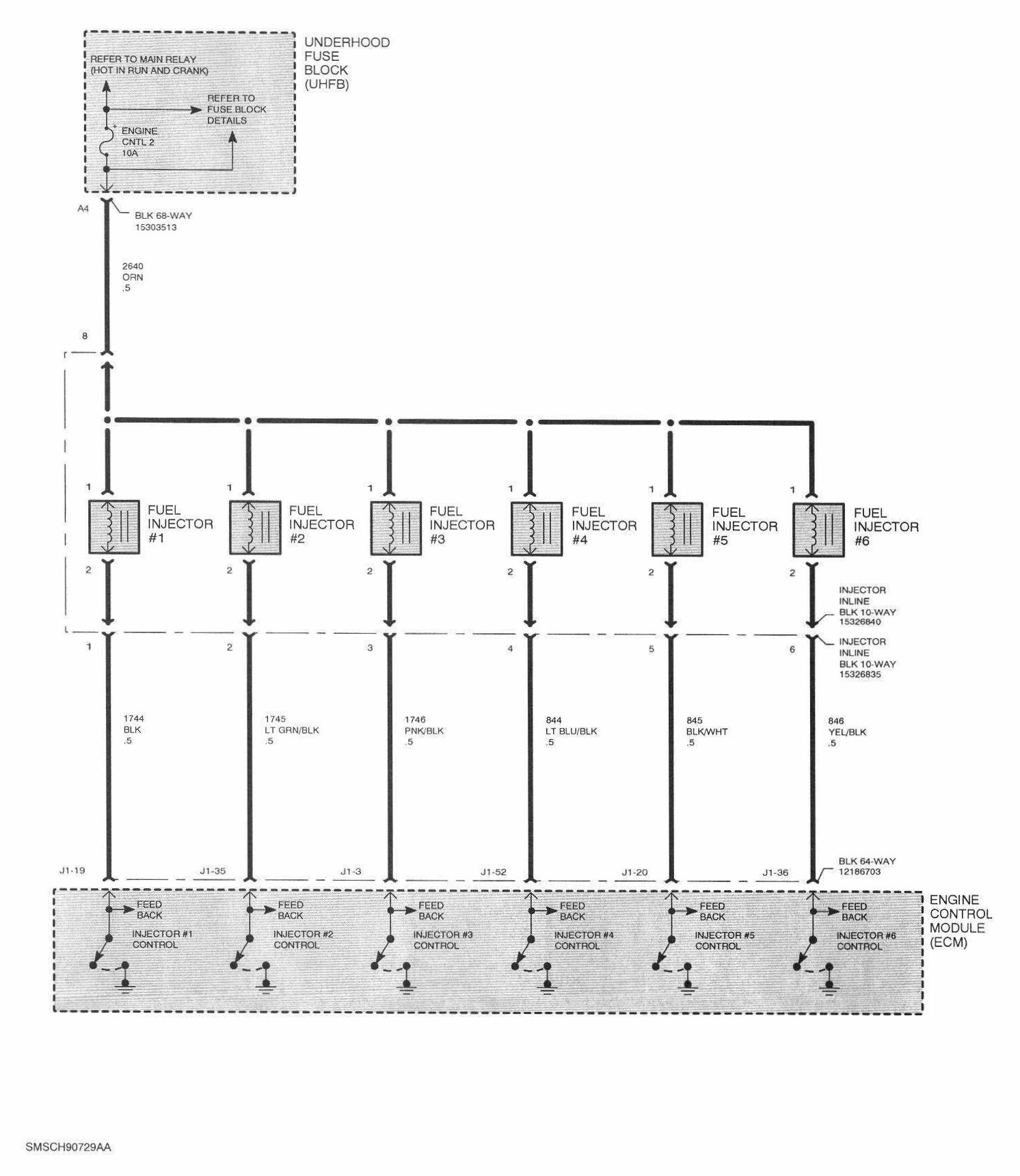

Engine Control Module (ECM) Schematics Part 10:
