Interior Lamps Dimming Connector Face Views

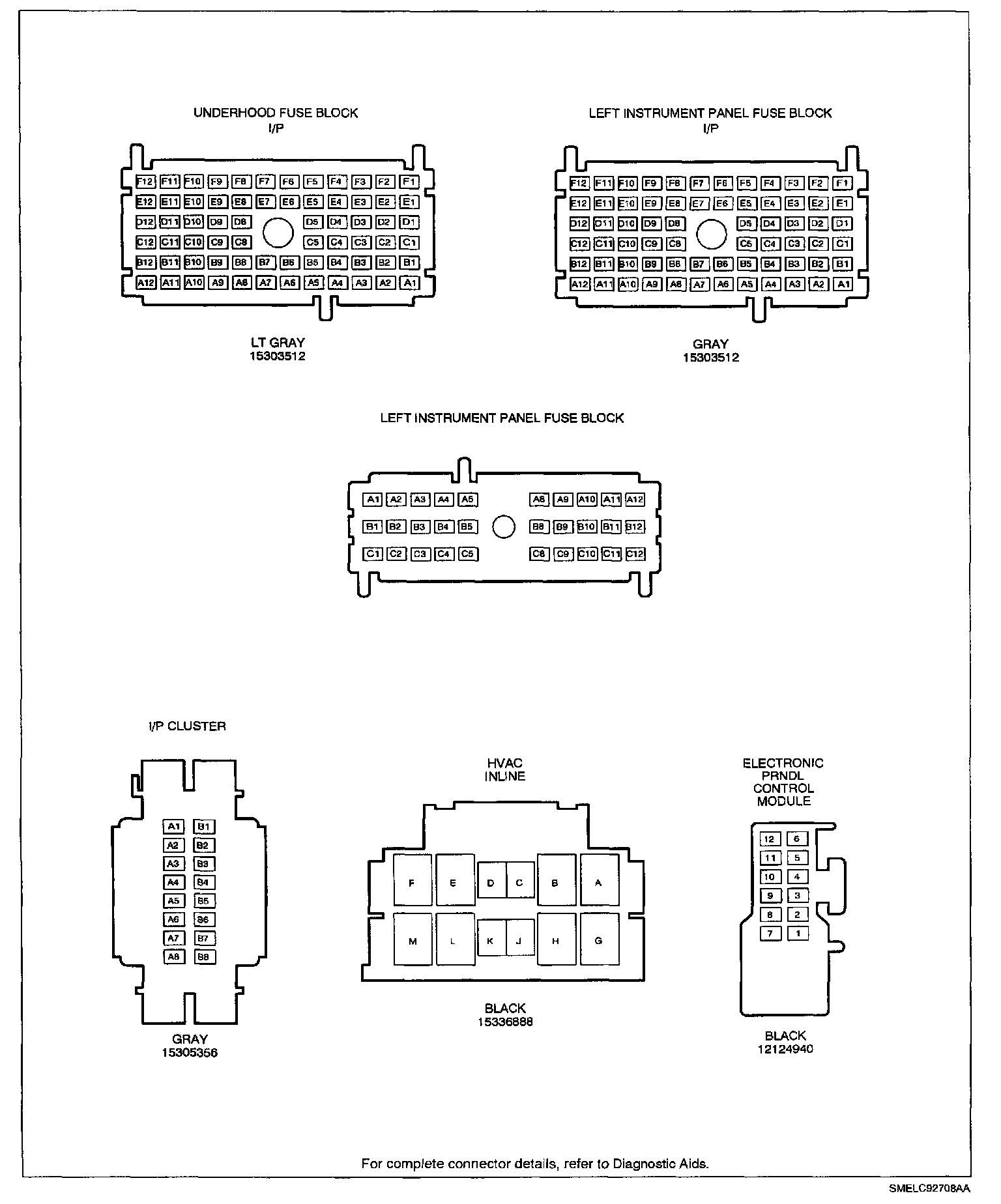

Interior Lamps Dimming Connector Face Views Part 1:

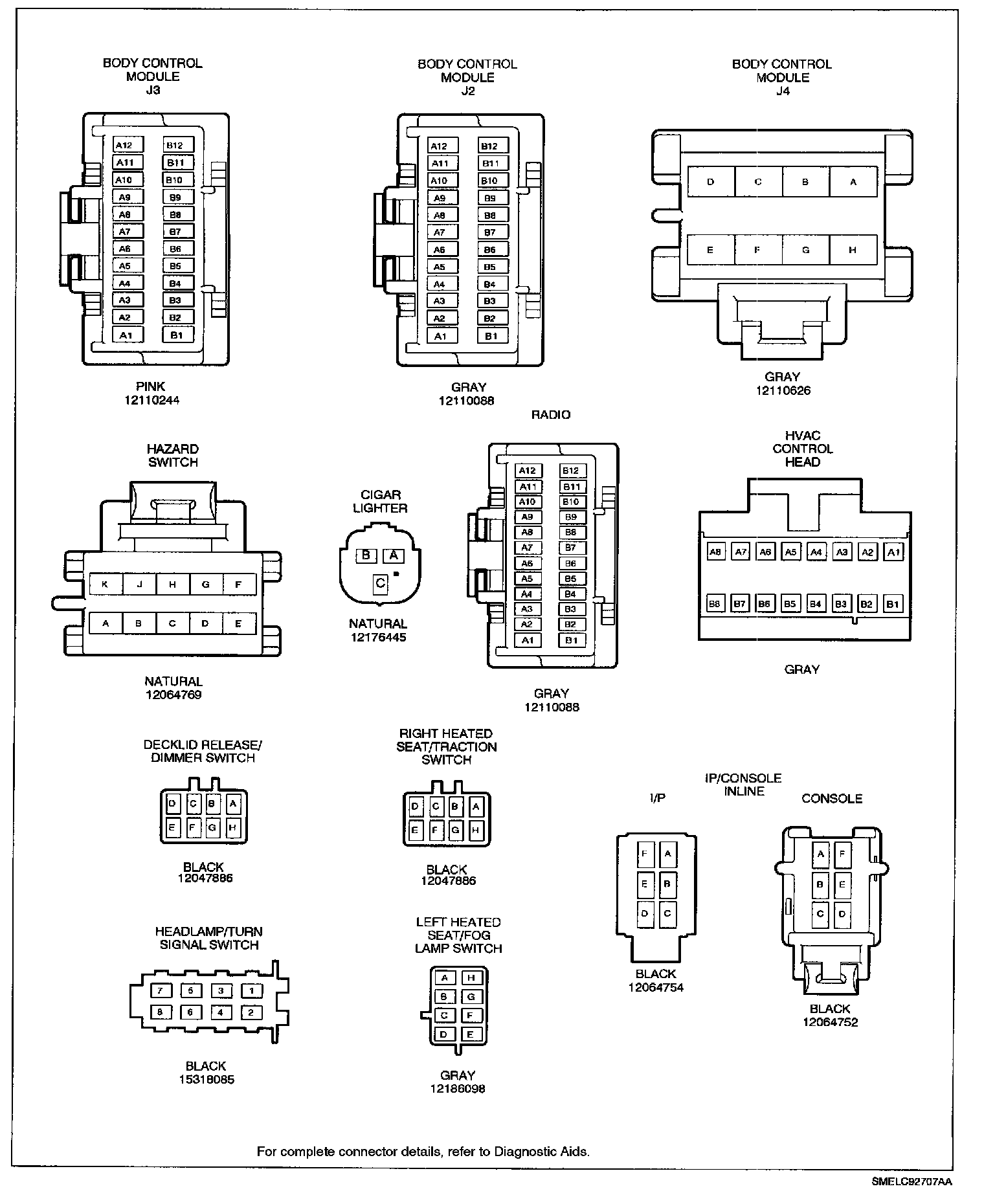

Interior Lamps Dimming Connector Face Views Part 2:
