Home >> Saturn >> 2002 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram >> HVAC Jumper to Recirc Actuator

HVAC Jumper to Recirc Actuator

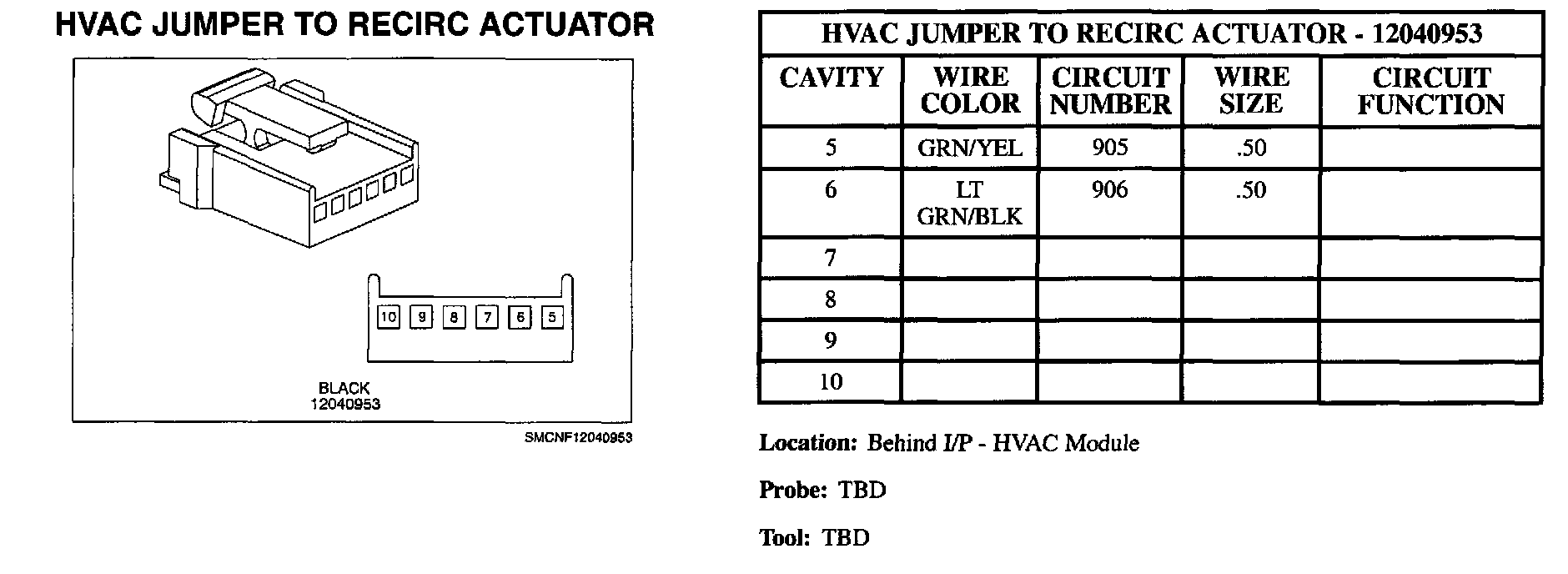

HVAC Jumper To Recirc Actuator:
