Engine Control Module (Engine J1)

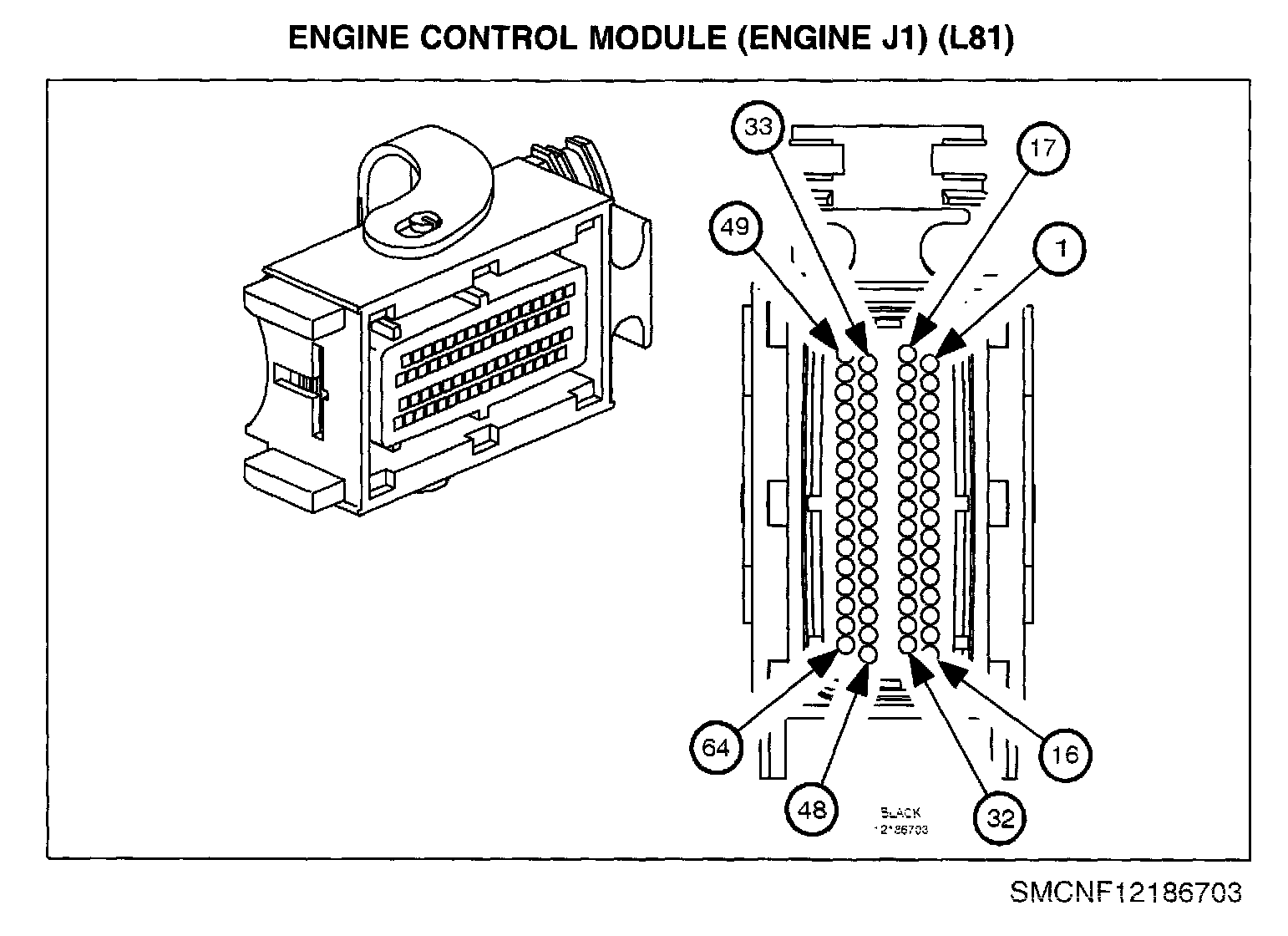

Engine Control Module (Engine J1) Part 1:

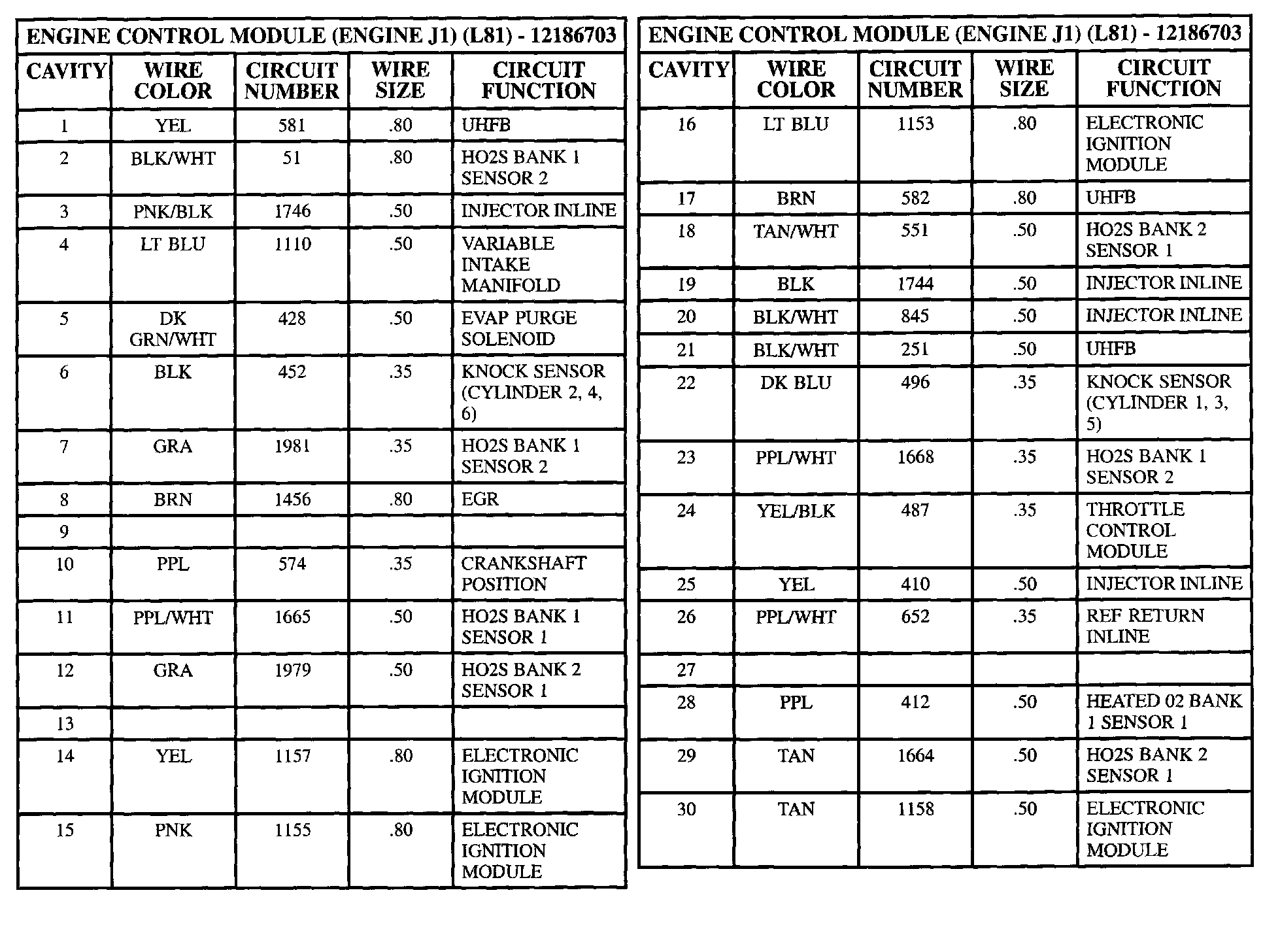

Engine Control Module (Engine J1) Part 2:

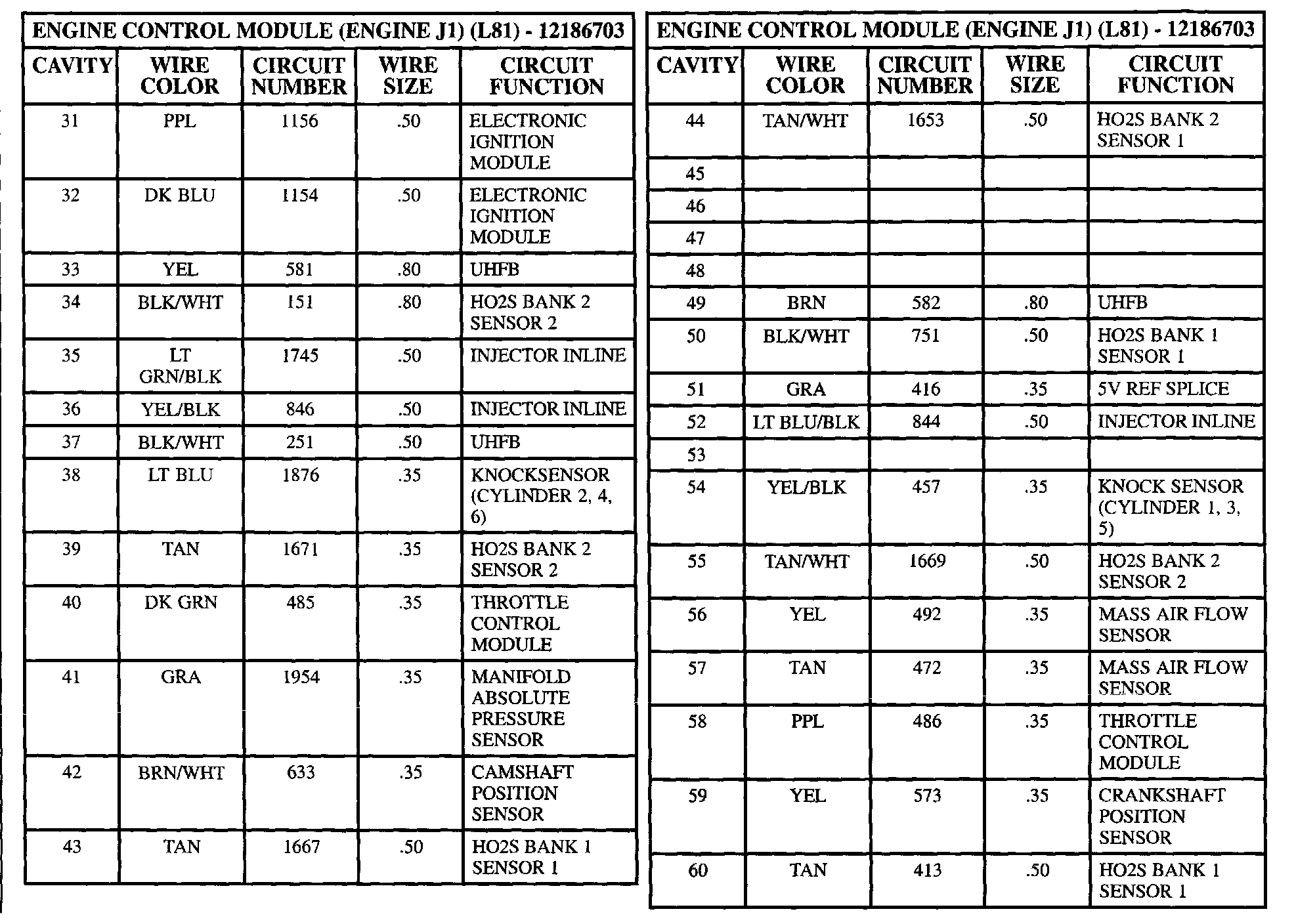

Engine Control Module (Engine J1) Part 3:

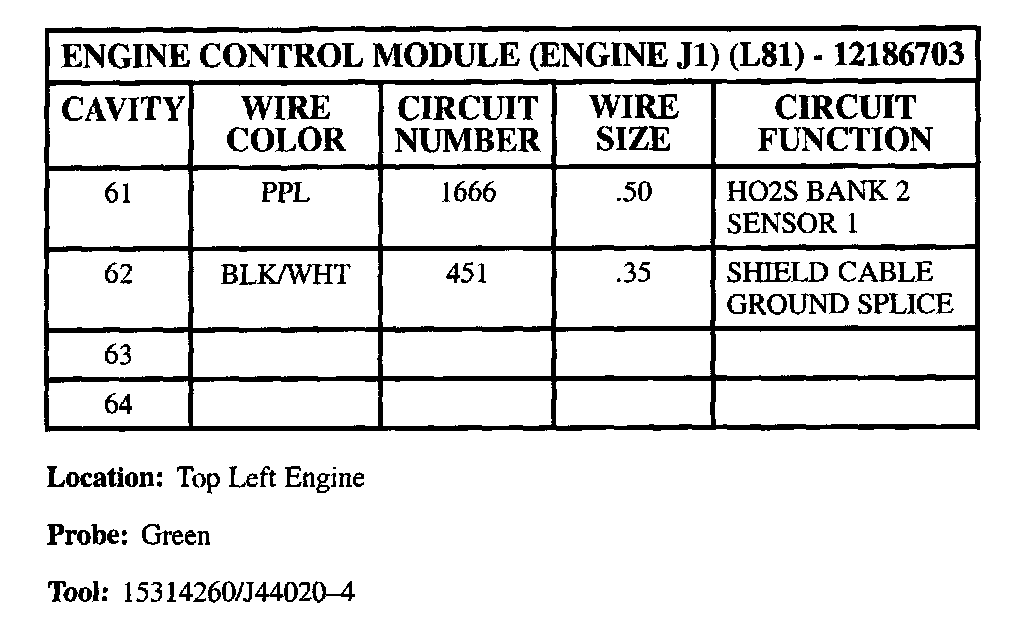

Engine Control Module (Engine J1) Part 4:
