Electronic Brake Traction Control Module

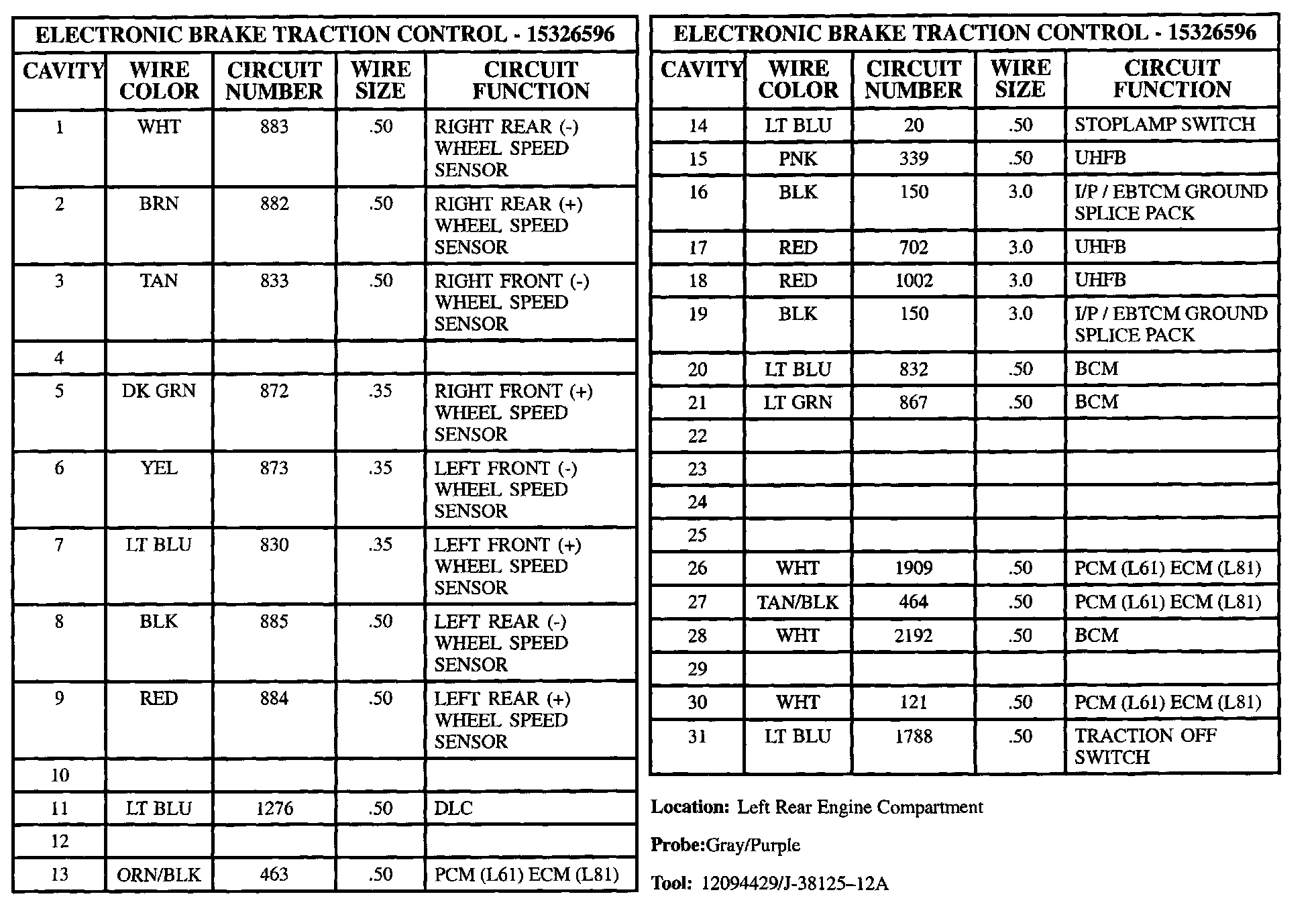

Electronic Brake Traction Control Module Part 1:

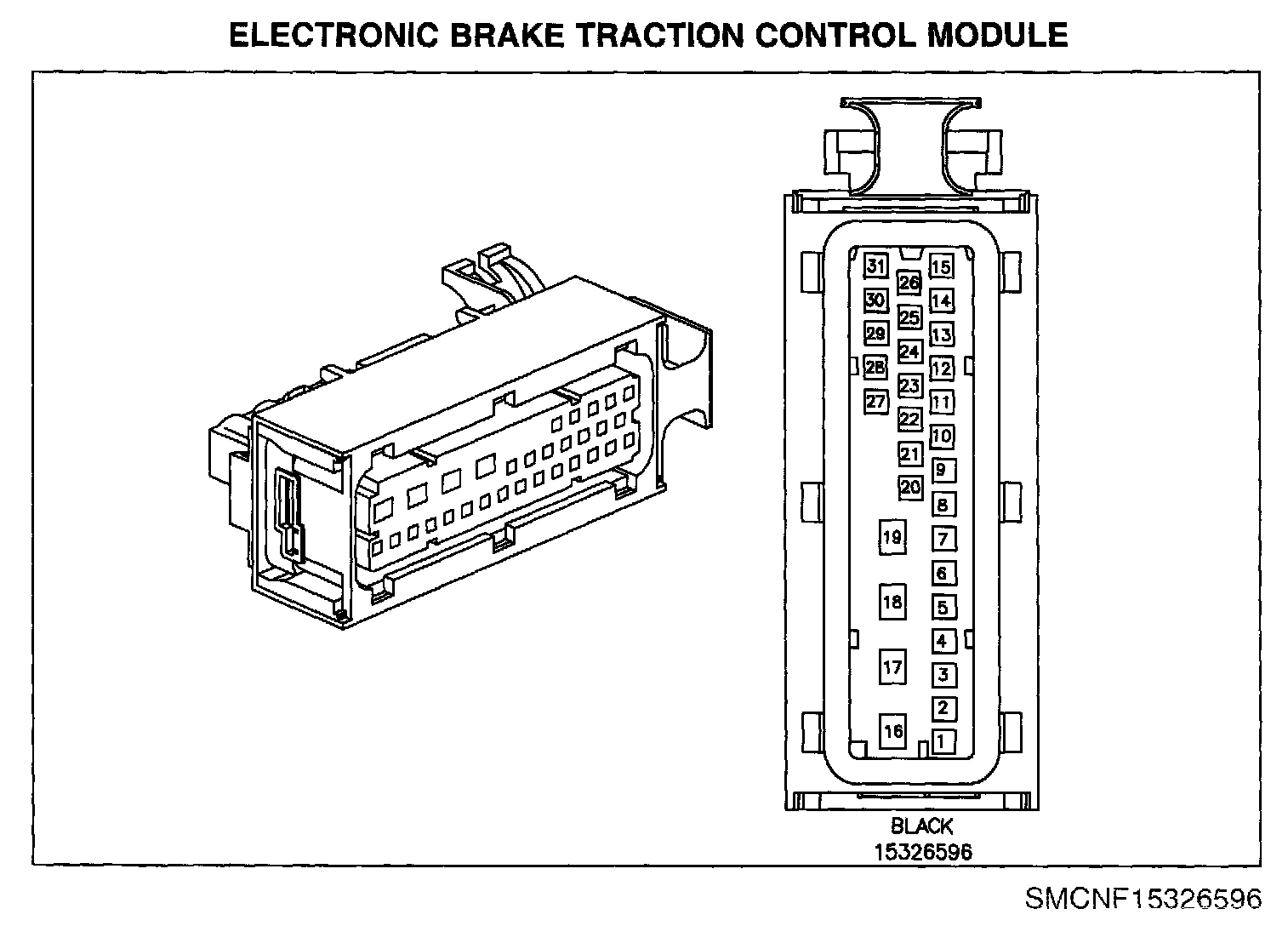

Electronic Brake Traction Control Module Part 2:
