Home >> Saturn >> 2002 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Onstar Module - J2

Onstar Module - J2

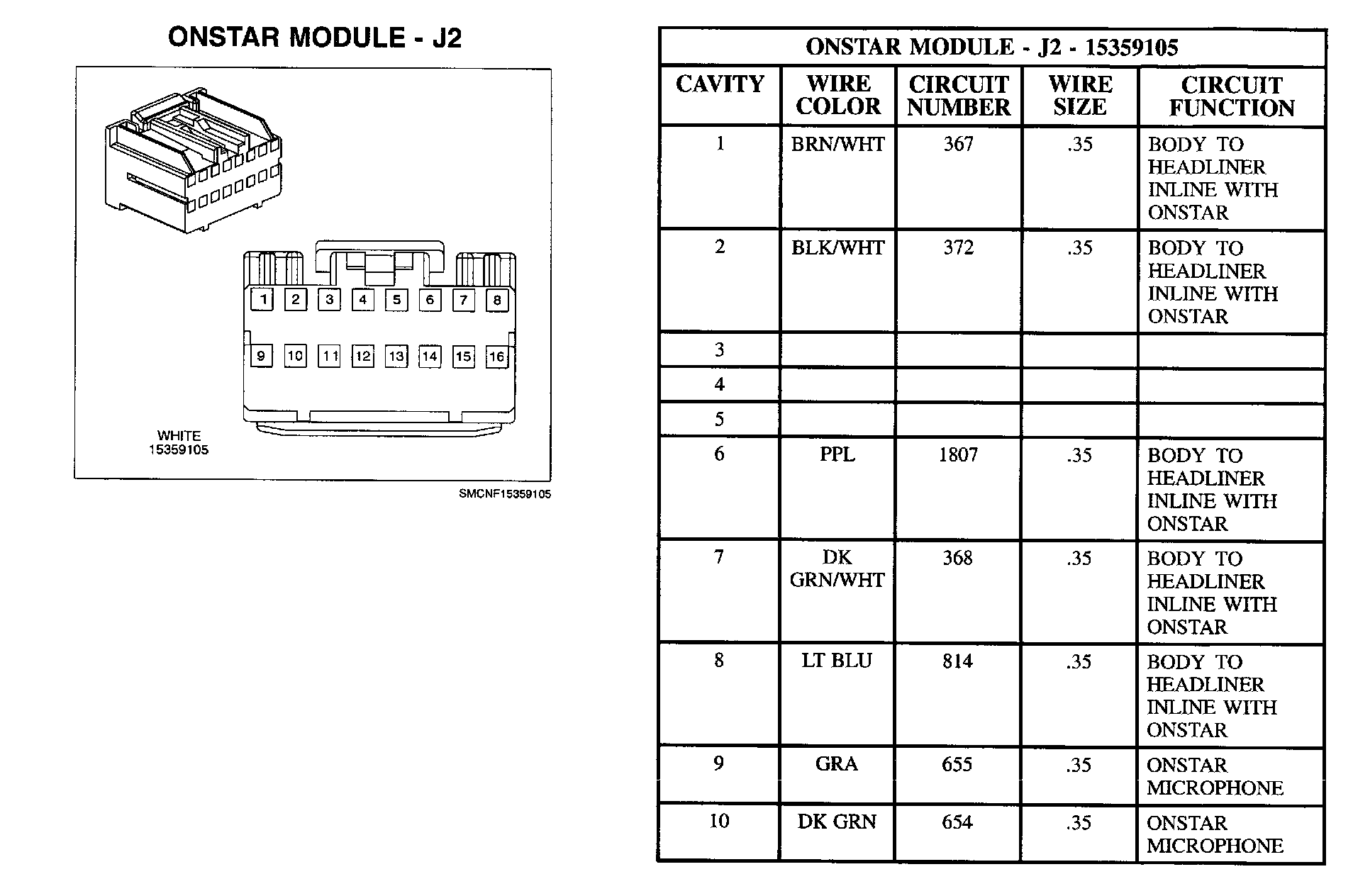

Onstar Module - J2 Part 1:

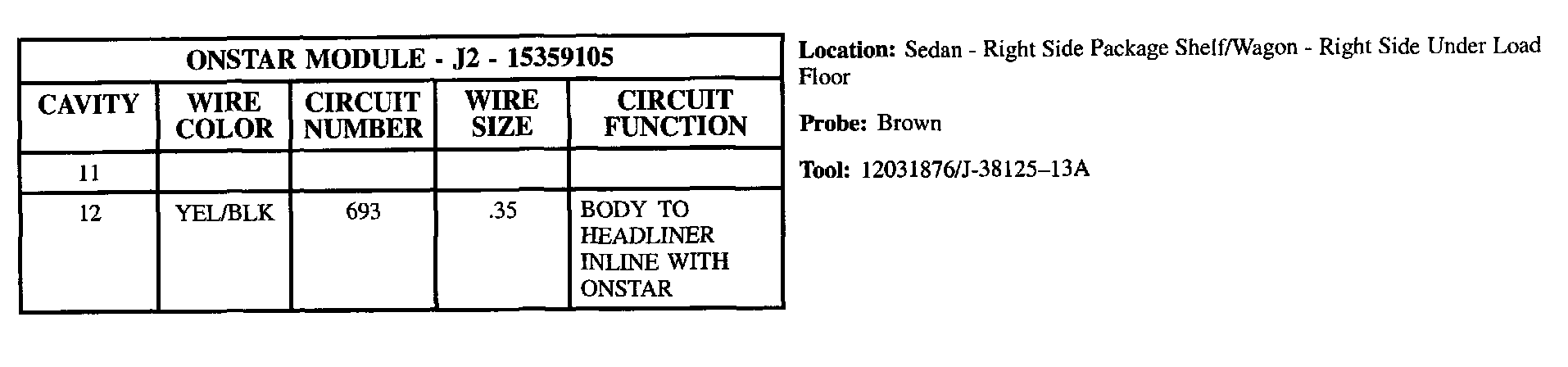

Onstar Module - J2 Part 2:
