Home >> Saturn >> 2002 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Position Sensor/Switch, A/T >> Passenger Inflator Module To Inflator - Harness

Passenger Inflator Module To Inflator - Harness

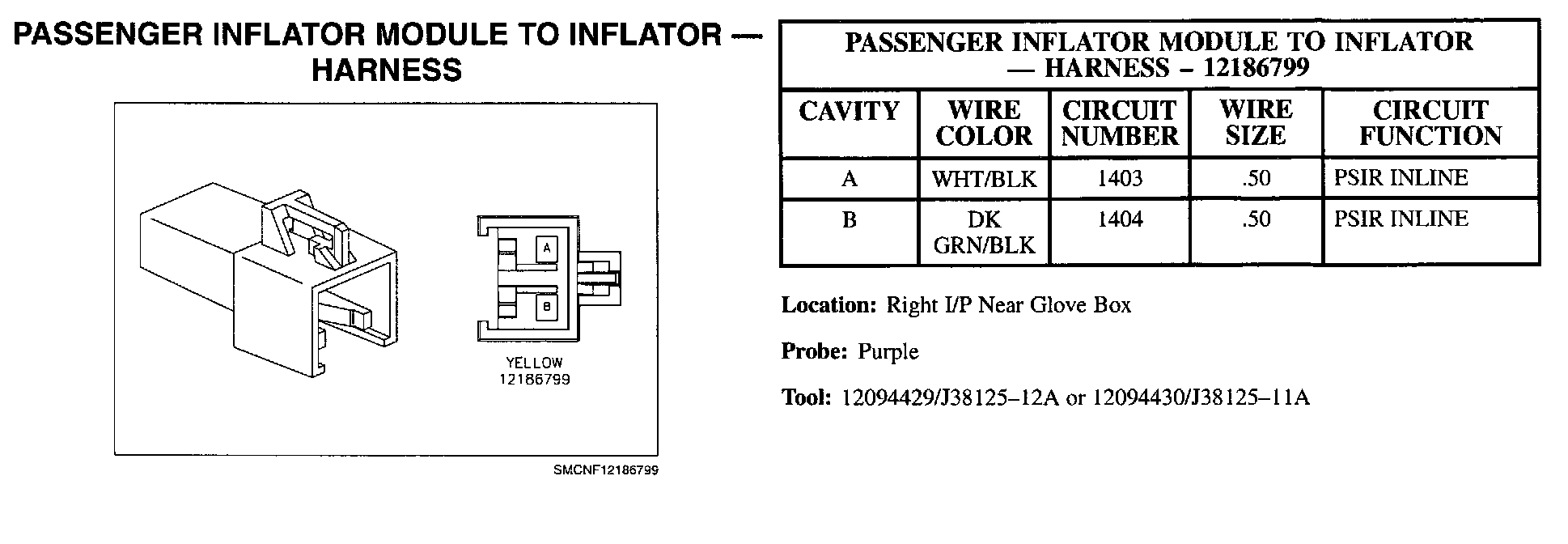

Passenger Inflator Module To Inflator - Harness:



Passenger Inflator Module To Inflator - Inflator:
