Front Floor Console Storage Tray Replacement




Front Floor Console Storage Tray Replacement

Removal Procedure

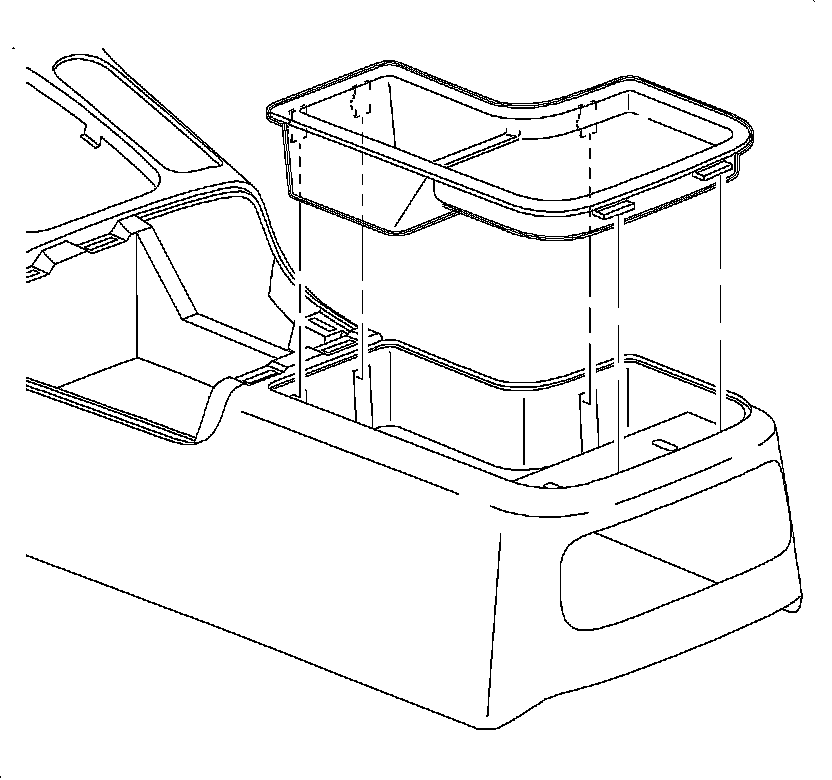

1. Gently pry on the storage tray to disengage the clips.
2. Remove the storage tray.

Installation Procedure




1. Install the storage tray to the console.
2. Snap the storage tray into console.
