Front Floor Console Compartment Replacement

Front Floor Console Compartment Replacement

Removal Procedure

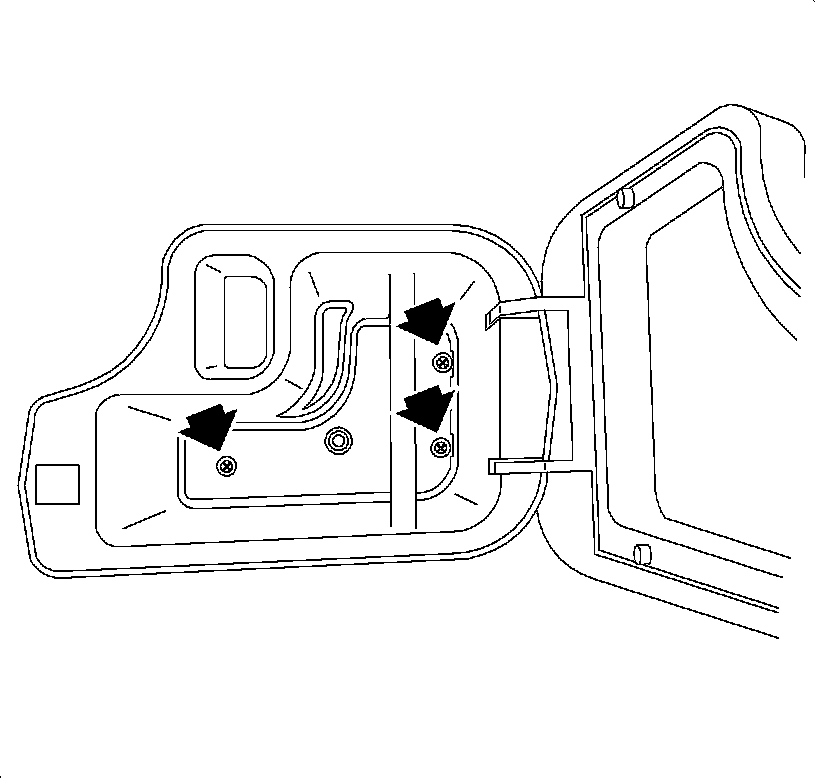

1. Remove the 3 retaining screws
2. Remove the storage bin from the console.

Installation Procedure




1. Install the storage bin to the console.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the 3 retaining screws.

Tighten the screws to 2 Nm (18 lb in).
