Body to Right Door Inline - Jumper

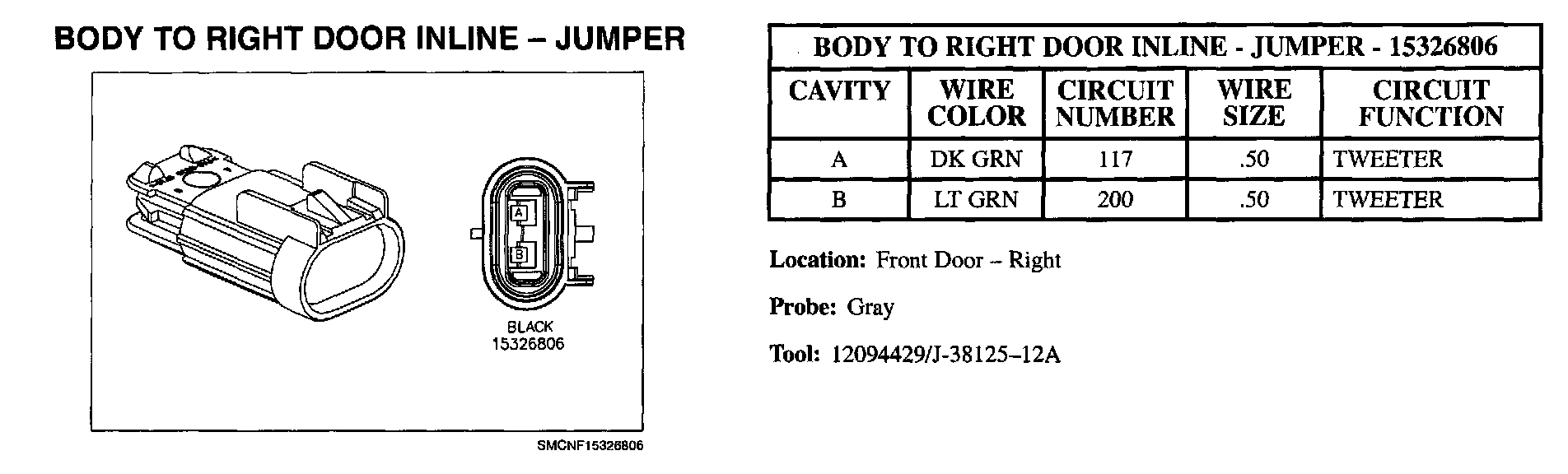

Body To Right Door Inline - Jumper:



Body To Right Door Inline - Jumper:
