Remote CD Changer/Player Operation (AM/FM Stereo W/ Cassette & In-Dash CD Player) SYS Check

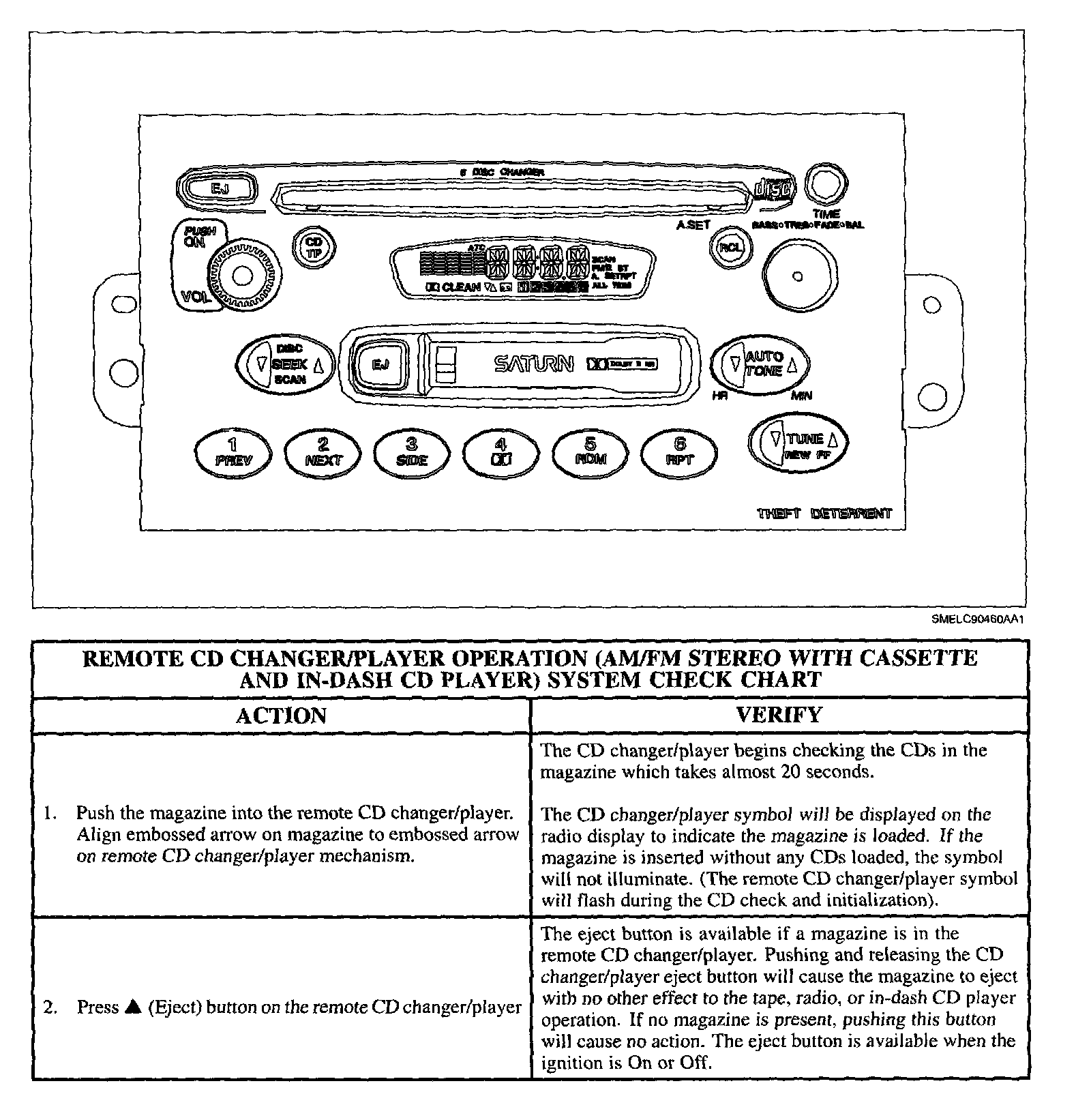

Remote CD Changer/Player Operation (AM/FM Stereo With Cassette And In-Dash CD Player) System Check Part 1:

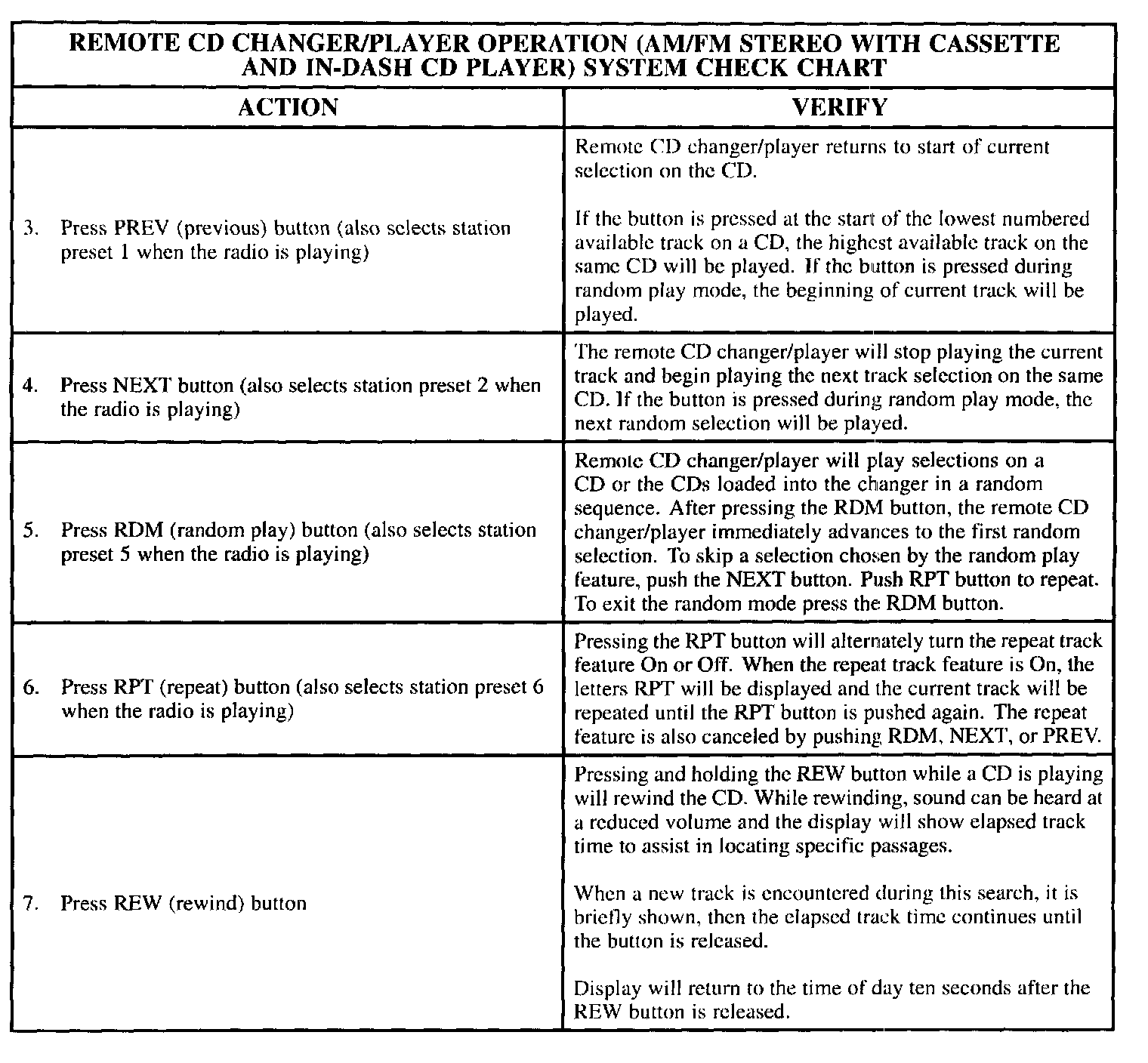

Remote CD Changer/Player Operation (AM/FM Stereo With Cassette And In-dash CD Player) System Check Part 2:

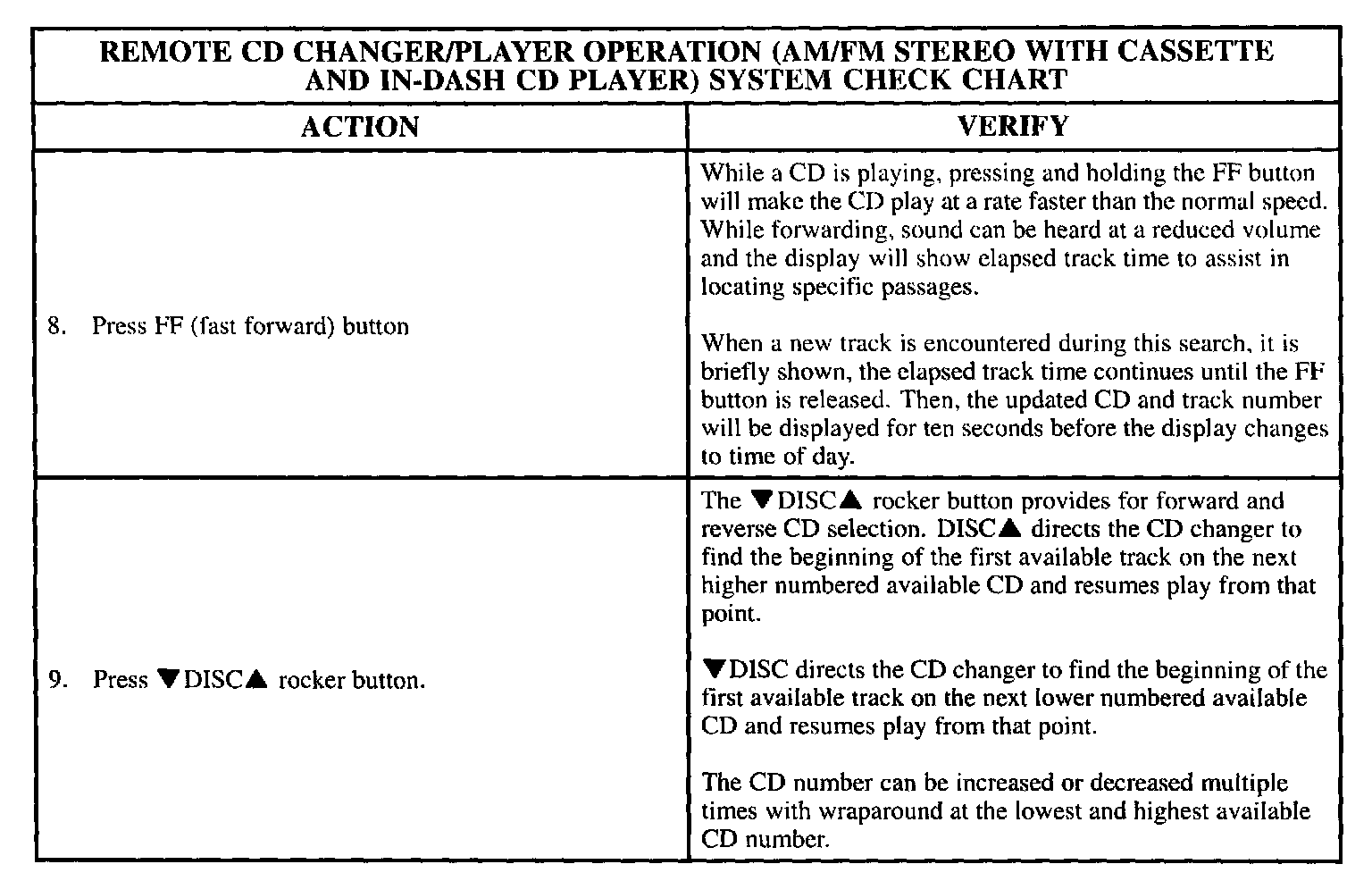

Remote CD Changer/Player Operation (AM/FM Stereo With Cassette And In-dash CD Player) System Check Part 3:





IMPORTANT: If a CD in the remote CD changer/player has moisture on it or is accidentally loaded into the cartridge upside-down, initialization of that CD will not be completed. The upside-down CD will be skipped and the system will automatically select and play the next higher available properly loaded CD. If no CD can be played, "Err" will temporarily appear on the display and the system will return to the last played mode. Also, in random play mode, the "bad" CD is ignored as if no CD is in that slot.
