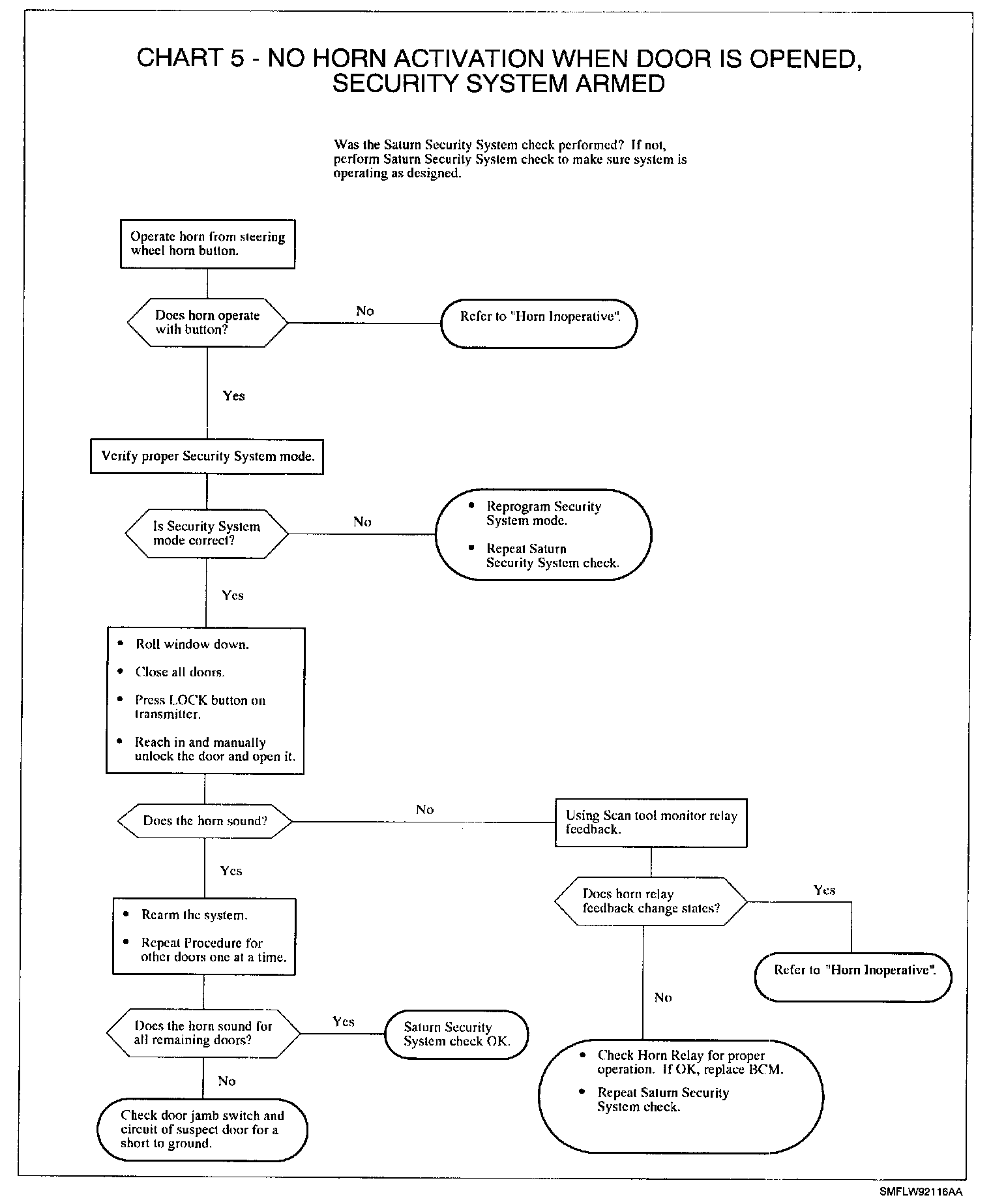

Chart 5 - No Horn Activation When DR Is Opened, Security SYS Armed
Chart 5 - No Horn Activation When DR Is Opened, Security SYS Armed
Diagnostic Chart 5:
