Security System Circuit Chart
Security System Circuit Chart

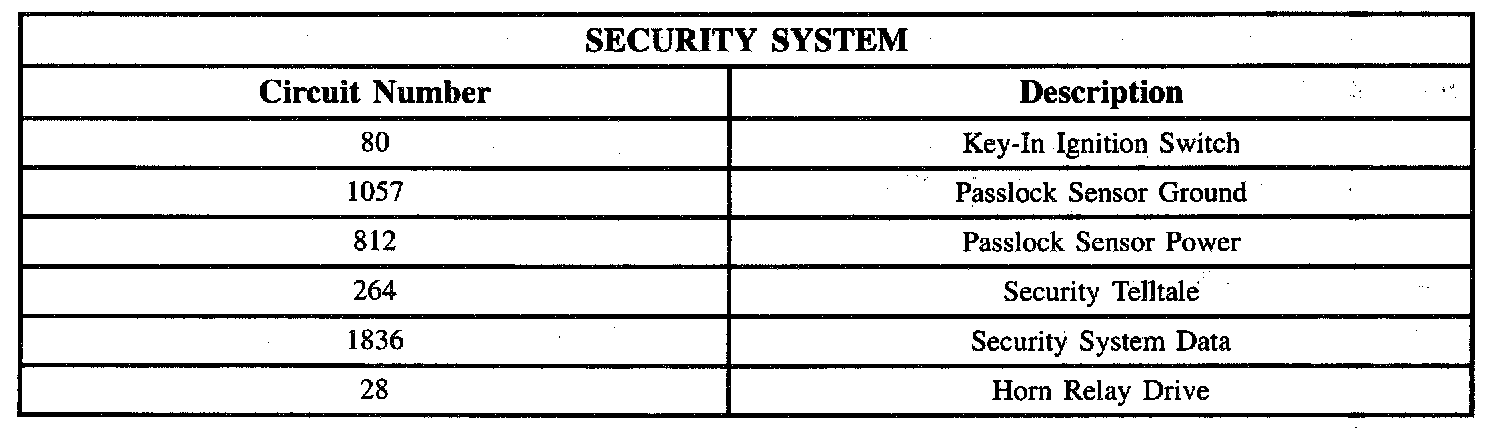

Security System Circuit Check:
Circuit assignments for the
Body Control Module
(
BCM
)
relating to security system:
