Home >> Saturn >> 2001 >> LW300 V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Remote Keyless Entry (RKE)/Security System - Schematics

Remote Keyless Entry (RKE)/Security System - Schematics

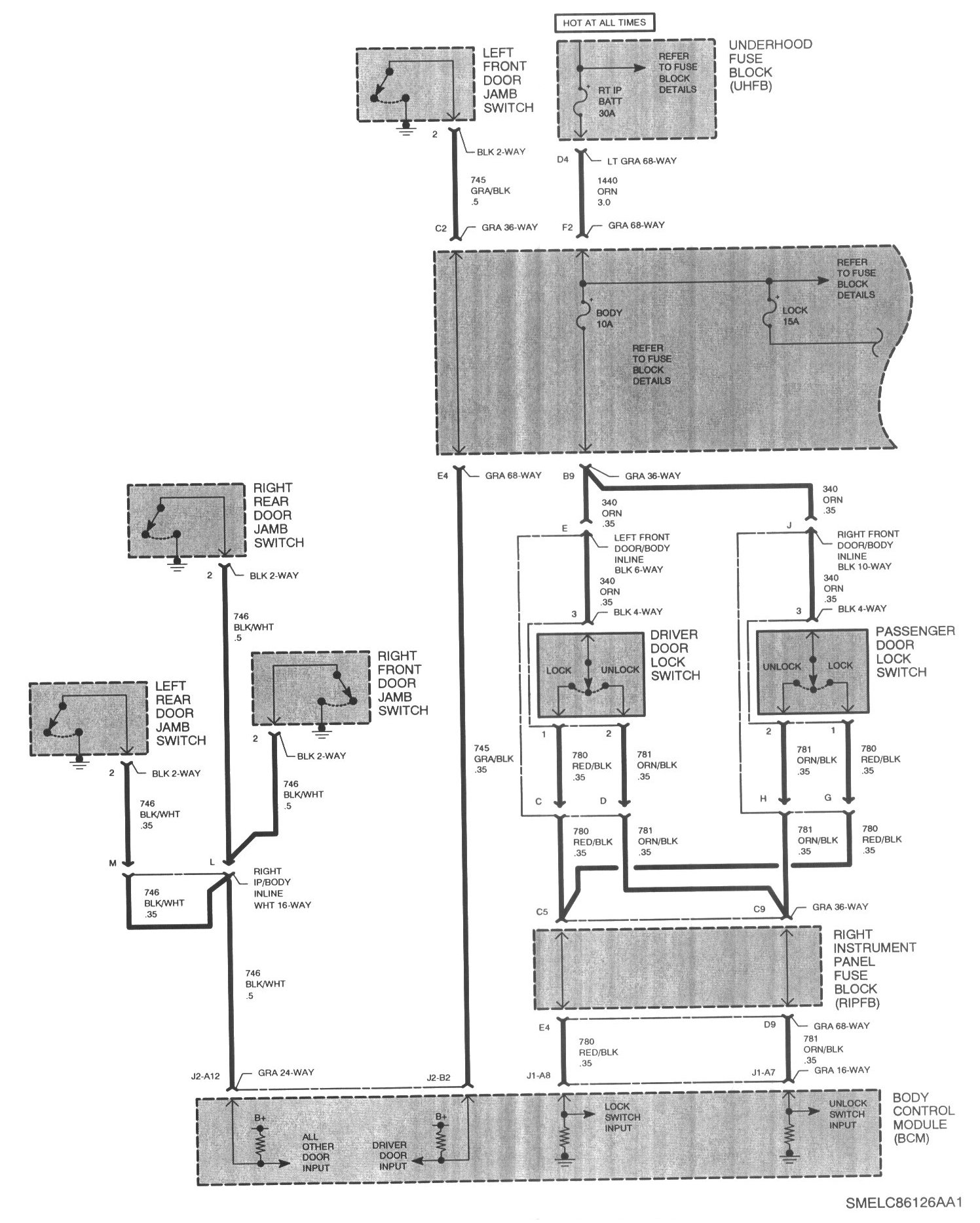

RKE:

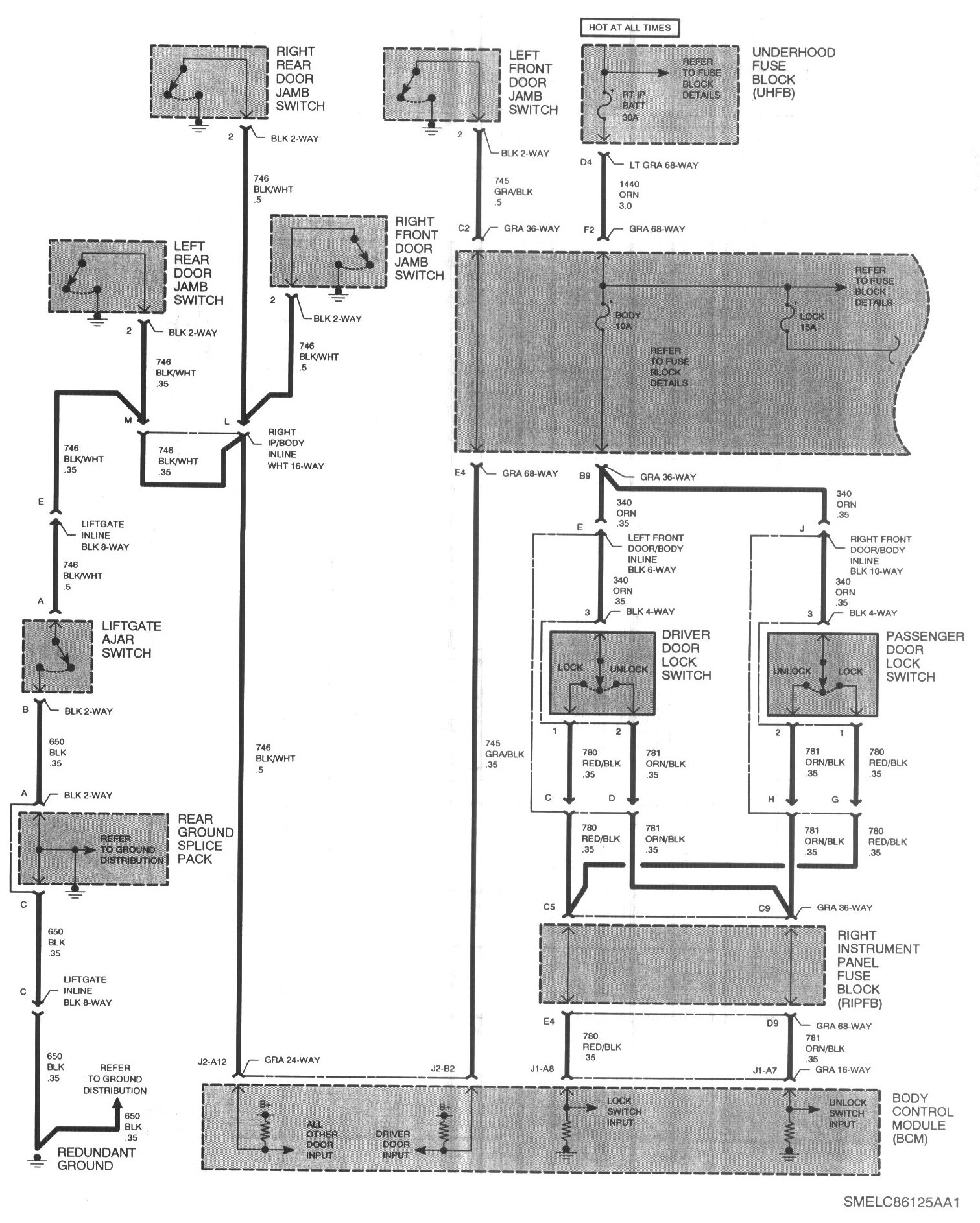

RKE:

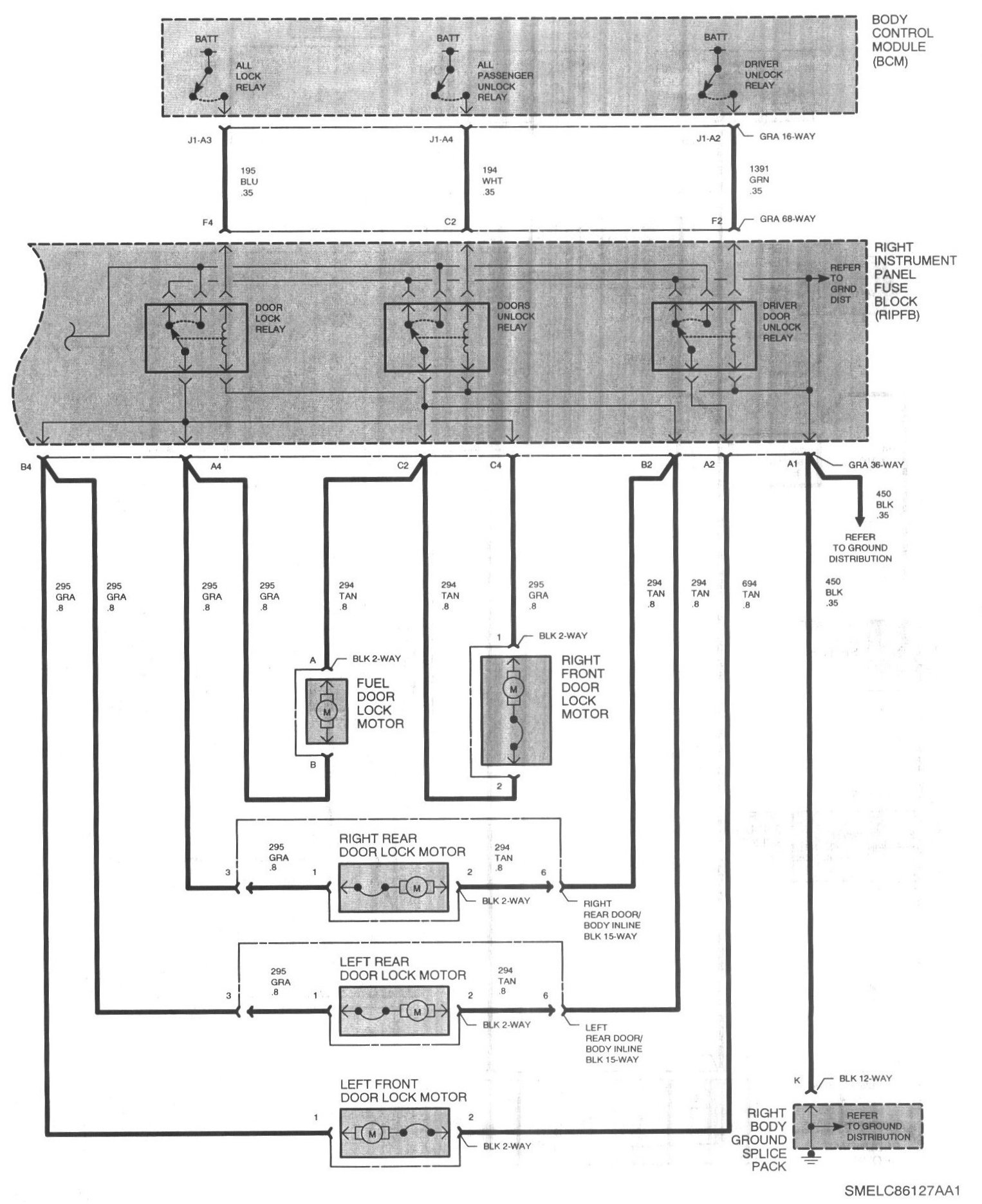

RKE Common:
