Stub Axle Shaft Sleeve

STUB AXLE SHAFT SLEEVE

- TOOLS REQUIRED
- J41228 Stub Shaft Sleeve Installer
- SA921 IT-2 5th Gear Remover

REMOVAL
1. Remove stub axle shaft.





2. Remove snap rings from stub axle shaft.

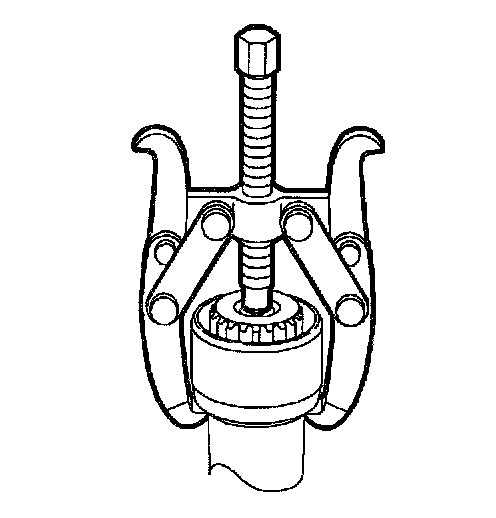

3. Remove sleeve from stub axle shaft using 5th Gear Remover SA9211T-2.

INSTALLATION
1. Use Stub Shaft Sleeve Installer J41228, to install a new sleeve on stub axle shaft. Ensure collet is located in snap ring groove when installing.





2. Install stub axle shaft.
3. Check fluid level.
4. Inspect shaft and seal for fluid leaks.
