Clutch Slave Cylinder Replacement

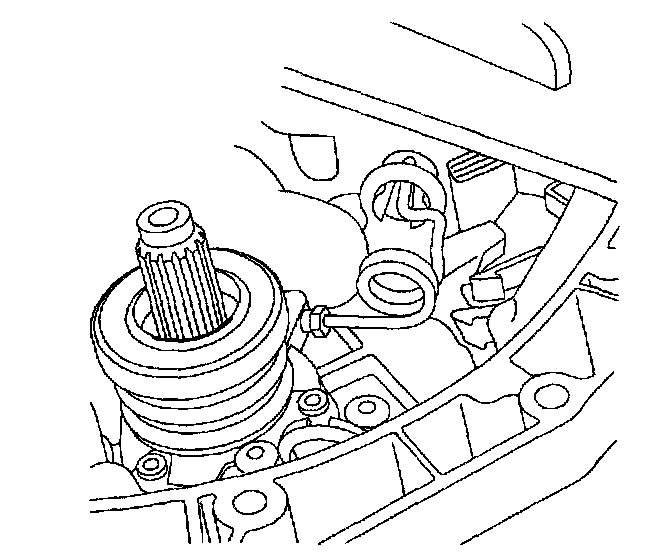

CLUTCH SLAVE CYLINDERREMOVAL
1. Remove transaxle.
2. Remove hydraulic line from slave cylinder.
3. Remove slave cylinder bolts and slave cylinder.
INSTALLATION
1. Install slave cylinder, use Loctite 592(R) (P/N21485278) thread sealant on the screws.
Torque:
Slave Cylinder Fasteners: 10 Nm (89 inch lbs.)
2. Connect hydraulic line to slave cylinder.
3. Bleed slave cylinder.
4. Install transaxle.
