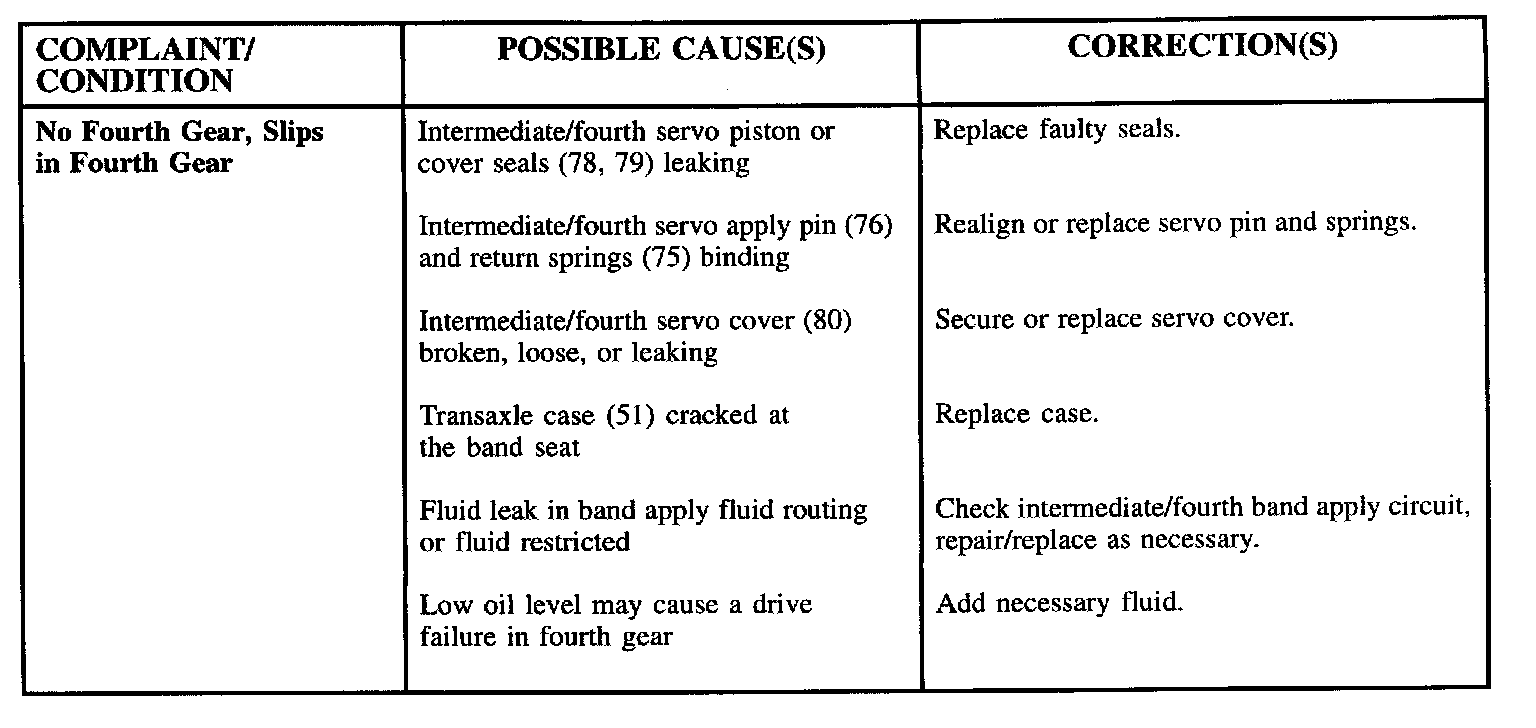

Transaxle Performance Charts

TRANSAXLE PERFORMANCE CHARTS

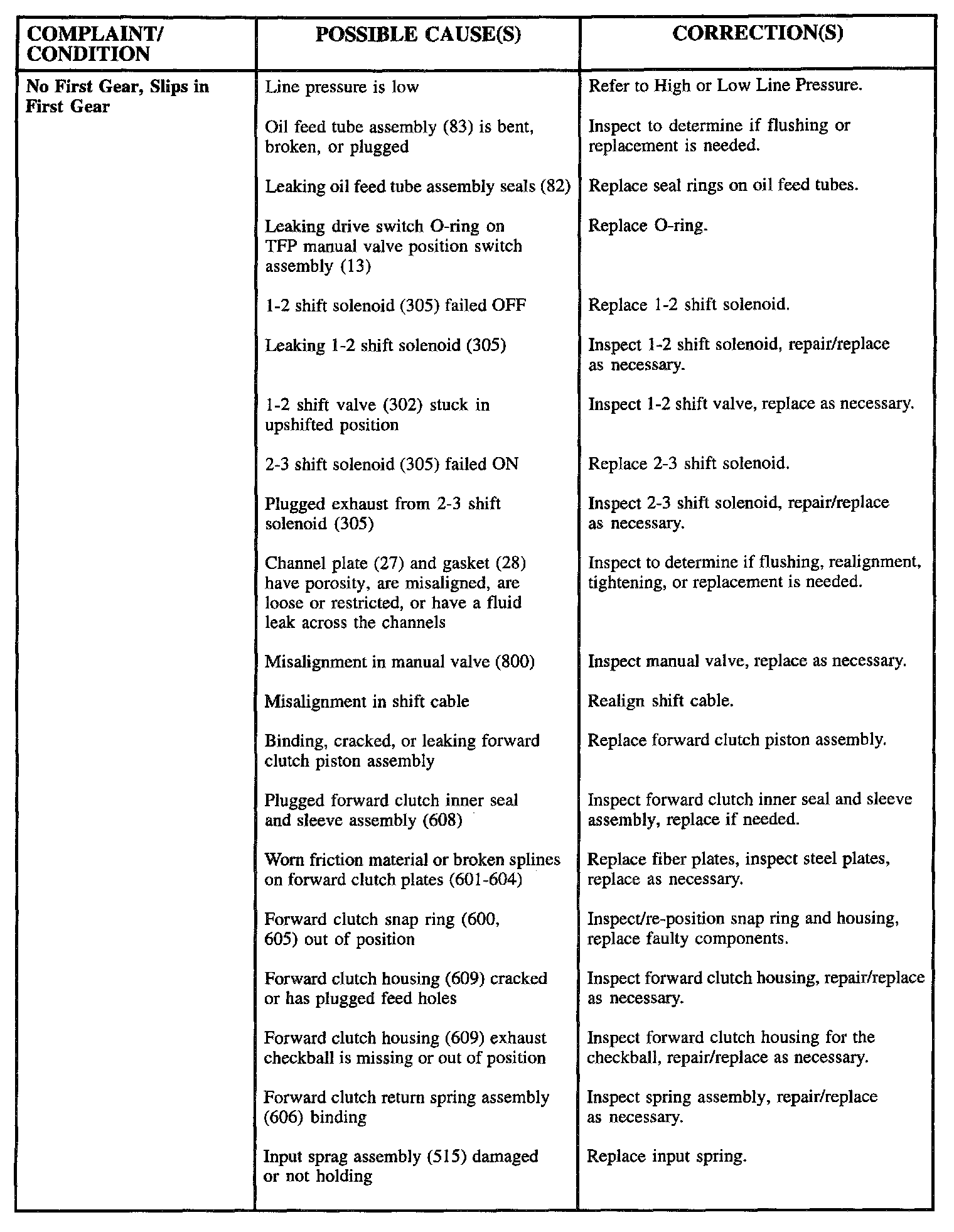

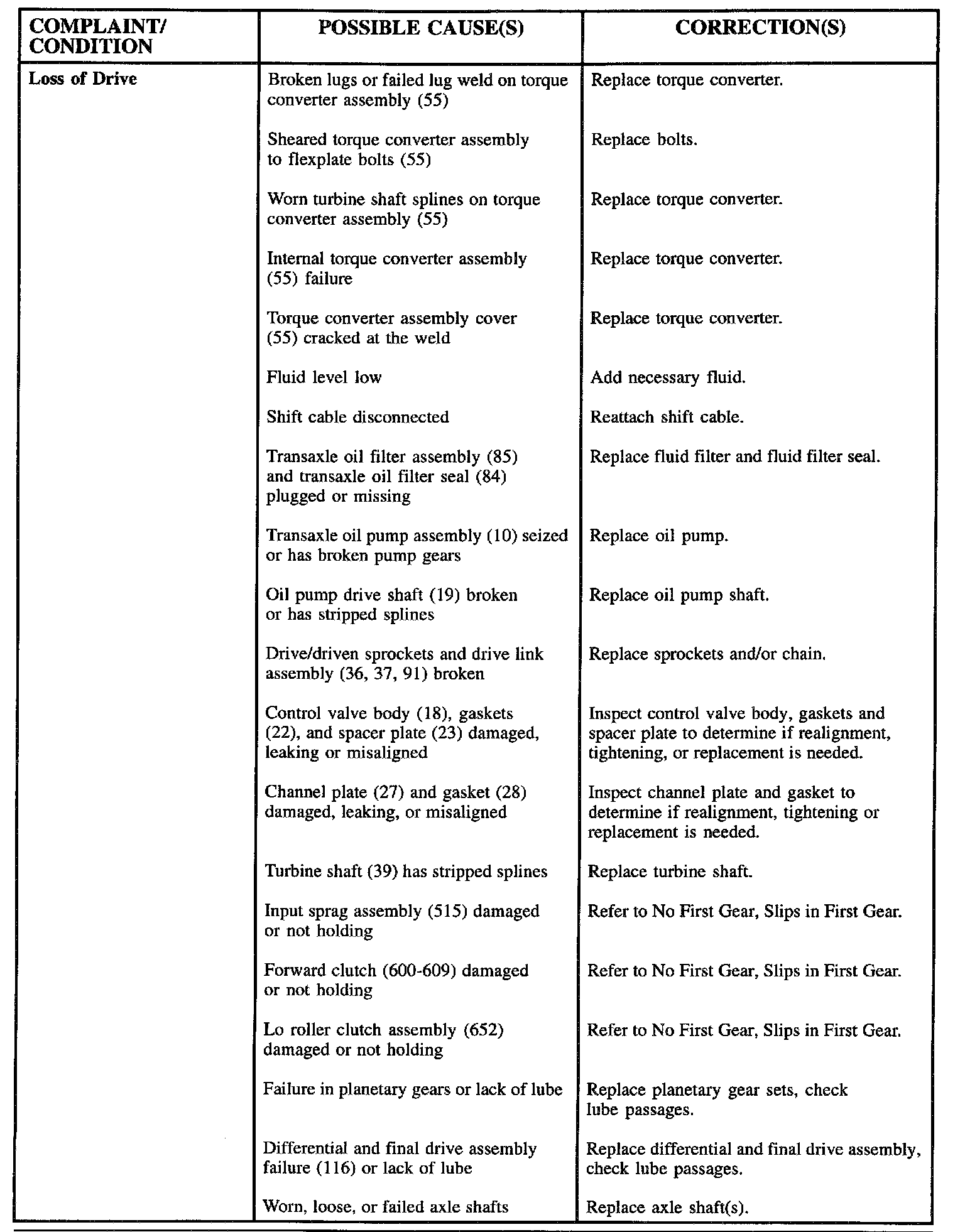

Part 1 of 18

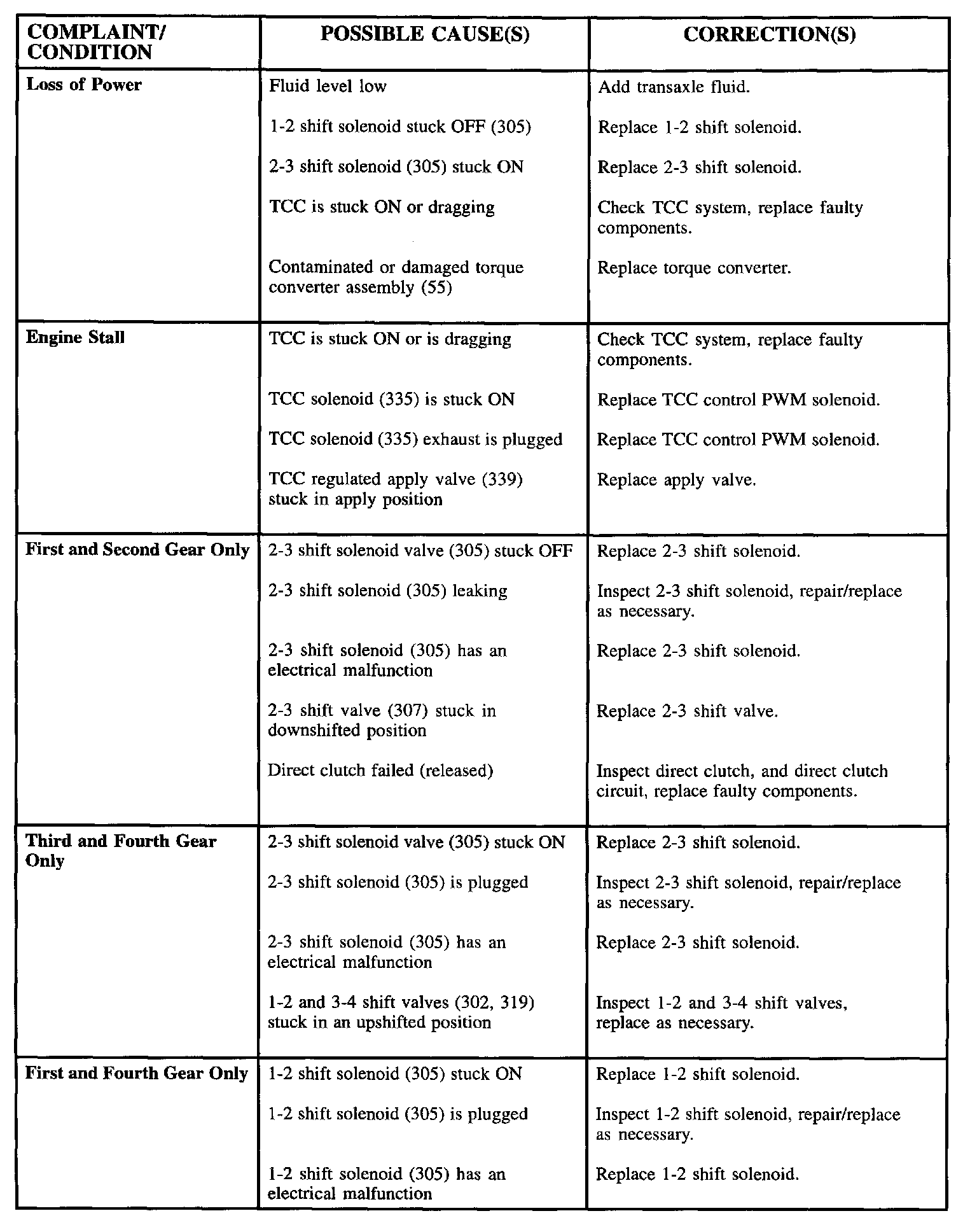

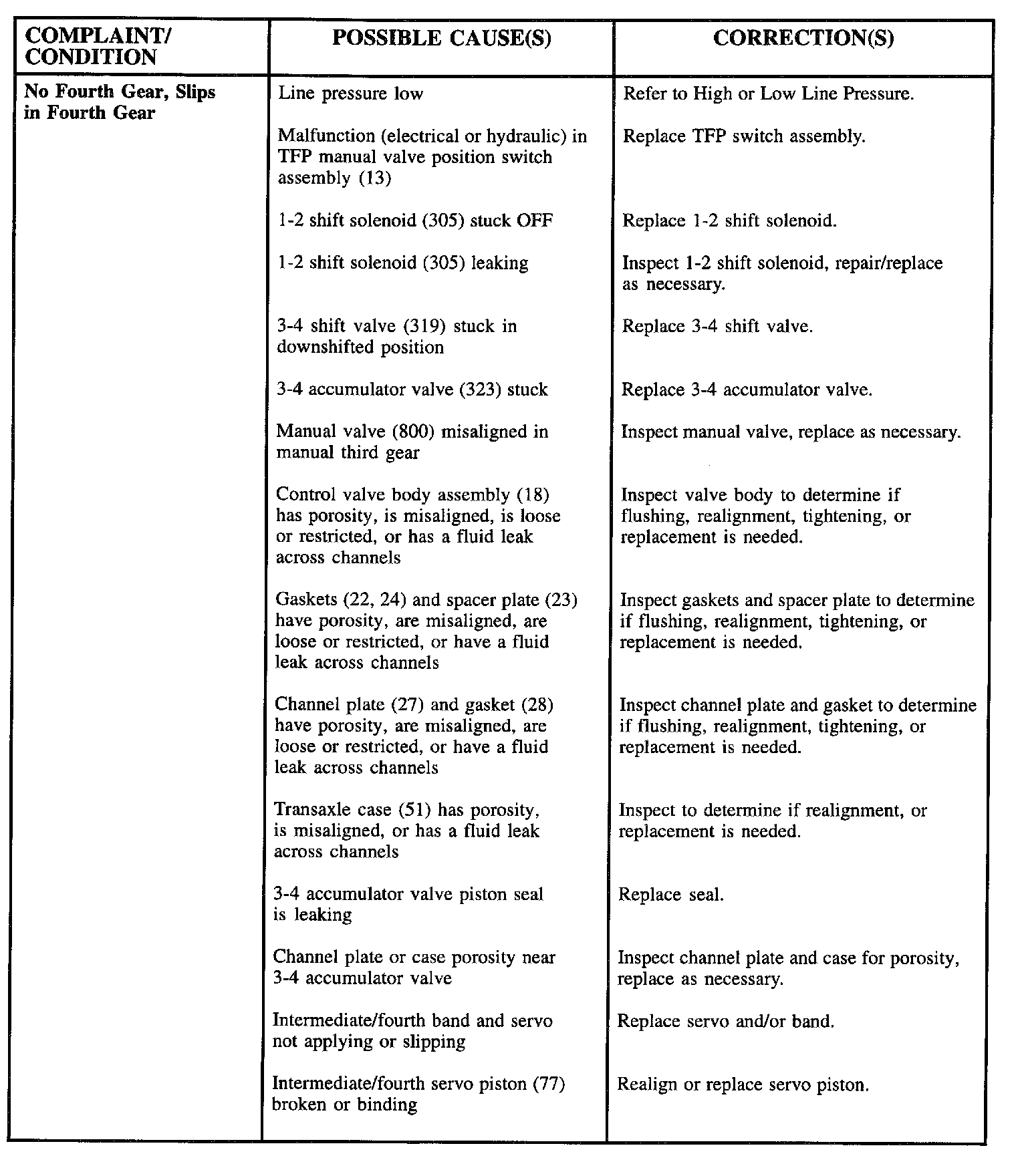

Part 2 of 18

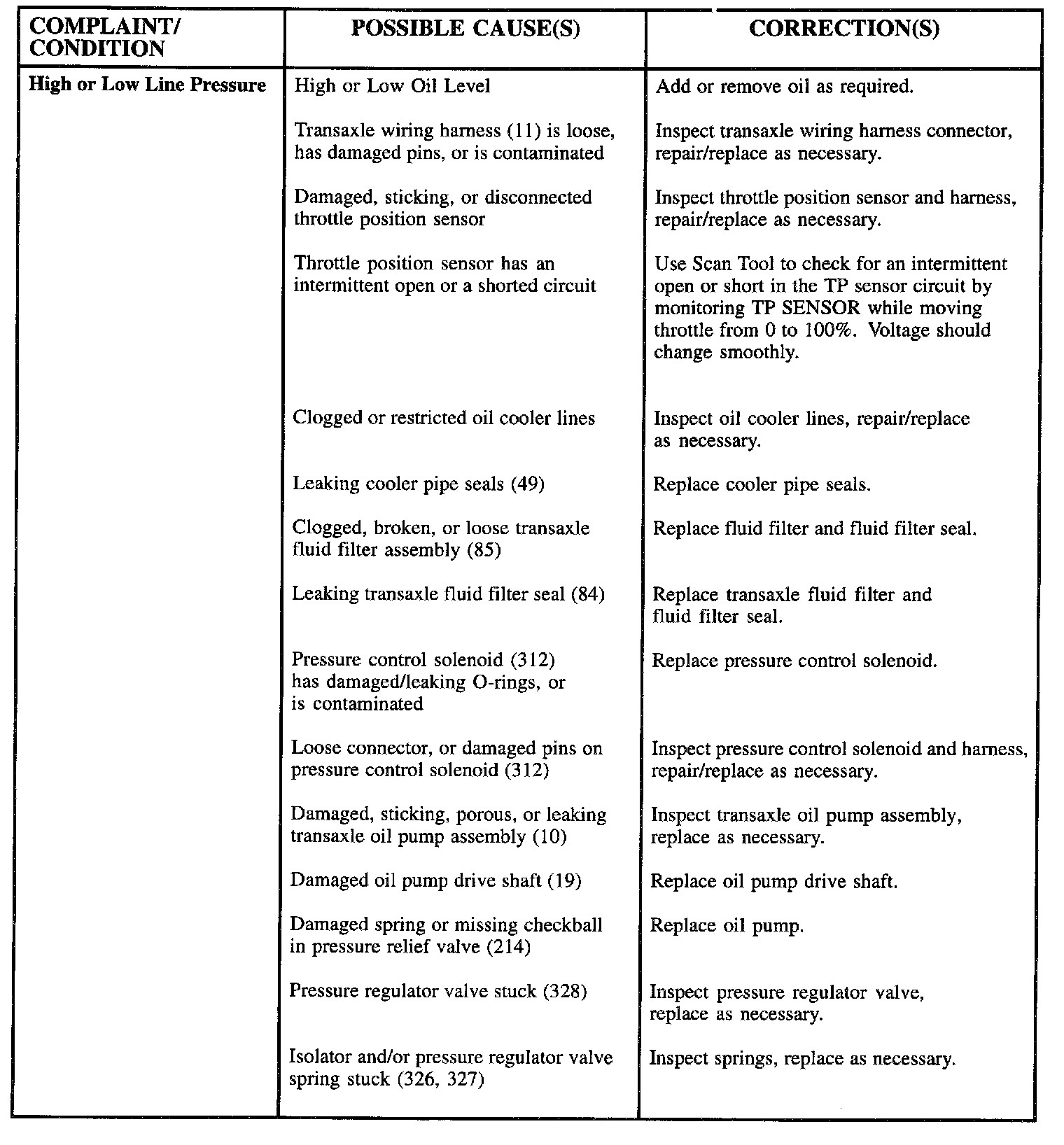

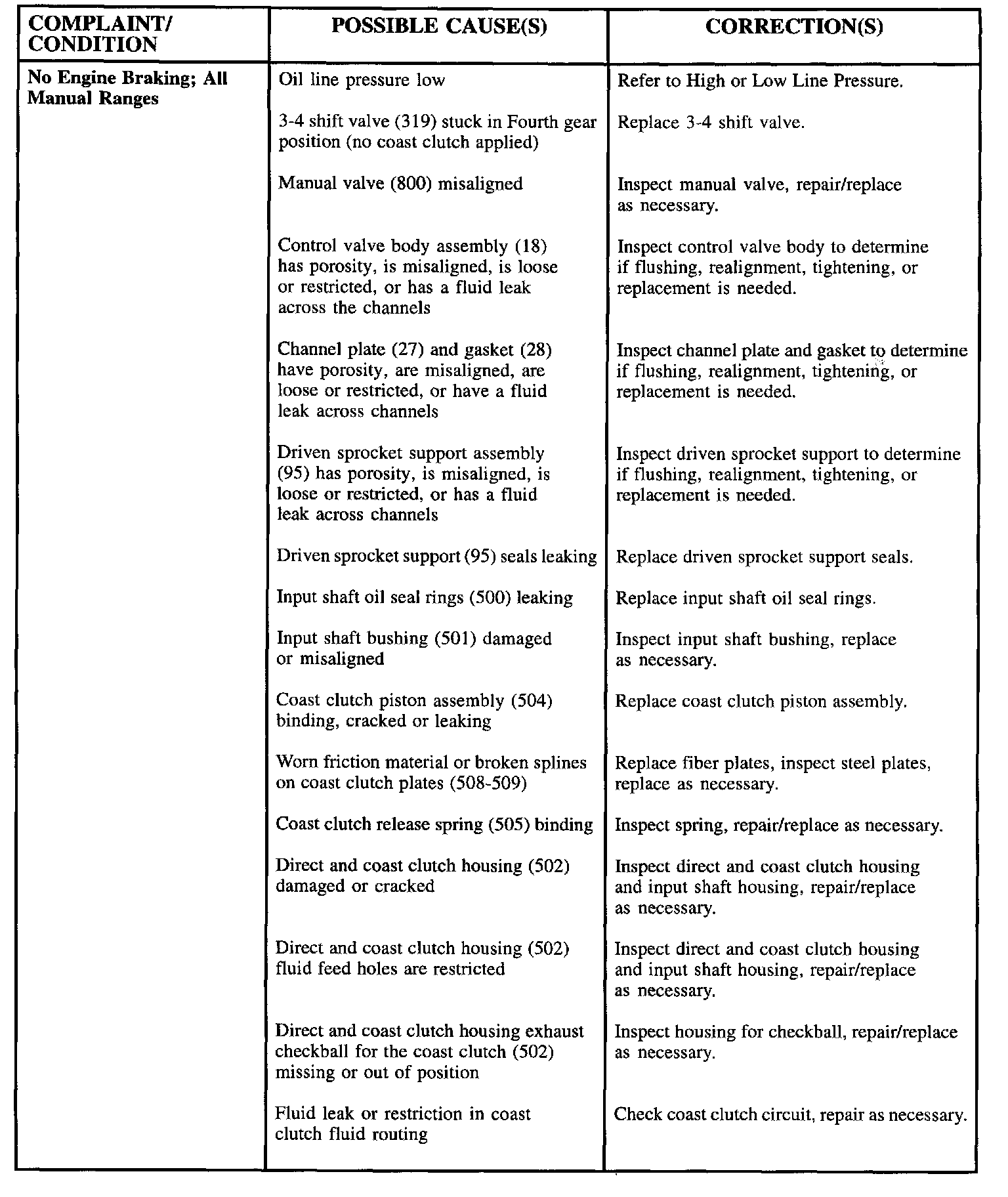

Part 3 of 18

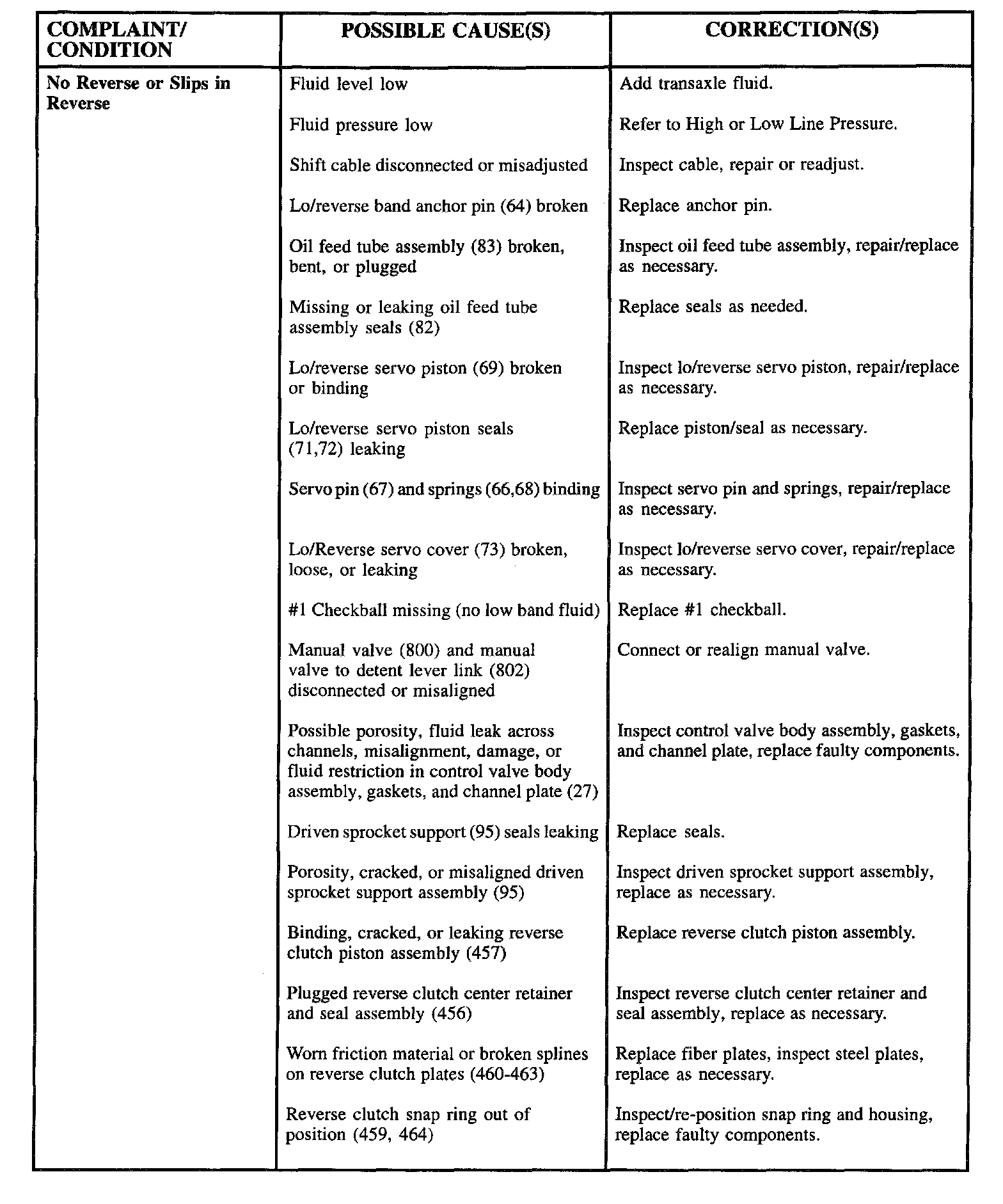

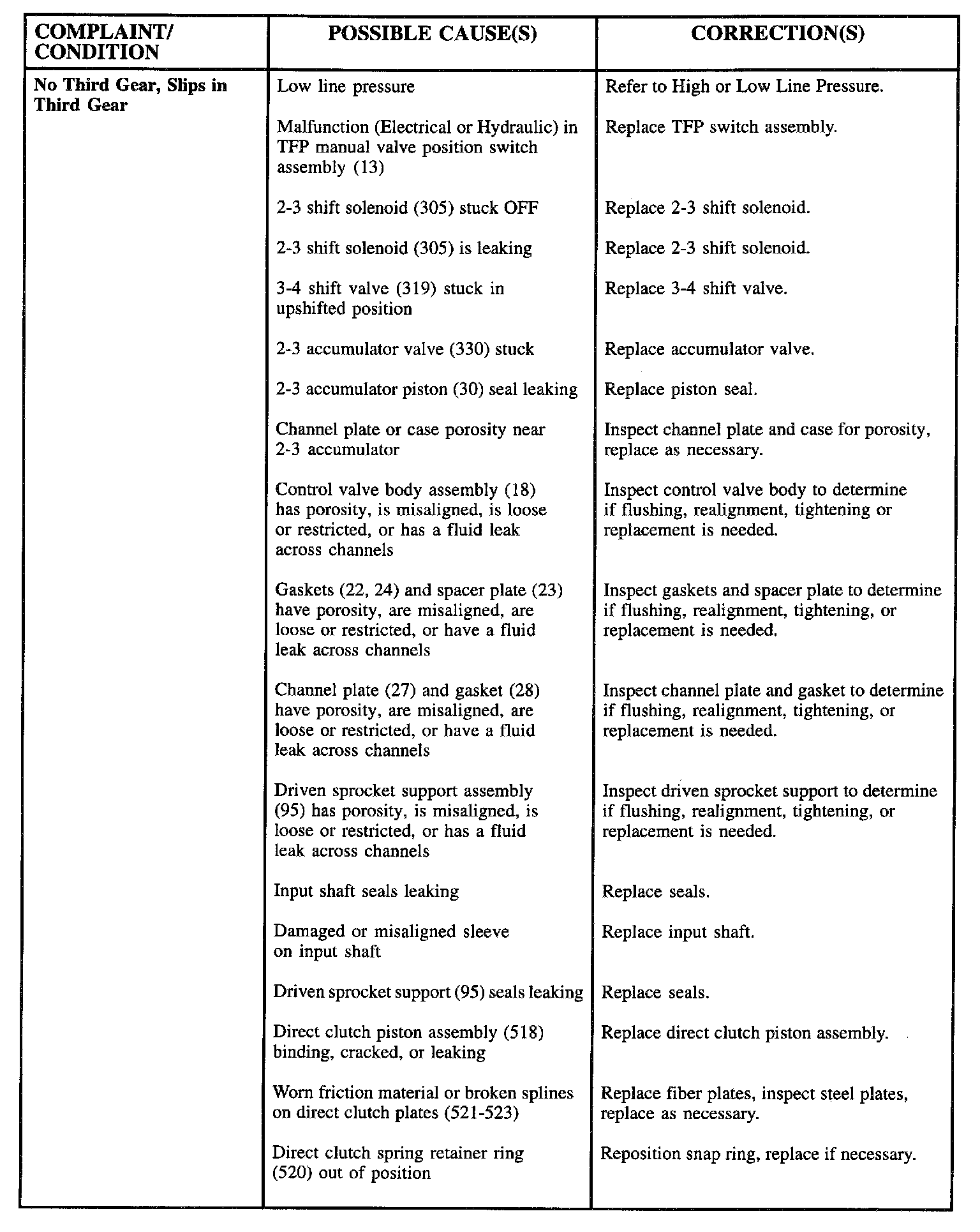

Part 4 of 18

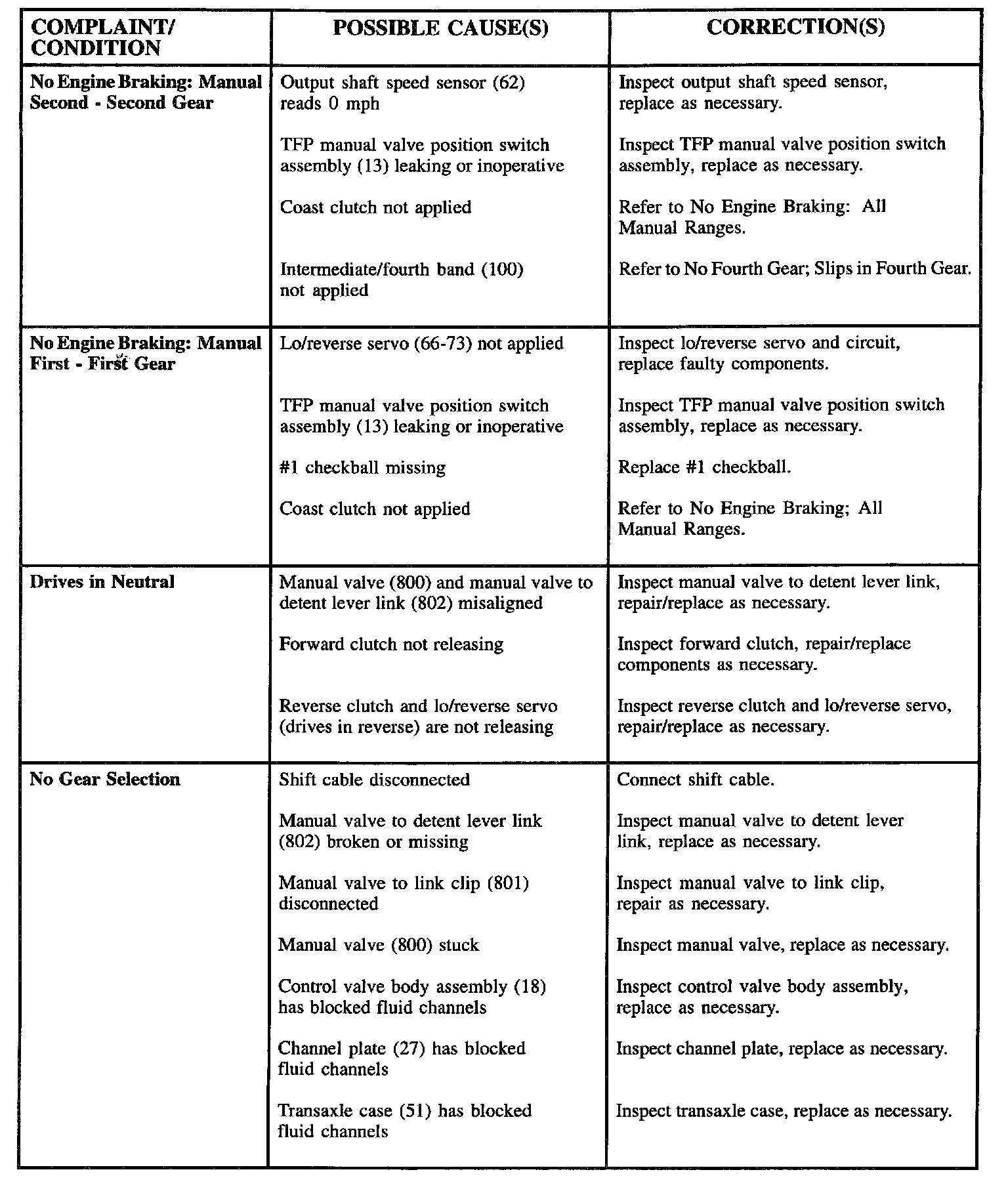

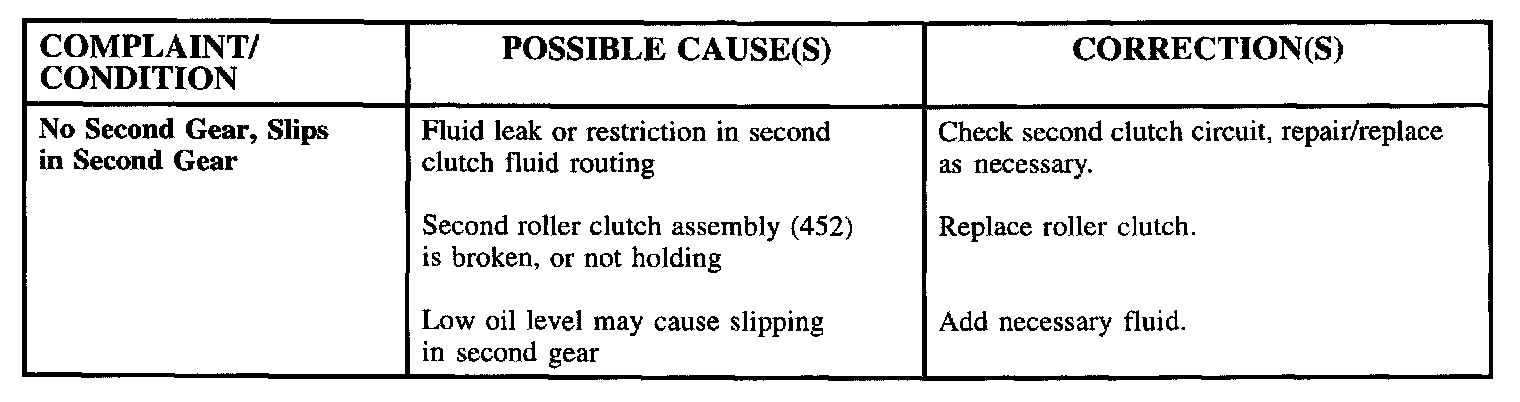

Part 5 of 18

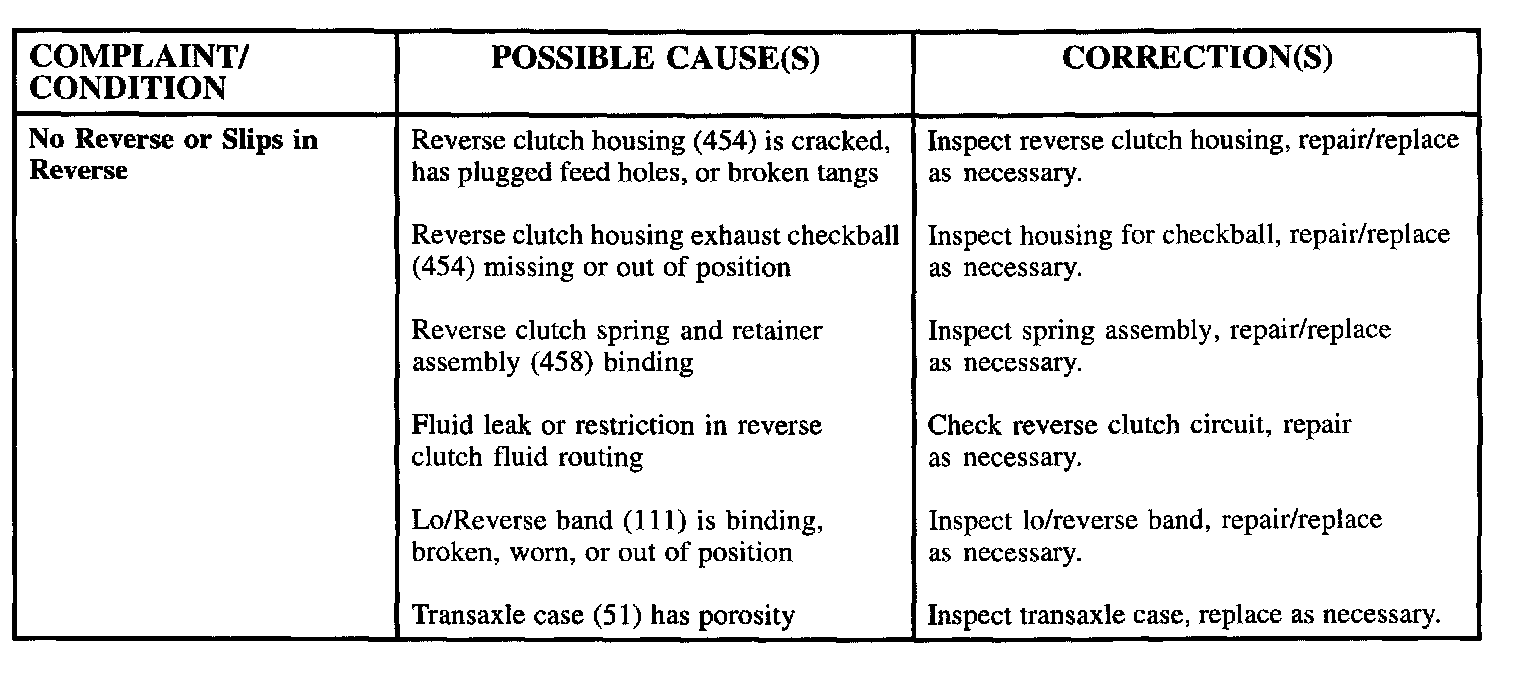

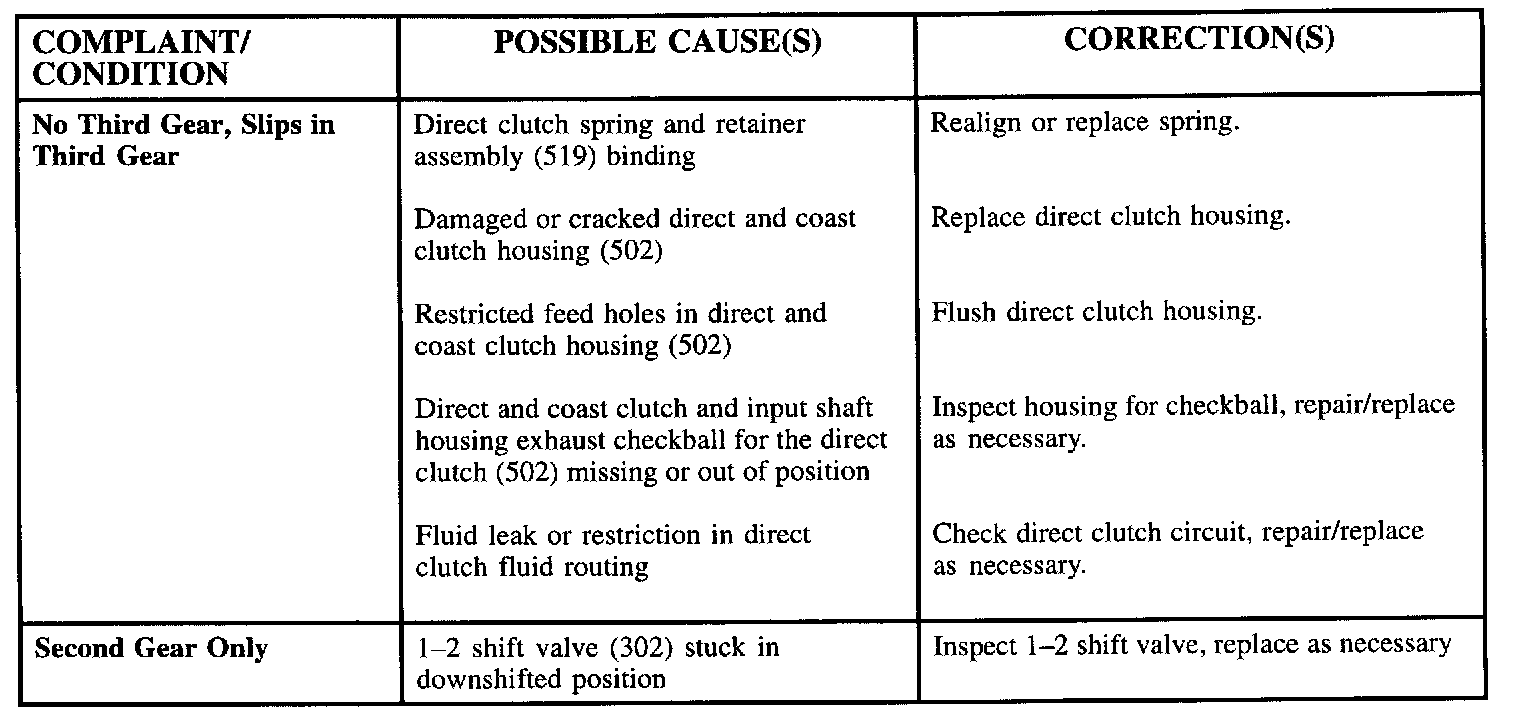

Part 6 of 18

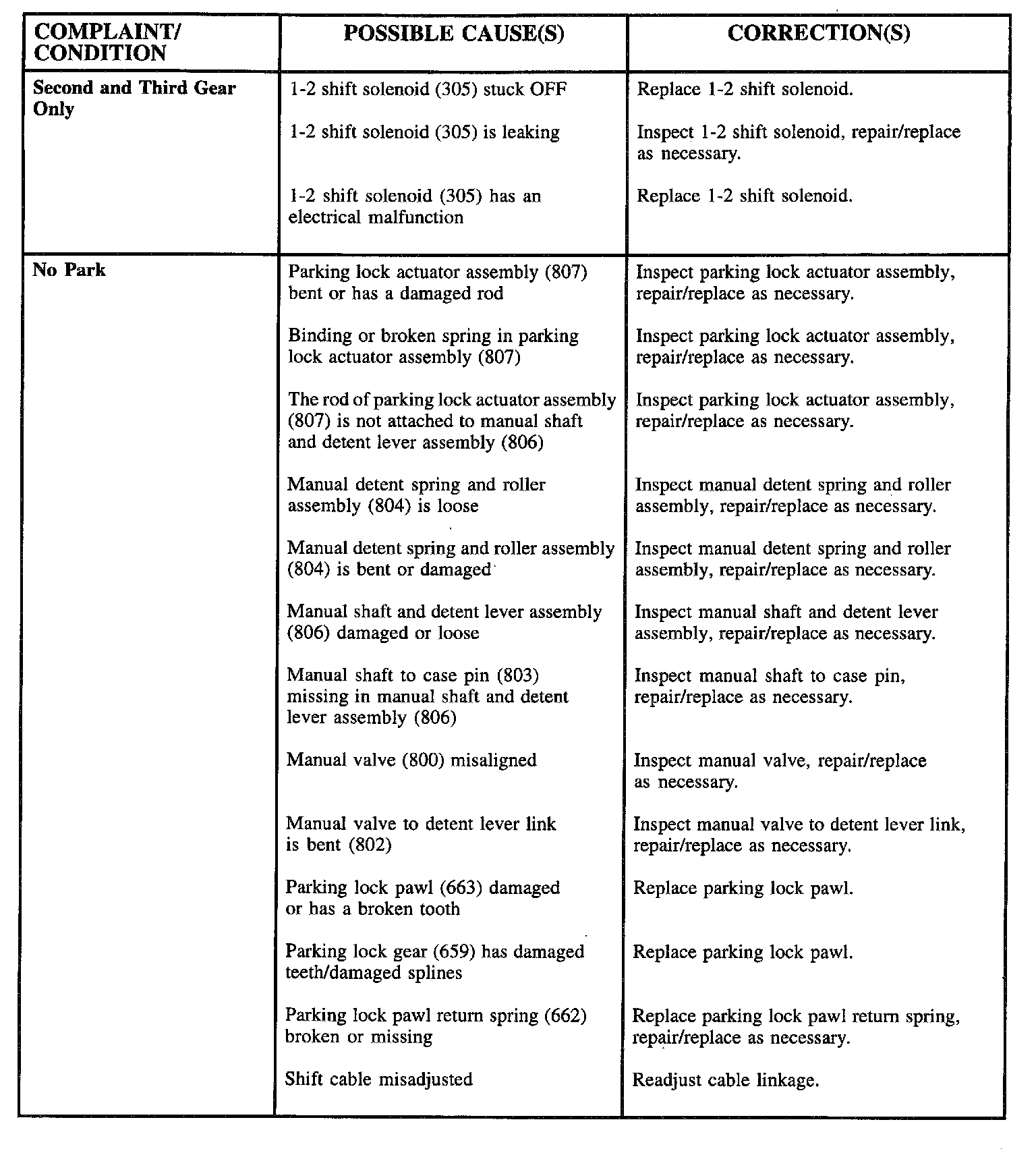

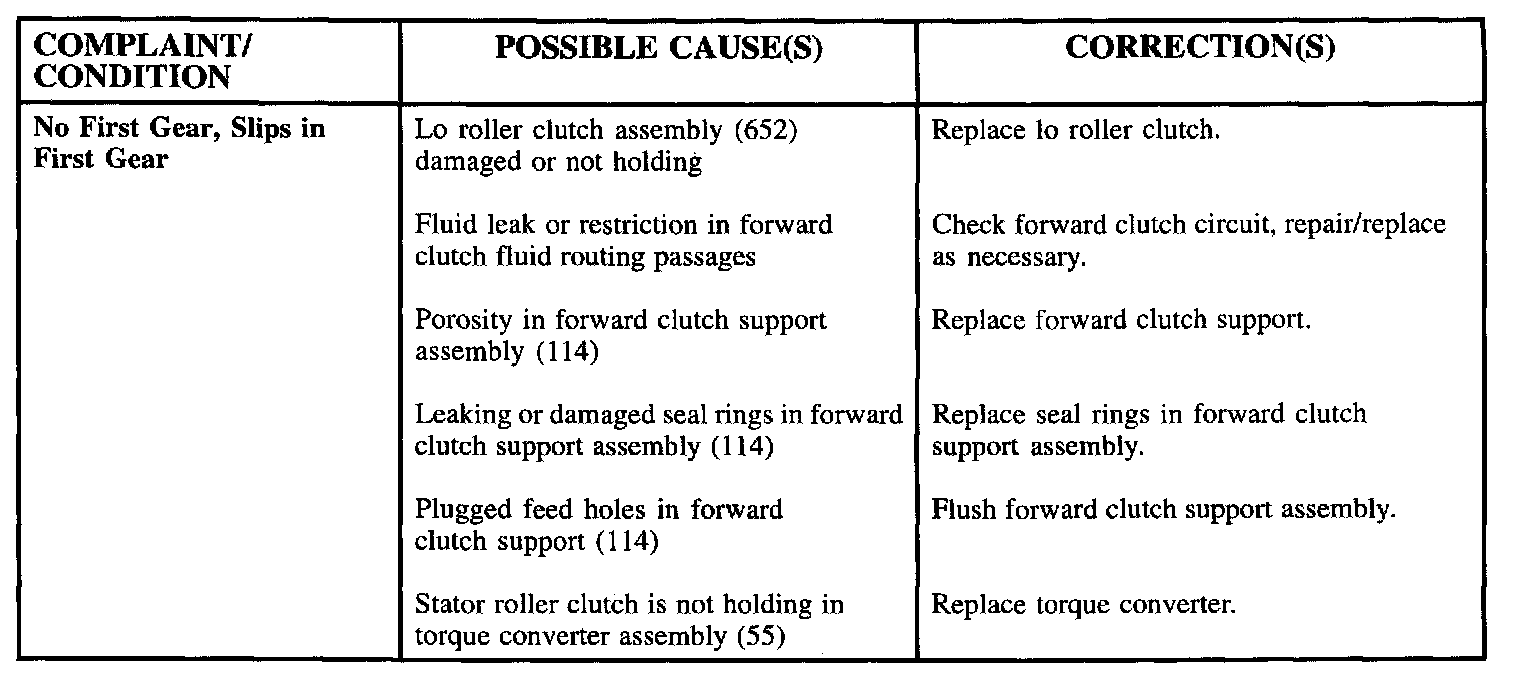

Part 7 of 18

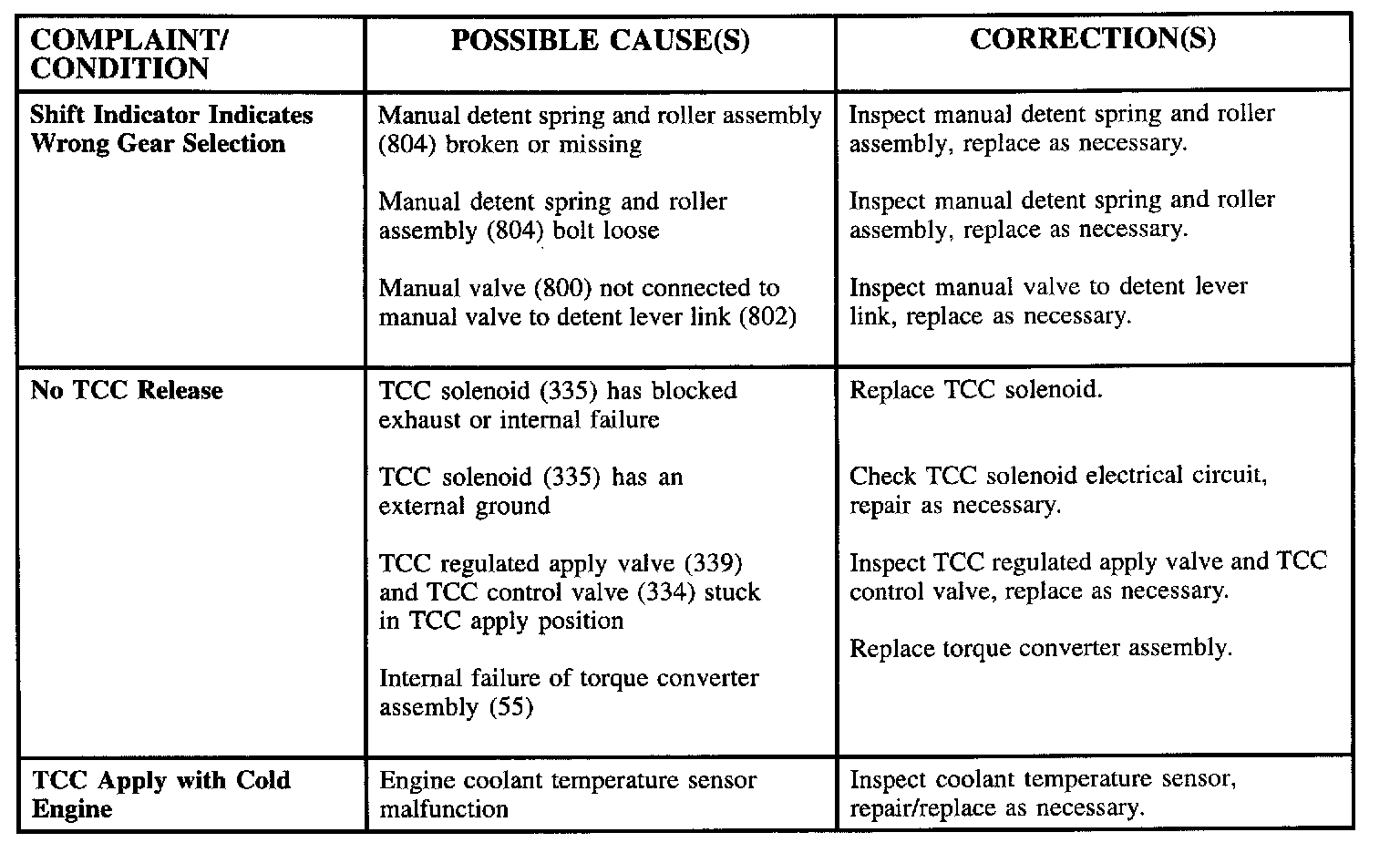

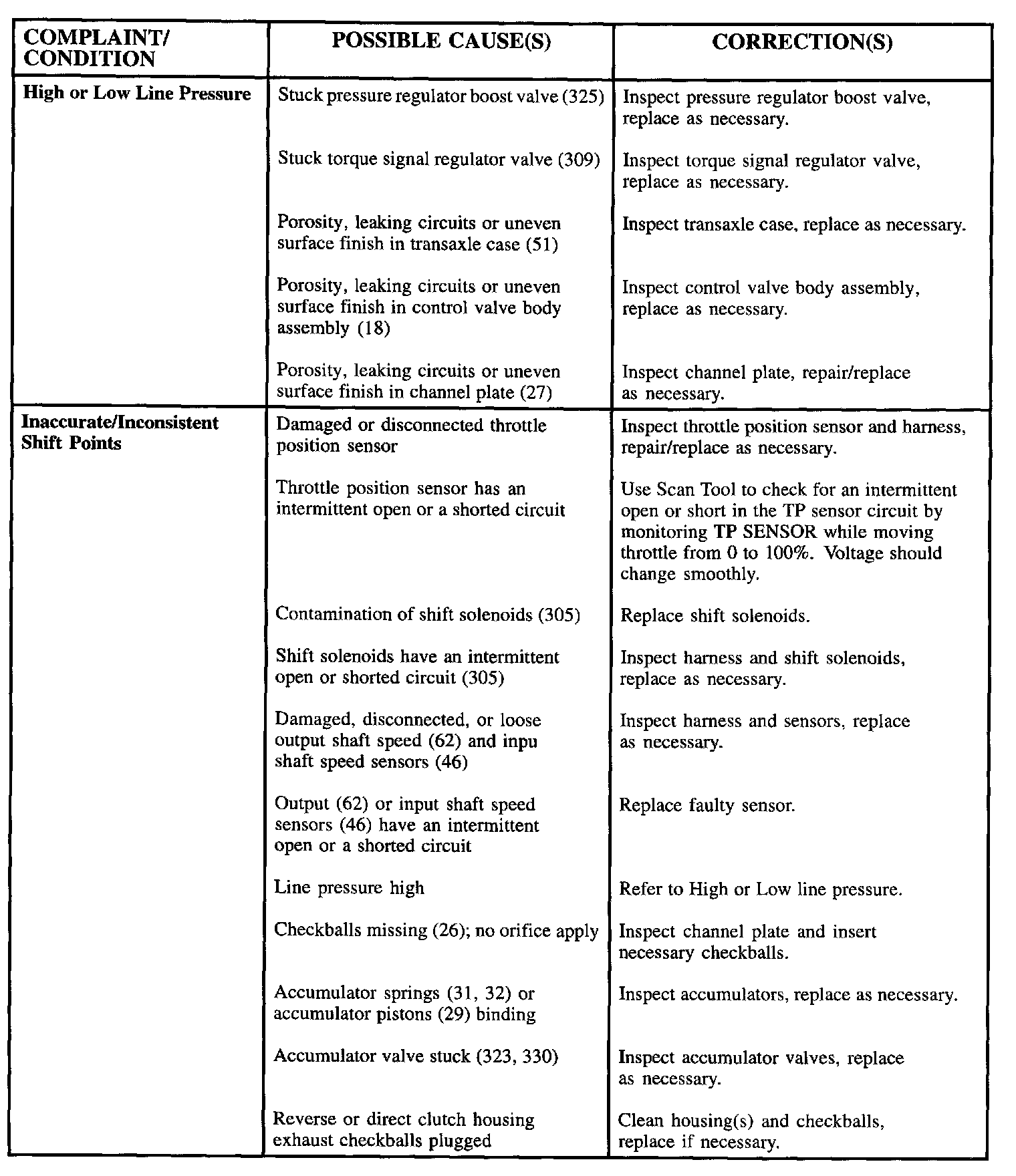

Part 8 of 18





Part 9 of 18





Part 10 of 18





Part 11 of 18





Part 12 of 18





Part 13 of 18





Part 14 of 18





Part 15 of 18





Part 16 of 18





Part 17 of 18





Part 18 of 18

IMPORTANT: The numbers in parenthesis refer to the illustration item number of that part.
