Home >> Saturn >> 2001 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Saturn Transmission >> Direct and Coast Clutch Assemblies

Direct and Coast Clutch Assemblies

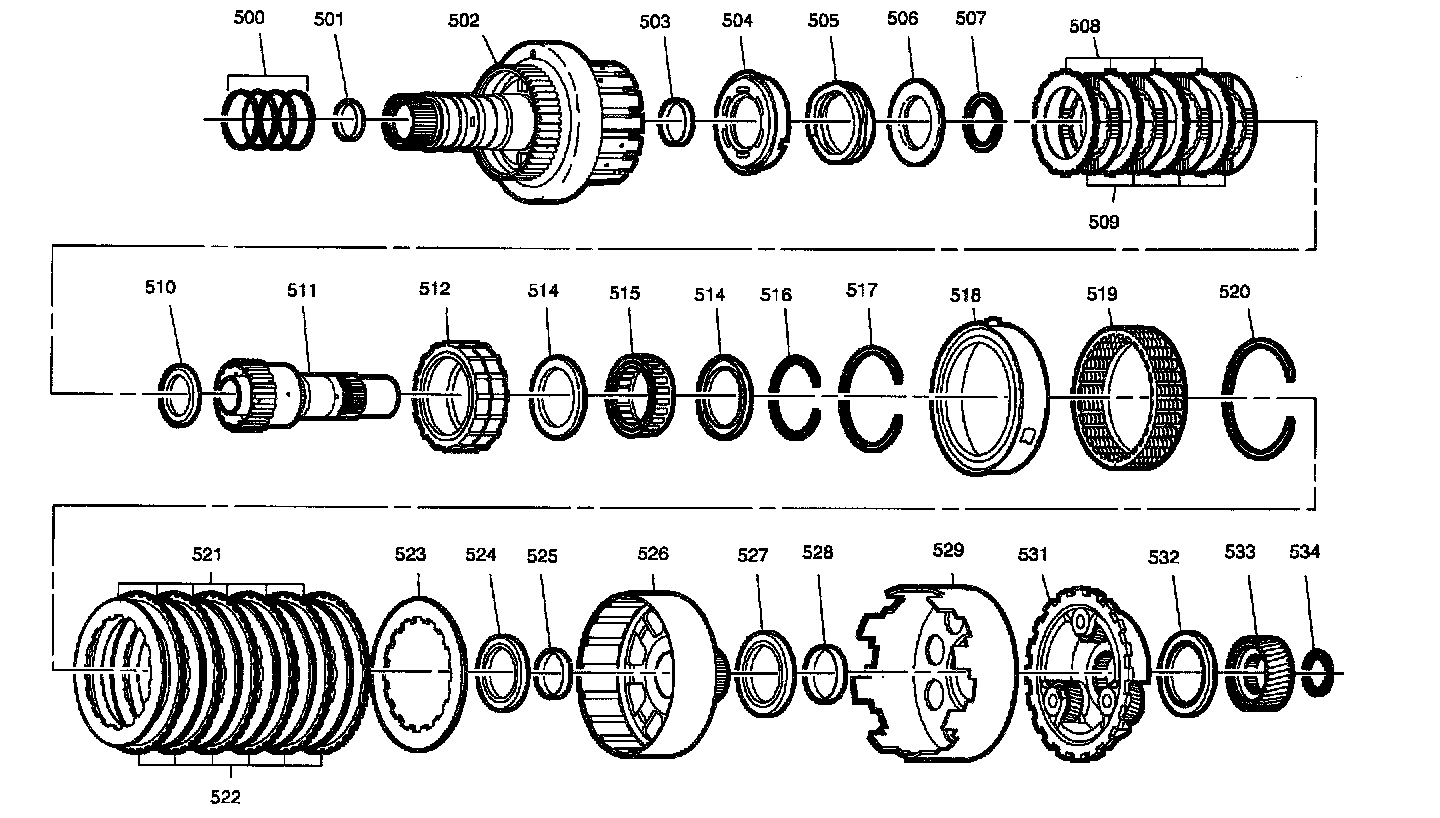

DIRECT AND COAST CLUTCH ASSEMBLIES

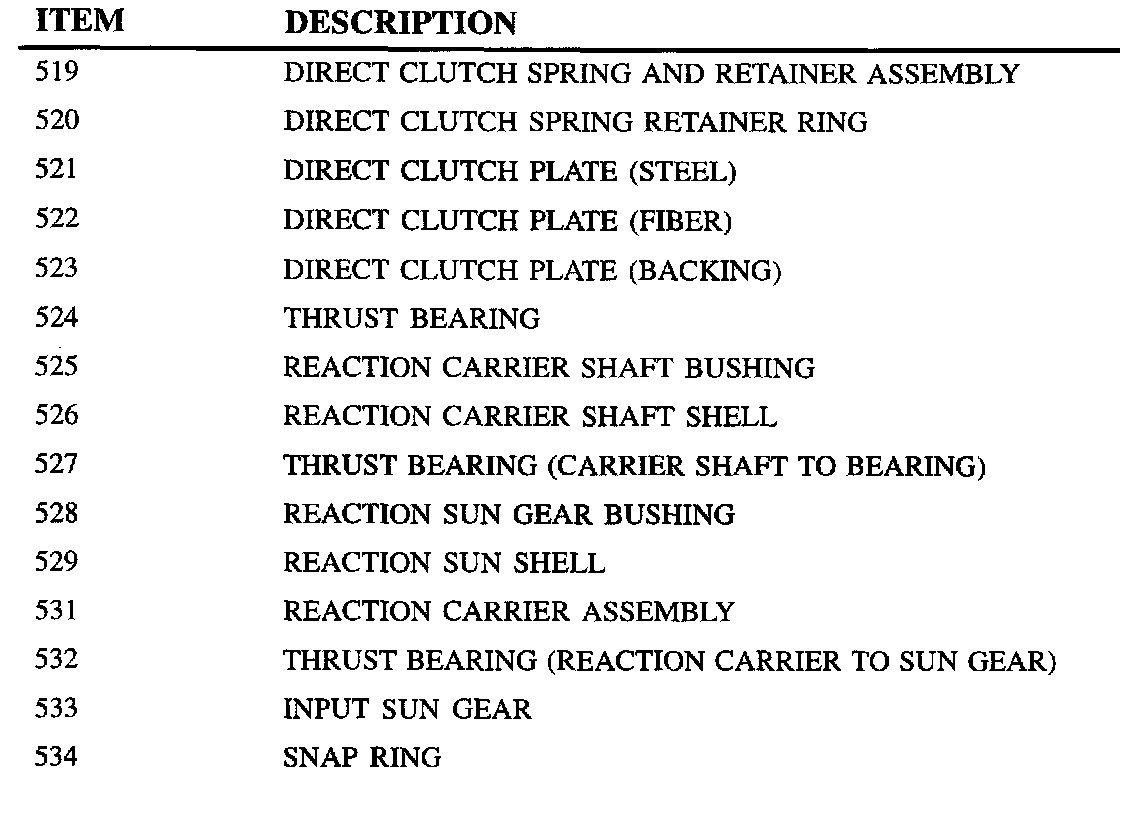

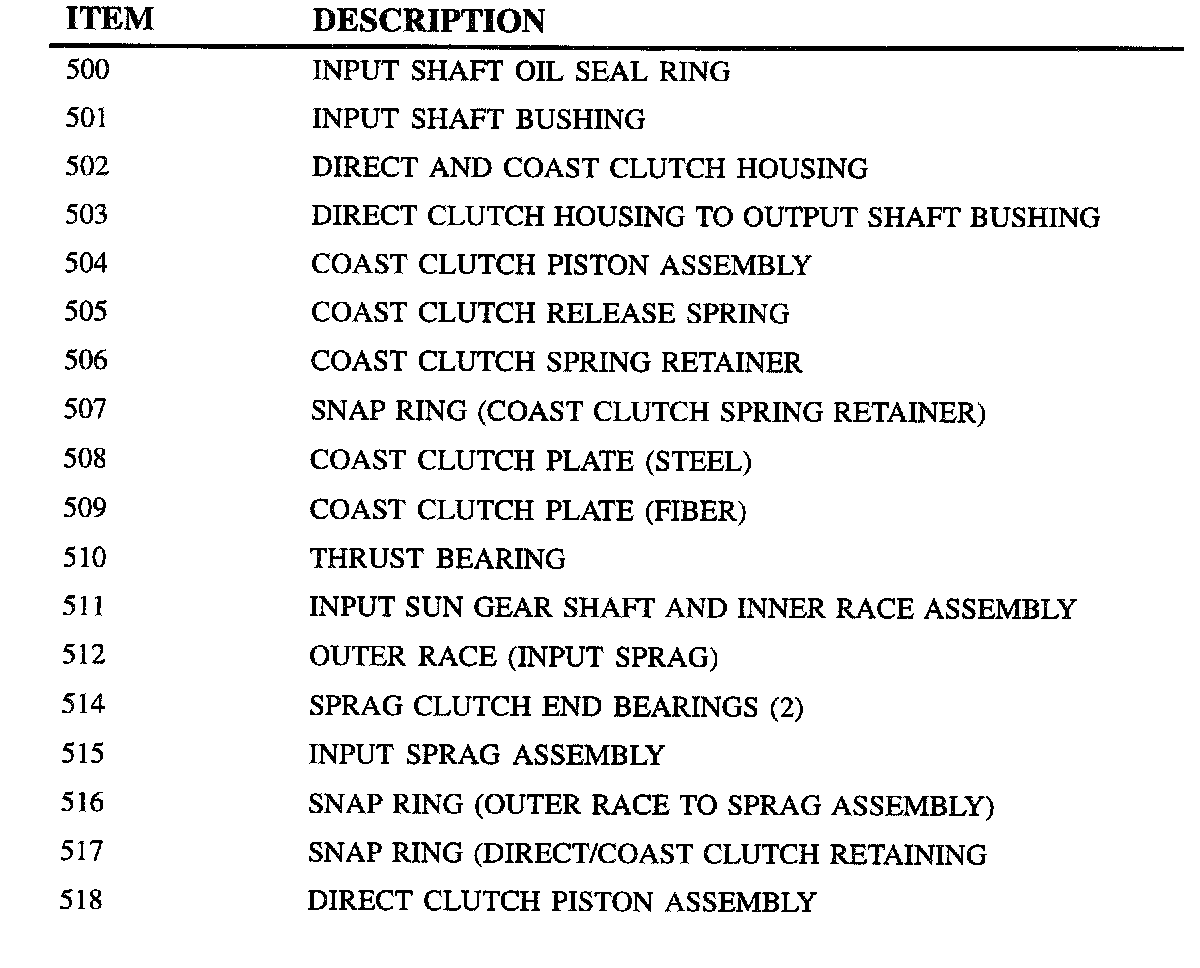

Part 1 of 3





Part 2 of 3





Part 3 of 3
