Starter Motor: Service and Repair

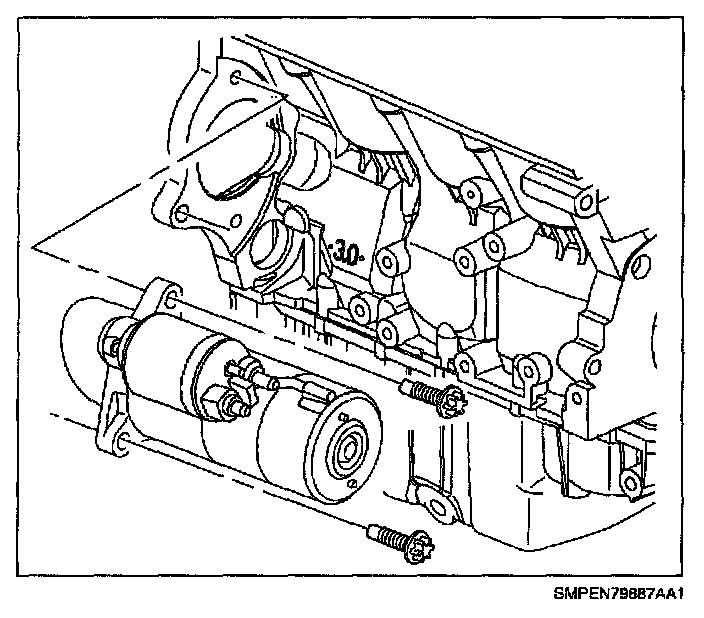

STARTER ASSEMBLY

REMOVAL




1. Disconnect negative battery cable.

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON THE HOIST. TO HELP AVOID PERSONAL INJURY WHEN A VEHICLE IS ON A HOIST, PROVIDE ADDITIONAL SUPPORT FOR THE VEHICLE ON THE OPPOSITE END FROM WHICH COMPONENTS ARE BEING REMOVED.

2. Jack or raise vehicle on hoist.
3. Remove right front wheel.

CAUTION: EXHAUST SYSTEM REMAINS HOT FOR EXTENDED PERIODS OF TIME.

4. Disconnect two starter solenoid electrical connections.

IMPORTANT: Do not remove fastener securing electrical harness to engine block. Loosening fastener will allow harness bracket to move enough to clear starter use available tool J 44830, or equivalent (#16 torx) wrench.

5. Loosen fastener securing electrical harness bracket to block.
6. Remove lower starter assembly to engine block bolt.
7. Lower vehicle.




8. Remove upper starter assembly to engine block bolt.
9. Move starter right, clearing engine block. Then left and out of engine block (flywheel housing).

INSTALLATION
1. Guide starter into engine block (flywheel housing).
2. Install upper starter mounting bolt finger tight.
3. Jack or raise vehicle on hoist.
4. Install lower starter mounting bolts.

Torque:
Lower Starter Mounting Bolts: 40 N.m (30 ft-lbs)

5. Connect two starter electrical connections.
6. Connect battery negative cable.
7. Install right front wheel.

Torque:
Wheel Bolts: 125 N.m (92 ft-lbs)

8. Lower vehicle.




9. Tighten upper starter mounting bolt.

Torque:
Upper Starter Mounting Bolts: 40 N.m (30 ft-lbs)

10. Connect battery negative cable.
