Drive Belt: Testing and Inspection

ENGINE DRIVE BELT AND ACCESSORIES

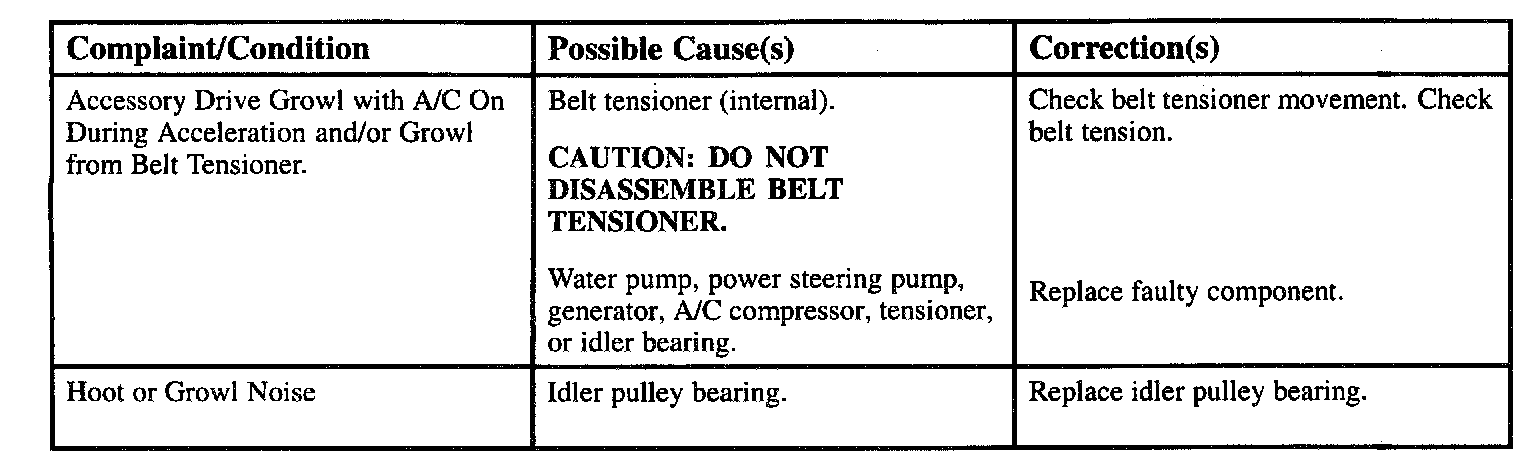

Part 1 of 2

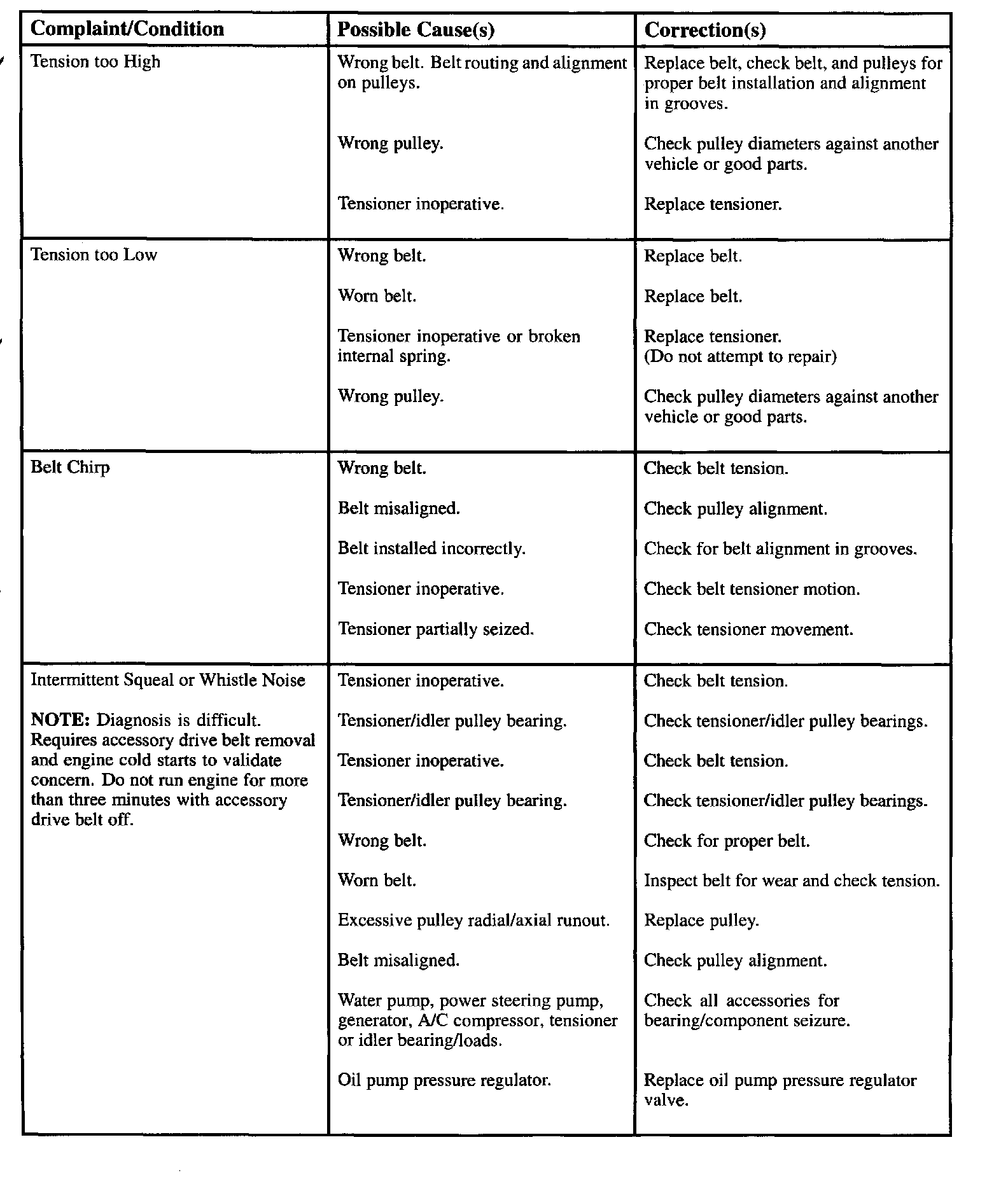

Part 2 of 2

IMPORTANT: Saturn service tool SA9217NE (Chassis Ear Tool or equivalent) should be used to locate source(s) of noises caused by vibration(s).
