Air Door Actuator / Motor: Service and Repair
CABIN AIR RECIRCULATION ACTUATORREMOVAL
1. Disconnect negative battery cable.
2. Open glove compartment door.
3. Remove glove compartment lamp assembly by pulling on lamp plunger.
4. Disconnect glove compartment lamp wiring harness from glove compartment lamp.
5. Remove right side I/P lower dash insulator retainers.
6. Pull insulator rearward to detach from forward insulator retainers.

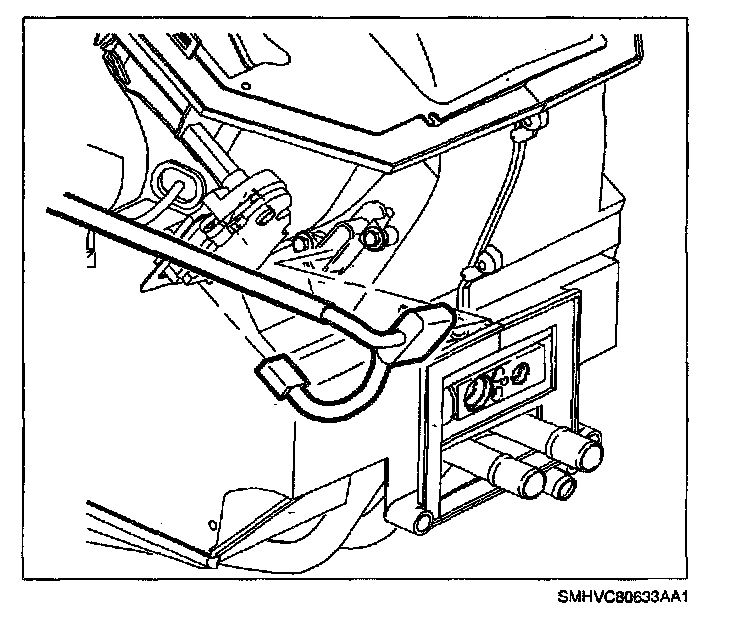

7. Remove right side heater duct assembly retainer and remove duct.

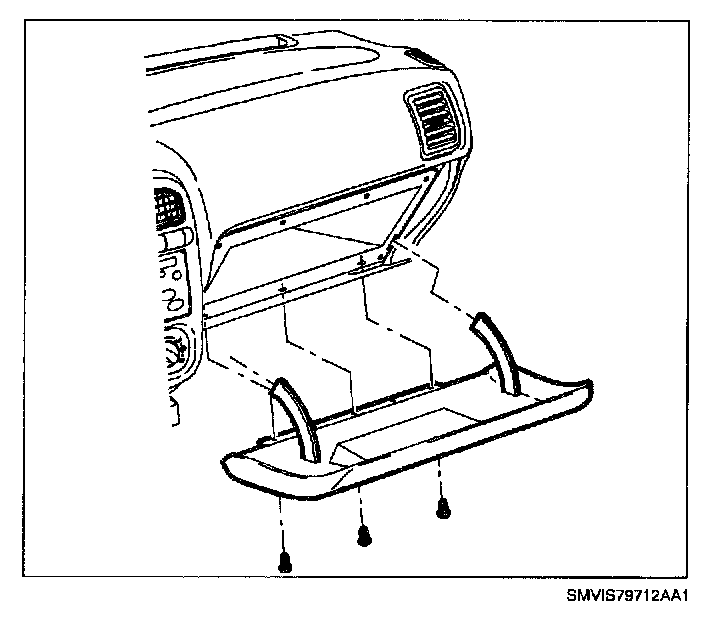

8. Remove glove compartment door.
9. Remove glove compartment bin fasteners.
10. Slowly remove glove compartment bin tilting bin downward to expose the BCM module residing on top of the glove compartment.
11. Remove BCM module from glove compartment by sliding module out of attaching slots.
12. Remove glove compartment bin.
13. Disconnect recirculation actuator electrical connector.

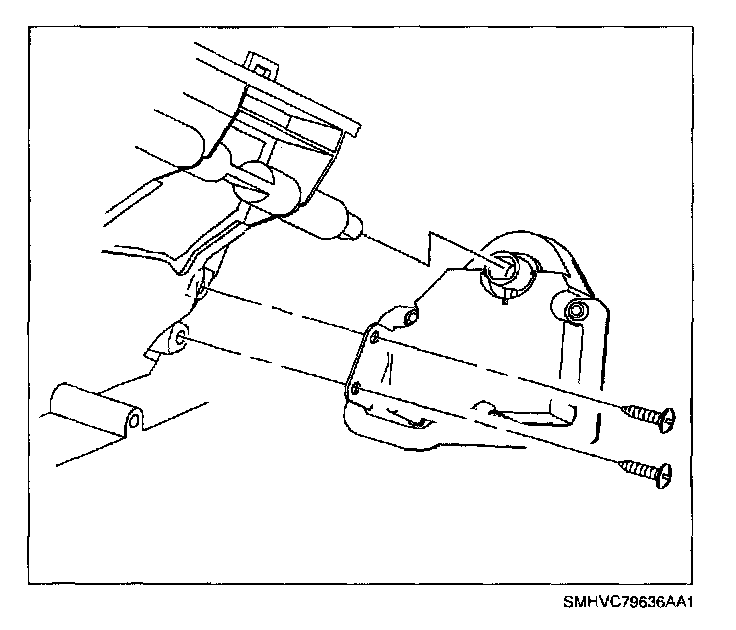

14. Remove recirculation actuator bracket screws.
15. Remove recirculation actuator assembly from shaft by pulling assembly towards the front of dash.
INSTALLATION
1. Install recirculation actuator assembly onto door shaft. Shaft has two flats that must be aligned to actuator.
2. Install recirculation actuator bracket to module screws.
Torque:
Recirculation Actuator Bracket-to-HVAC Module Screws: 1.0 N.m (9 in-lbs)
3. Connect recirculation actuator electrical connector.
4. Install glove compartment bin partially into opening.
5. Secure BCM module to glove compartment bin slots.
6. Route glove compartment lamp wiring harness through lamp opening.
7. Install glove compartment bin to I/P with fasteners.
Torque:
Glove Compartment-to-I/P Fasteners: 2.5 N.m (22 in-lbs)
8. Connect glove compartment lamp wiring harness to glove compartment lamp.
9. Snap lamp into glove compartment bin.
10. Install heater outlet duct with retainer.
11. Install lower dash insulator with retainers.
12. Install glove compartment door with fasteners.
Torque:
Glove Compartment Door Fasteners: 2 N.m (18 in-lbs)
13. Function glove compartment lamp and glove compartment door to ensure proper operation.
14. Connect negative battery cable.
Torque:
Battery Terminal Bolts: 17 N.m (13 ft-lbs)
