Home >> Saturn >> 2001 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> General Diagnostics >> Base Engine Misfire Diagnosis

Base Engine Misfire Diagnosis

BASE ENGINE MISFIRE DIAGNOSIS

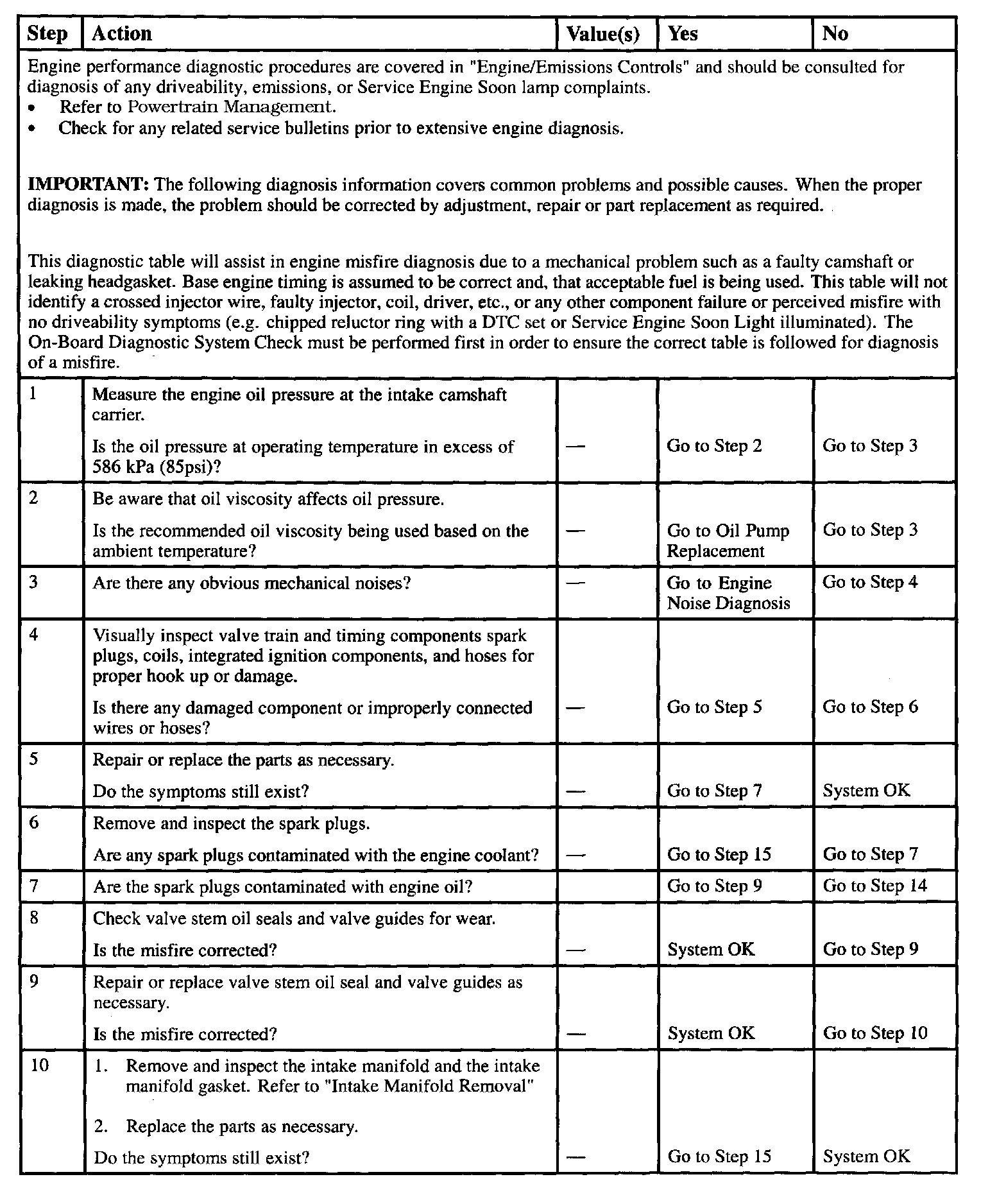

Step 1 of 10

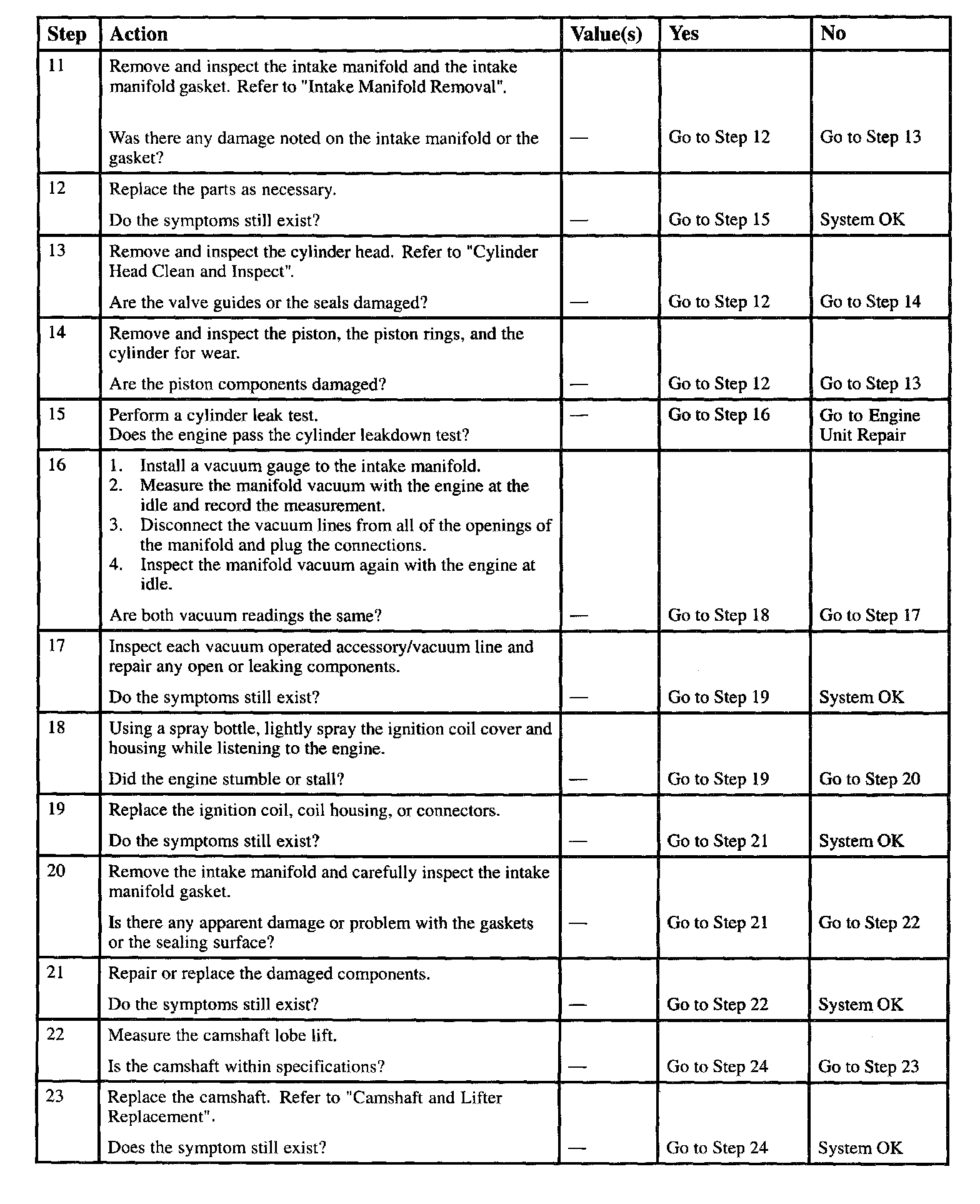

Step 11 of 23

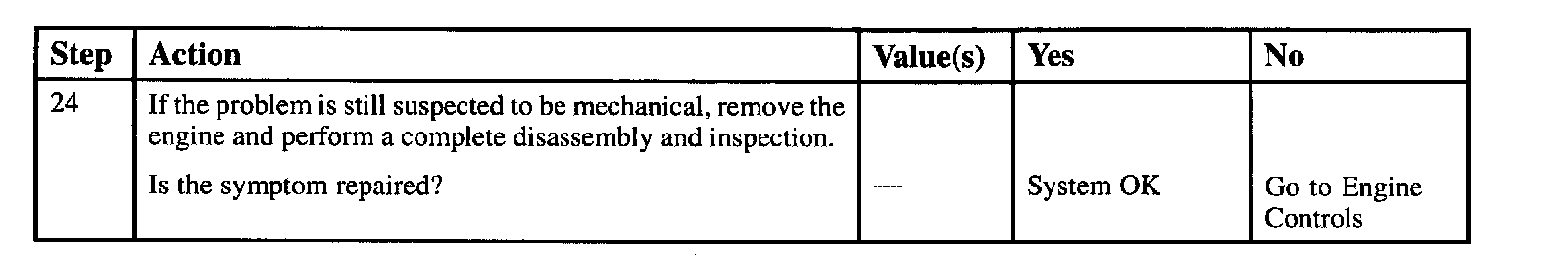

Step 24
