30. Cylinder Head Removal - Left Side

Cylinder Head Removal - Left Side

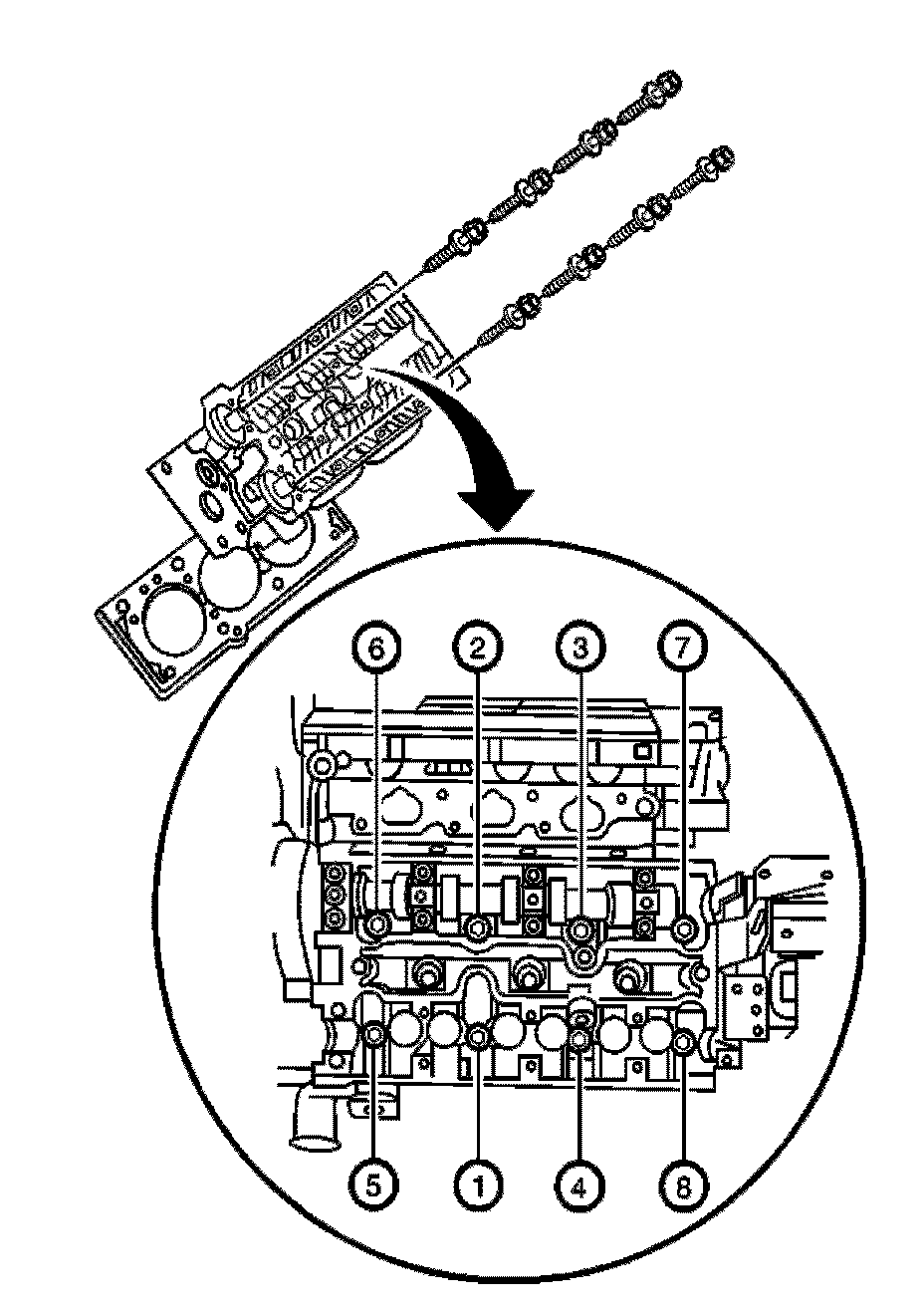

1. Remove the cylinder head bolts (1 thru 8) in the sequence shown.
2. Discard the cylinder head bolts.
3. Remove the cylinder heads.
4. Remove the cylinder head gaskets.
