Home >> Saturn >> 2001 >> L300 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Differential Assembly Components

Differential Assembly Components

DIFFERENTIAL ASSEMBLY COMPONENTS

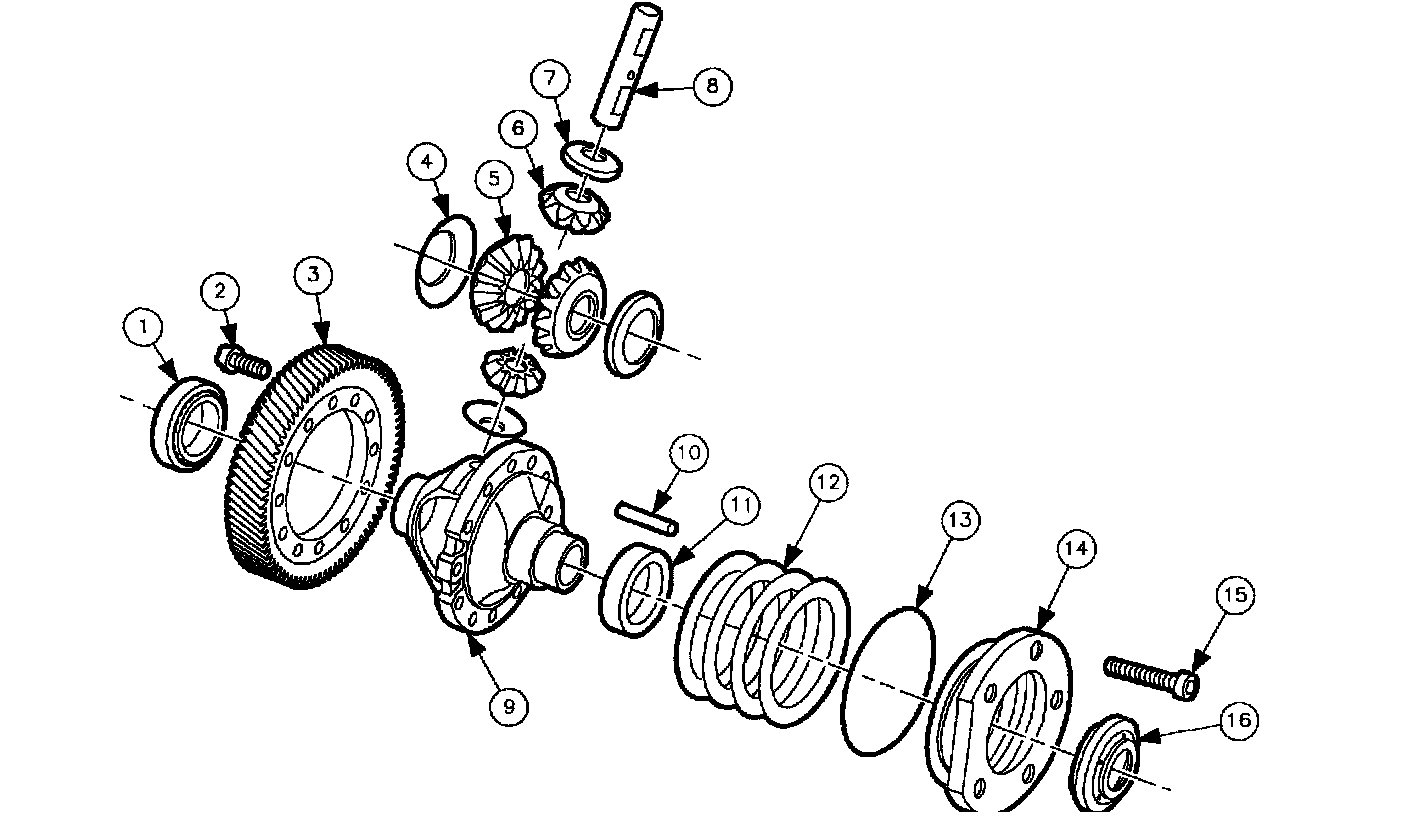

Part 1 of 2

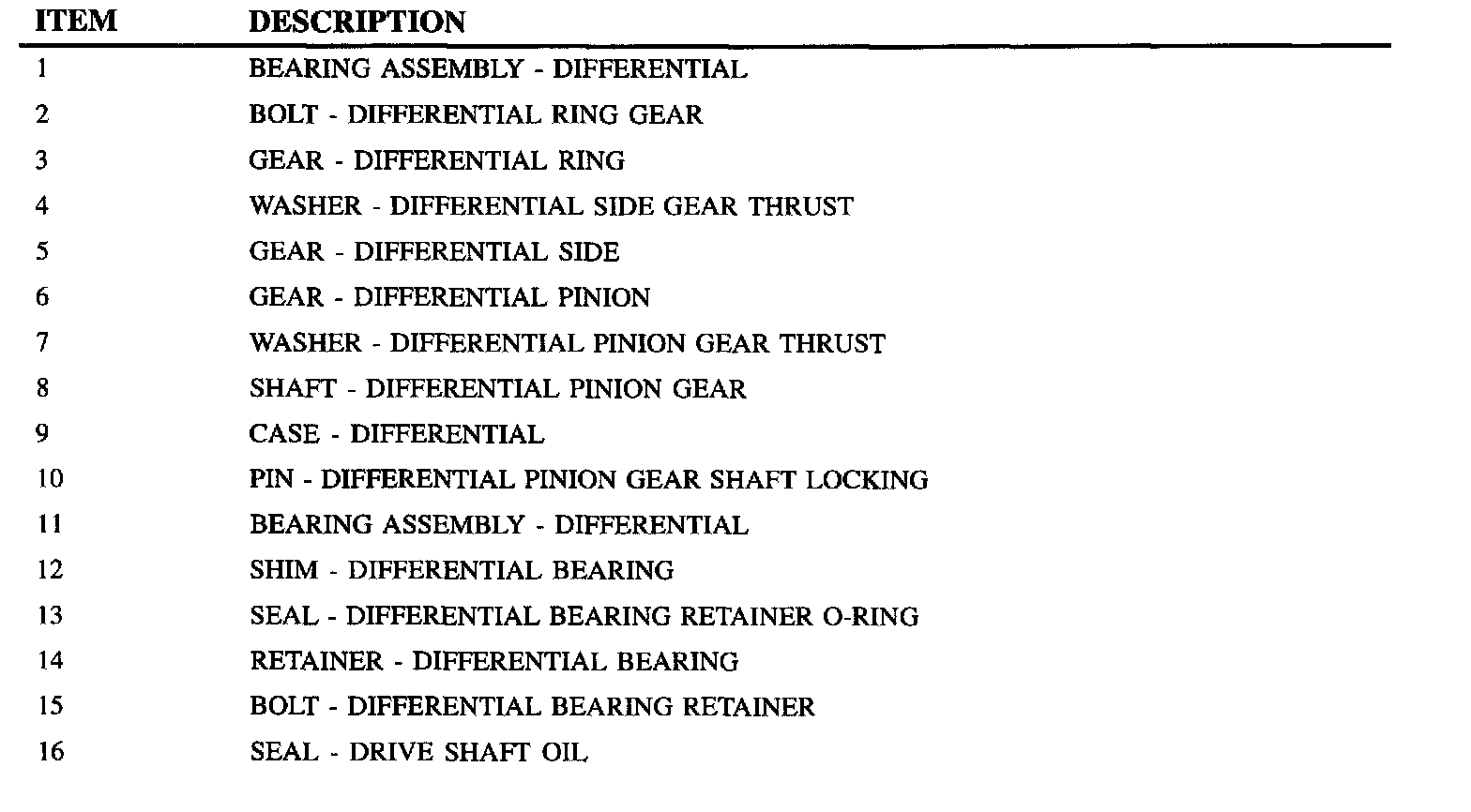

Part 2 of 2
