Saturn
>>
2001
>>
L300 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

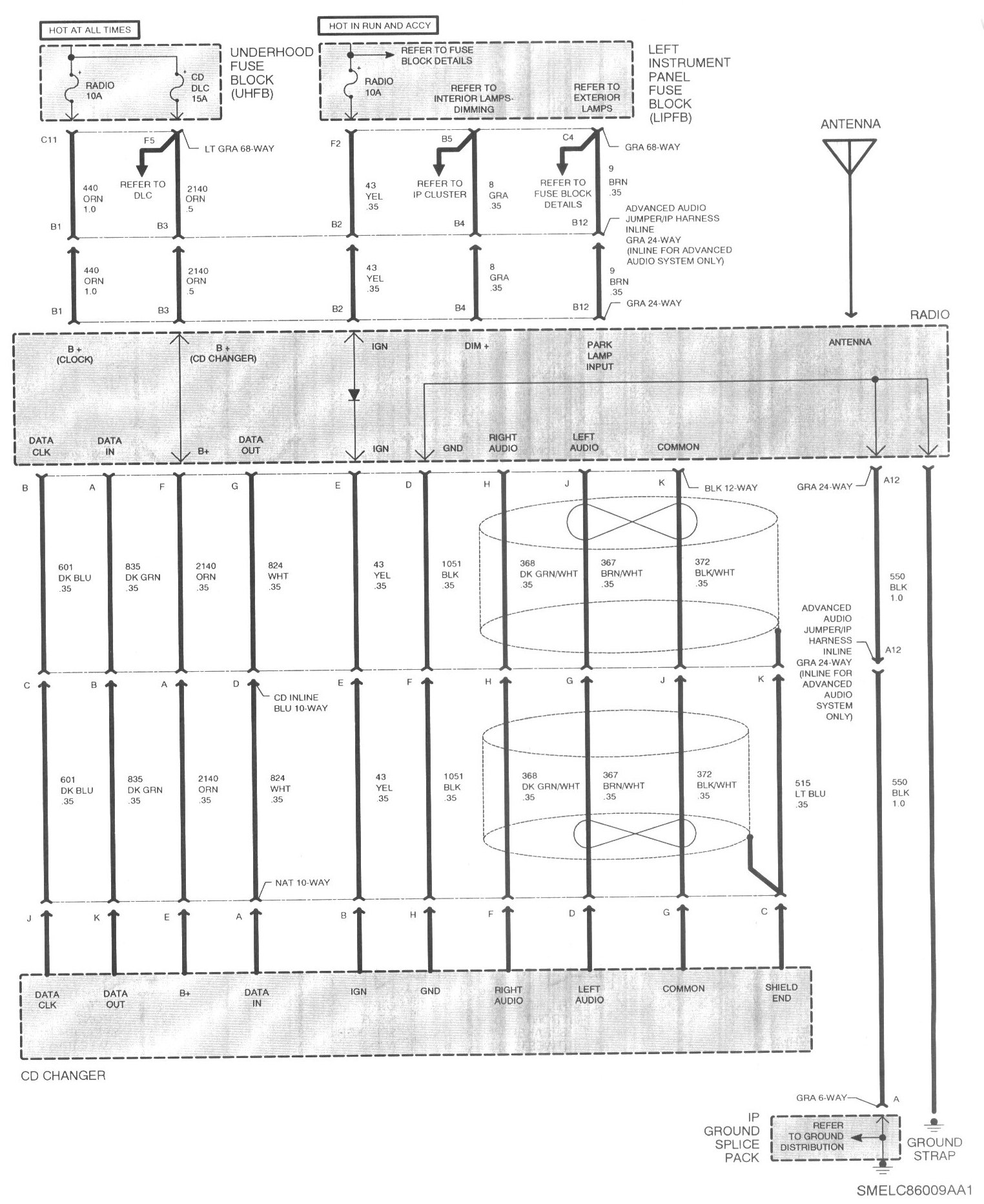

Radio (AUD) System W/ CD Changer/Player Schematic (Uplevel & Advanced Audio System)
Radio (AUD) System W/ CD Changer/Player Schematic (Uplevel & Advanced Audio System)
Radio (Audio) System With CD Changer/Player Schematic (Uplevel And Advanced Audio Systems):
