Turn/Hazard Lamps

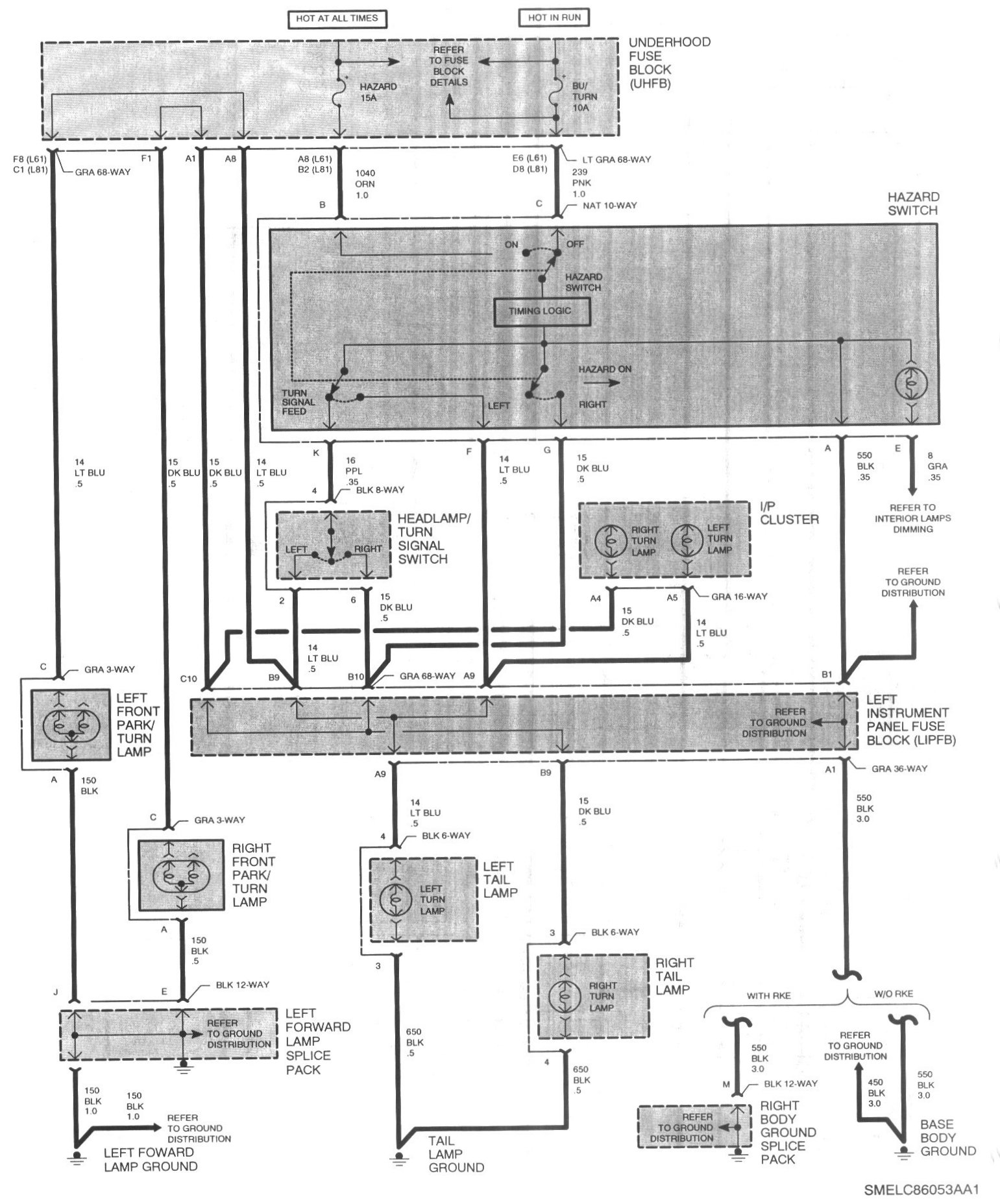

Exterior Lamps (Sedan) Schematics - Turn/Hazard Lamps:

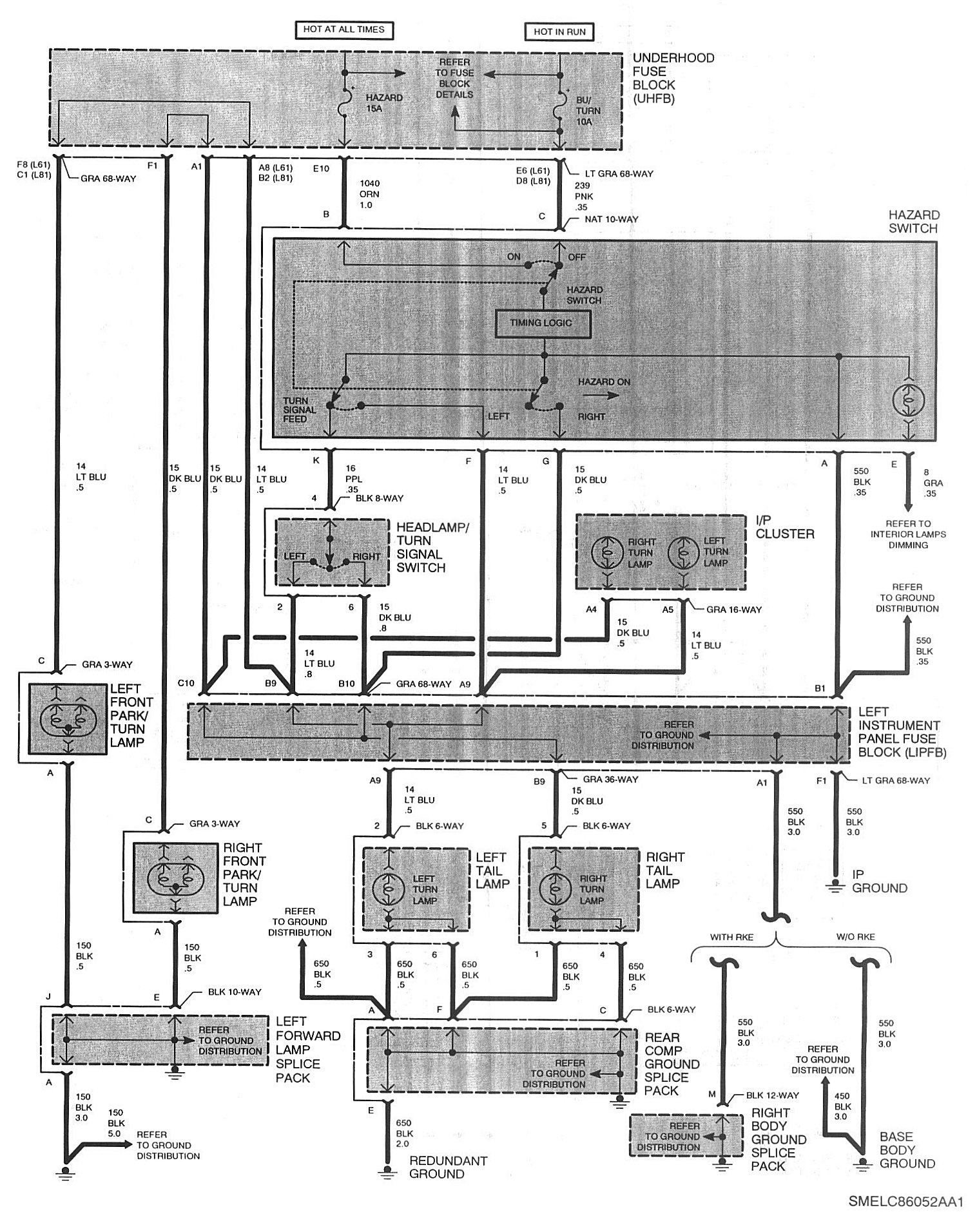

Exterior Lamps (Wagon) Schematics - Turn/Hazard Lamps:
