FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2001
>>
L300 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Backup Lamp
>>
Stop/Tail/Back-Up Turn/Marker Lamp - Left
Stop/Tail/Back-Up Turn/Marker Lamp - Left

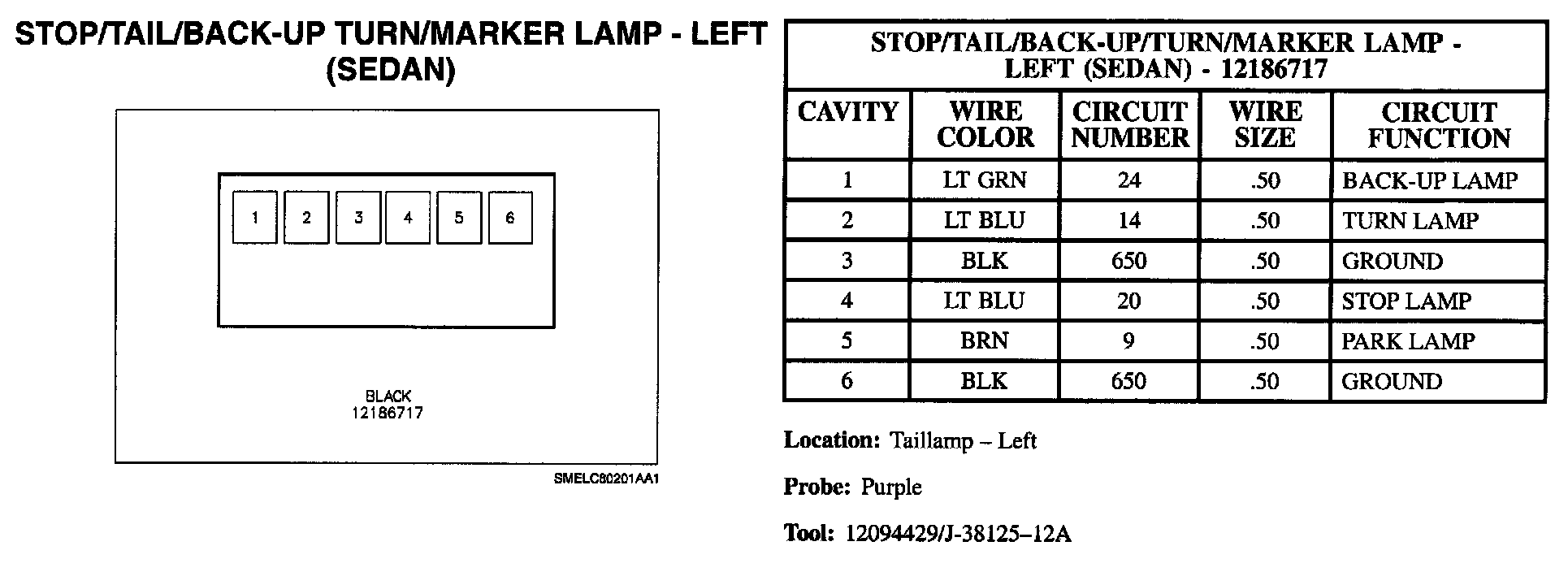

Stop/Tail/Back-Up Turn/Marker Lamp - Left (Sedan):

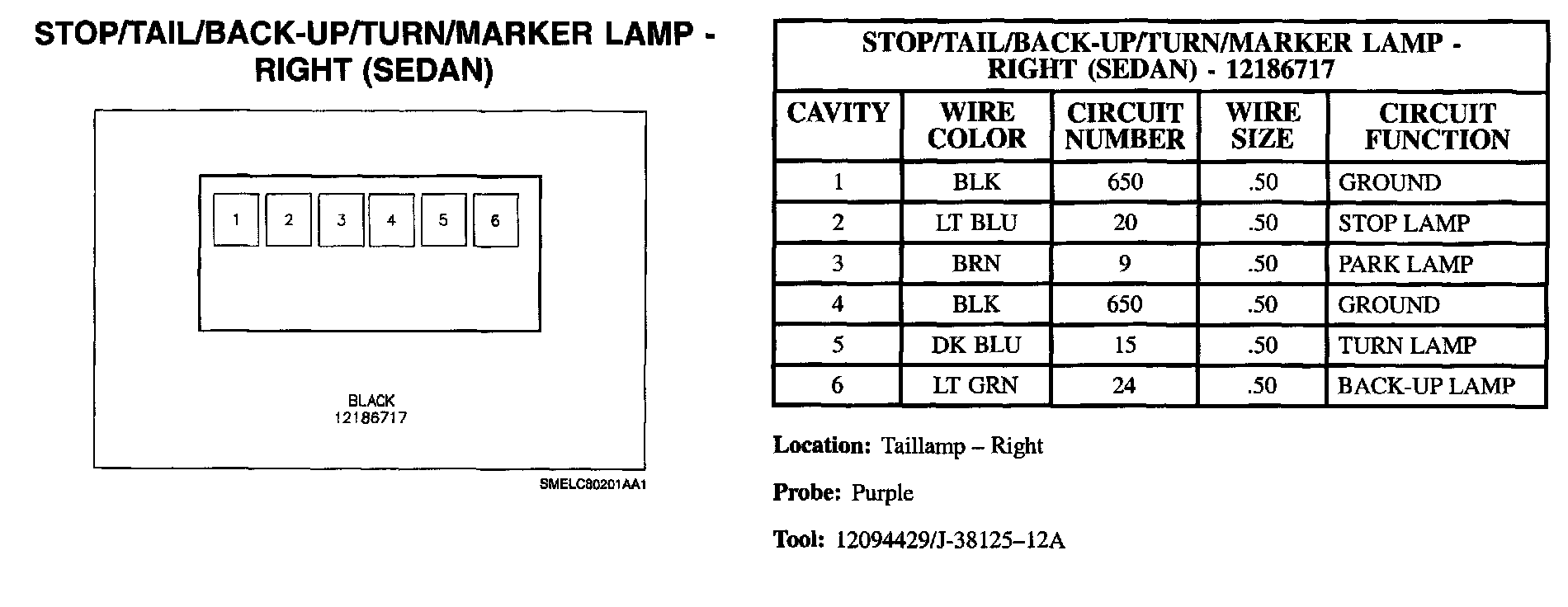

Stop/Tail/Back-Up Turn/Marker Lamp - Right (Sedan):
