Engine To I/P Inline - Engine

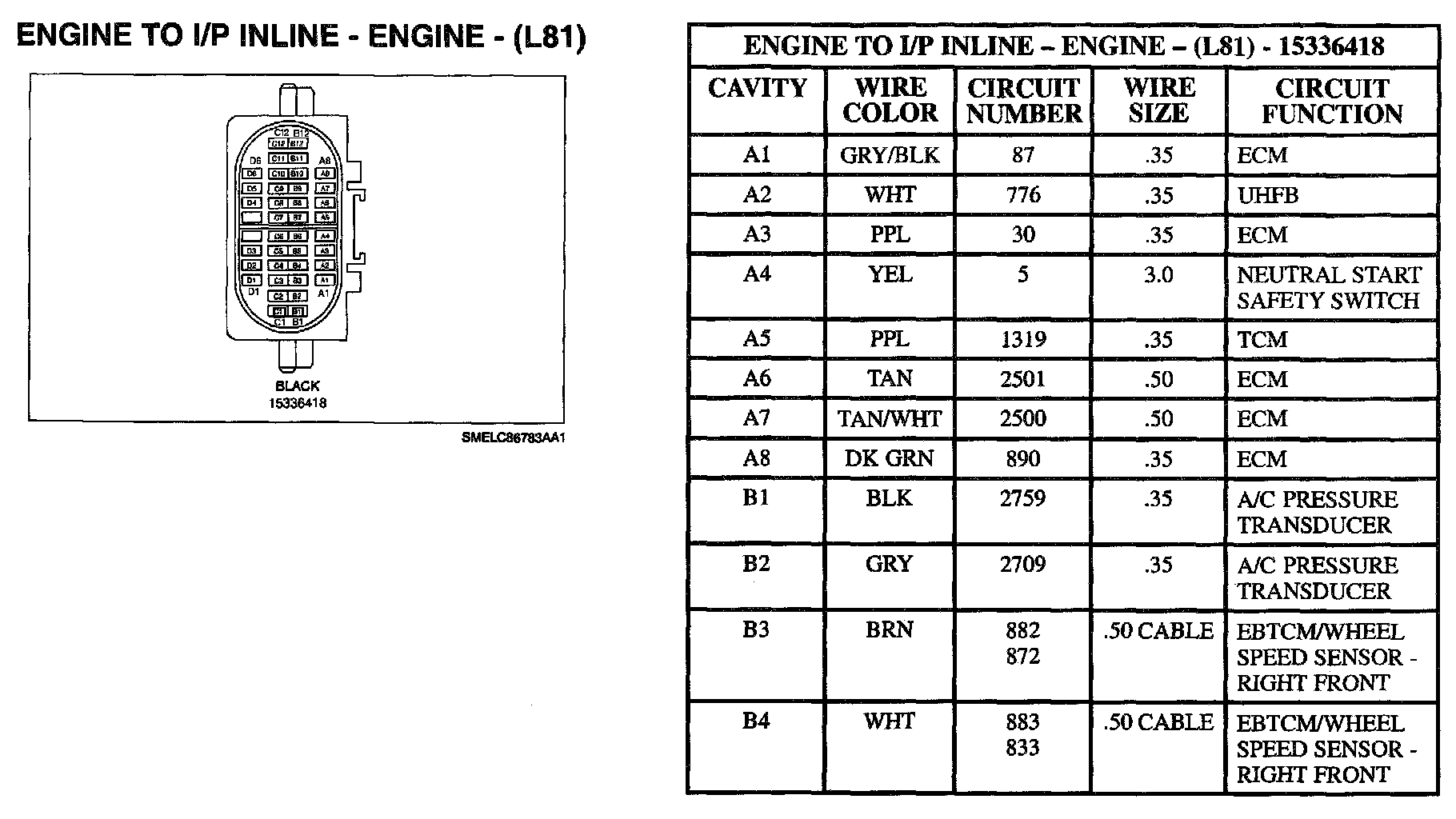

Engine To I/P Inline - Engine (Part 1 Of 2):

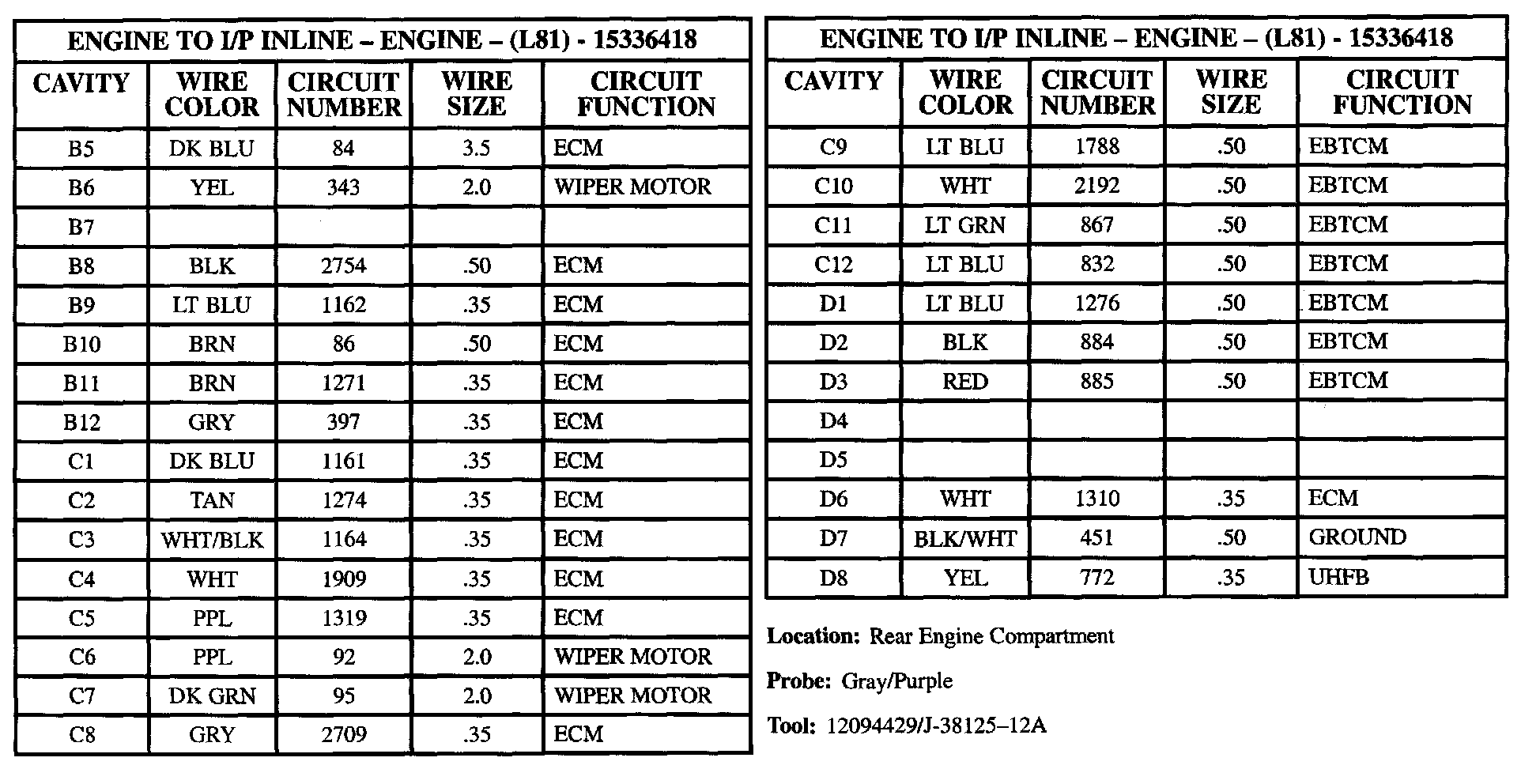

Engine To I/P Inline - Engine (Part 2 Of 2):
